6. SYSTEM DESIGN
FLOOR / CEILING TYPE


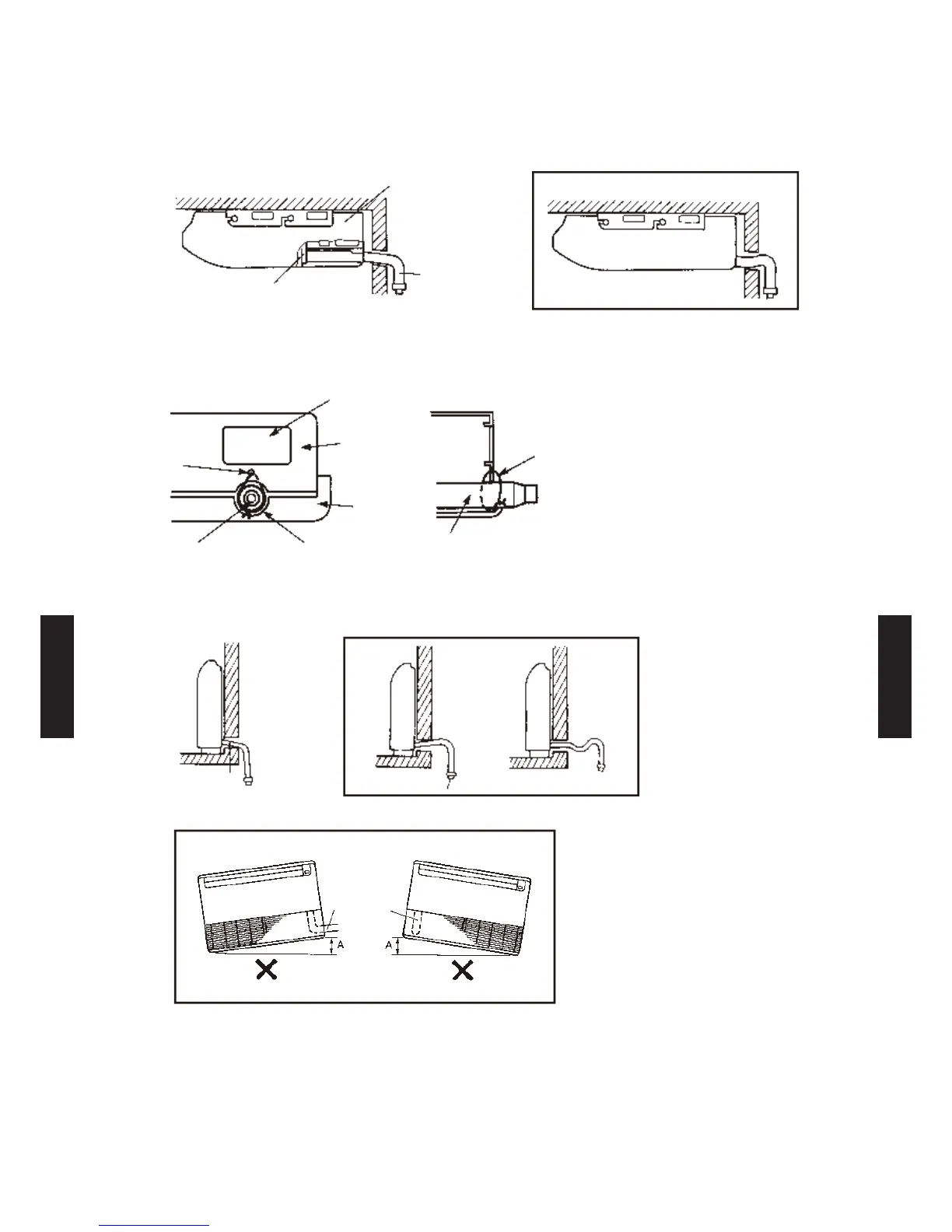

Under ceiling setting

When drain hose is arranged backward.
Secure the drain hose with the VT wire.
Floor console setting

Do not install the unit so that the drain hose side is too high.
Height A should be less than 5mm.
Remove the
hole cover
Arrange the drain hose
lower than this position
Arrange the drain hose
lower than this position



prohibited
prohibited
prohibited
OK
OK
Drain hose
Drain hose
VT wire
Base (Bottom)
Intake grille
Cut the grillePass the drain
hose through here.
Piping hole
