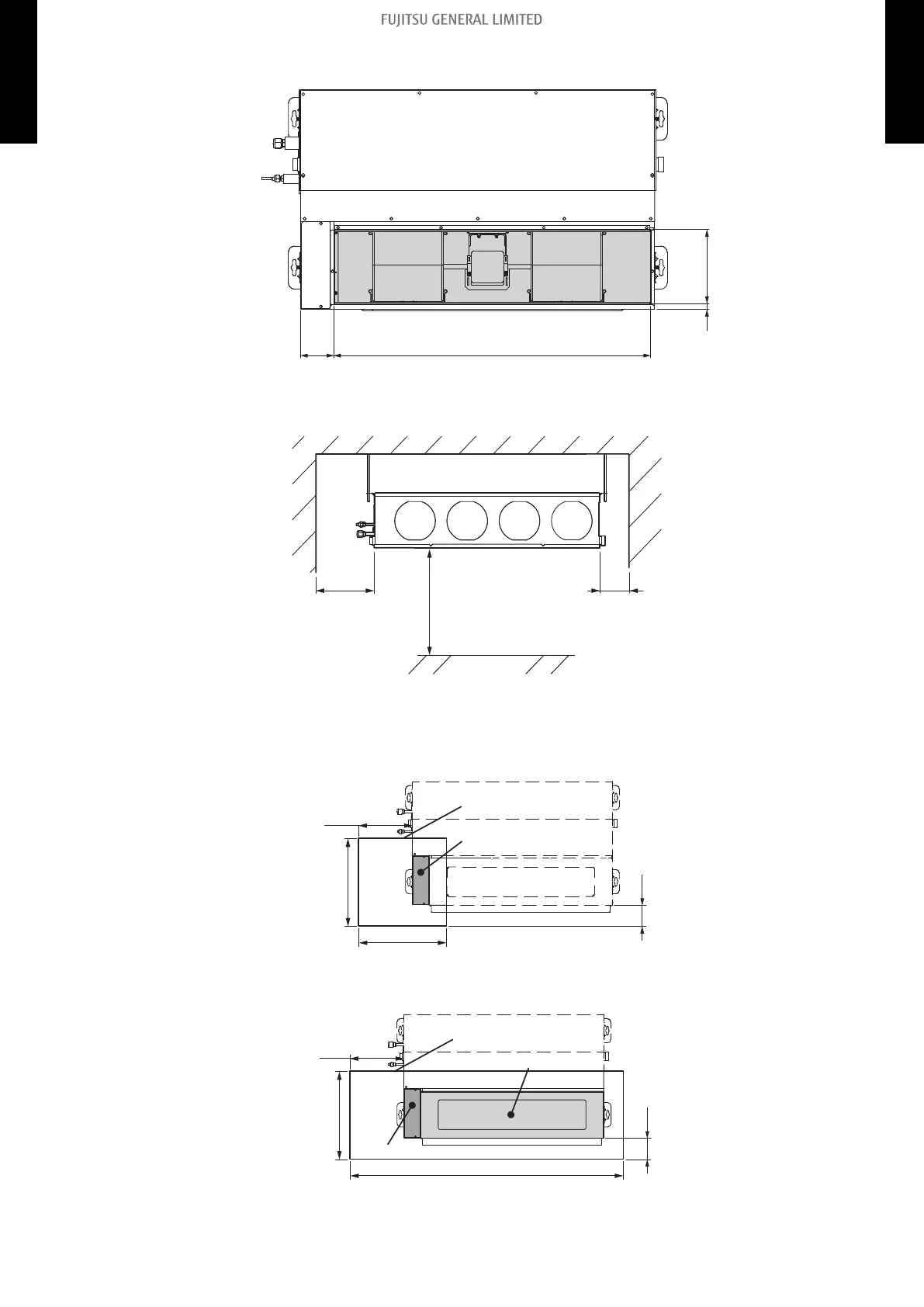

• Bottom air intake hole
Unit: mm
108 1,015
16 240
¢
Installation space requirement
Unit: mm
150 or more300 or more
Floor
2,500 or more
(When no ceiling)
¢
Maintenance space requirement
• It shall be possible to install and remove the control box.
Unit: mm
Service access
Control box
300 or more
500 or more
500 or more
100
• It shall be possible to install and remove the control box, fan units and filter.
Unit: mm
Service access
Intake panel
Control box
300 or more
500 or more
1,550 or more
100
- 11 -
3-3. Duct type 3. Dimensions
INDOOR UNITS SIMUL. MULTI-SPLIT INDOOR UNITS SIMUL. MULTI-SPLIT

Fujitsu ARXG24KMLA Specifications
