3-3. Duct type
¢
Models: ARXG22KMLA and ARXG24KMLA

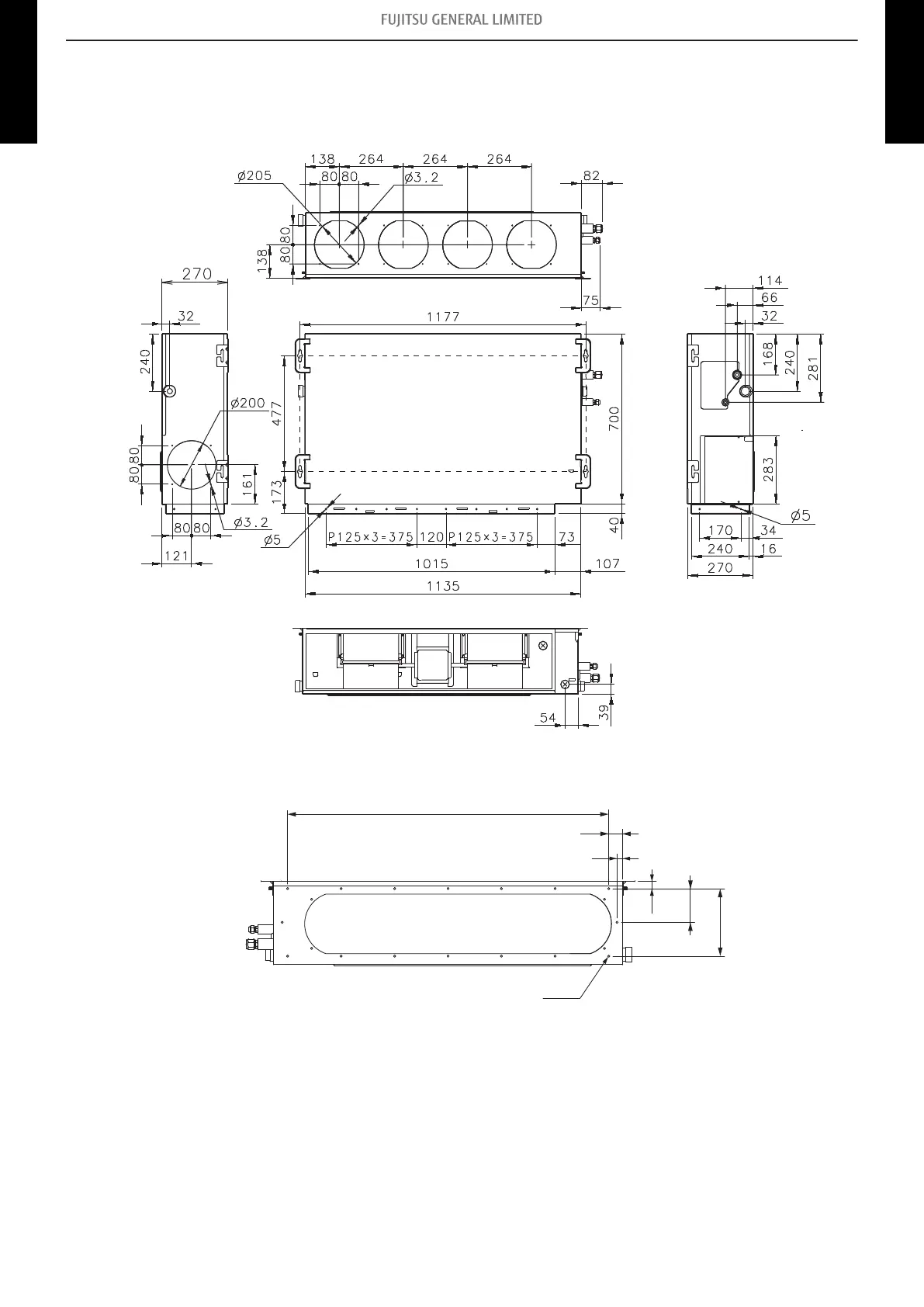

Front view
Top view
Side view (L)
Side view (R)
Rear view
Unit: mm
• When using a square duct
Unit: mm
Ø 3.2
219
46
18
P176 x 6 = 1,044
109
23
- 10 -
3-3. Duct type 3. Dimensions
