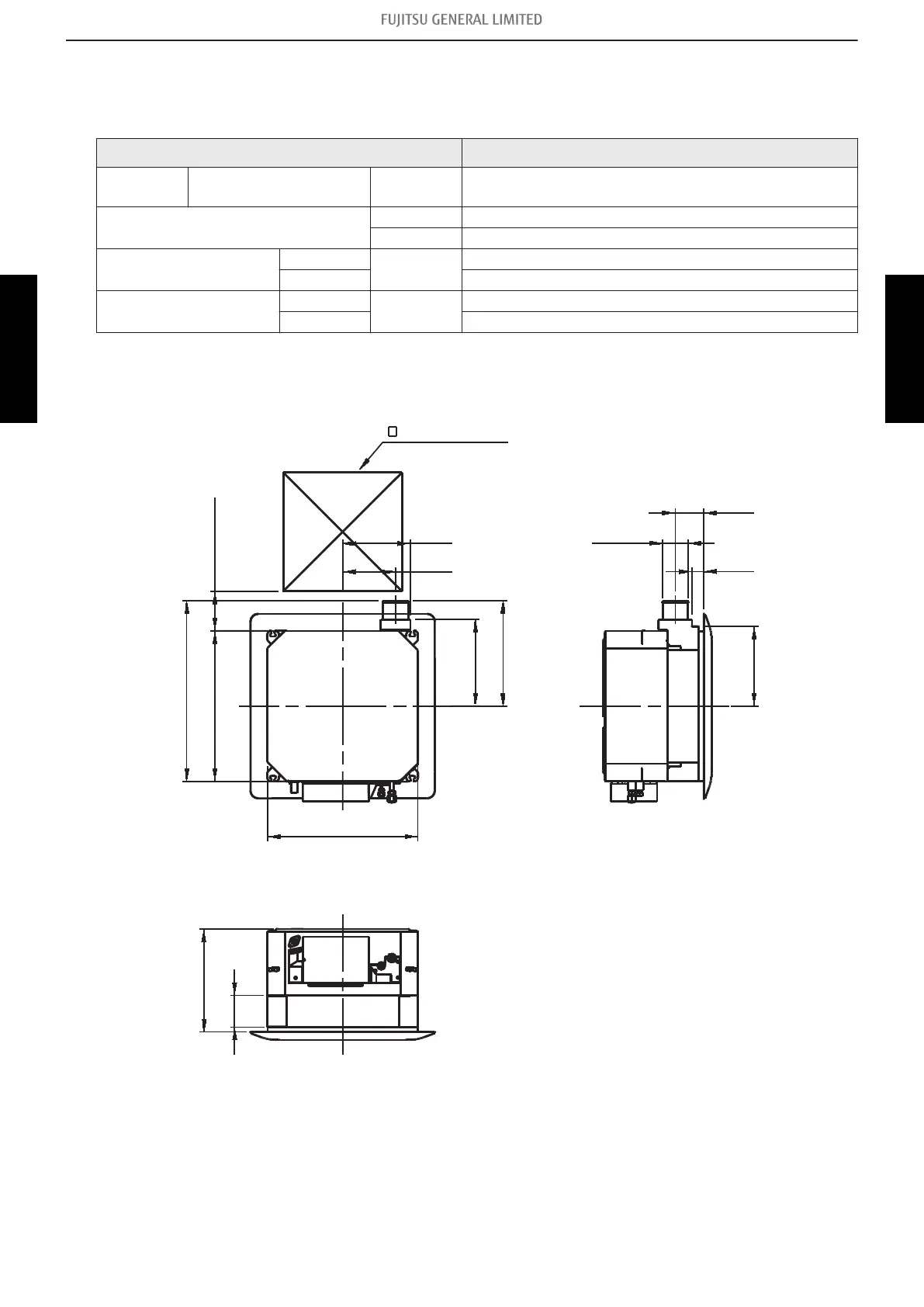

10-2. Fresh air intake kit for compact cassette type (UTZ-VXAA)
¢
Specifications
Model name UTZ-VXAA
Fresh air
intake
Max. fresh air intake
volume
%
(For High)
10
Connection duct type
mm Ø 100
Pcs 1
Dimensions (H × W × D)
Net
mm
120 × 570 × 570
Gross 165 × 585 × 585
Weight
Net
kg
3.5
Gross 5.5
¢
Dimensions
Unit: mm
570
Min. 450
108
Ø100
45
257
201
570
683
390
120
150 to 200
328
398
310
Ceiling opening space
Inspection hatch
Top view
Side view
Side view
NOTE:
When installing this kit, inspection hatch is necessary. (It is necessary when servicing.)
