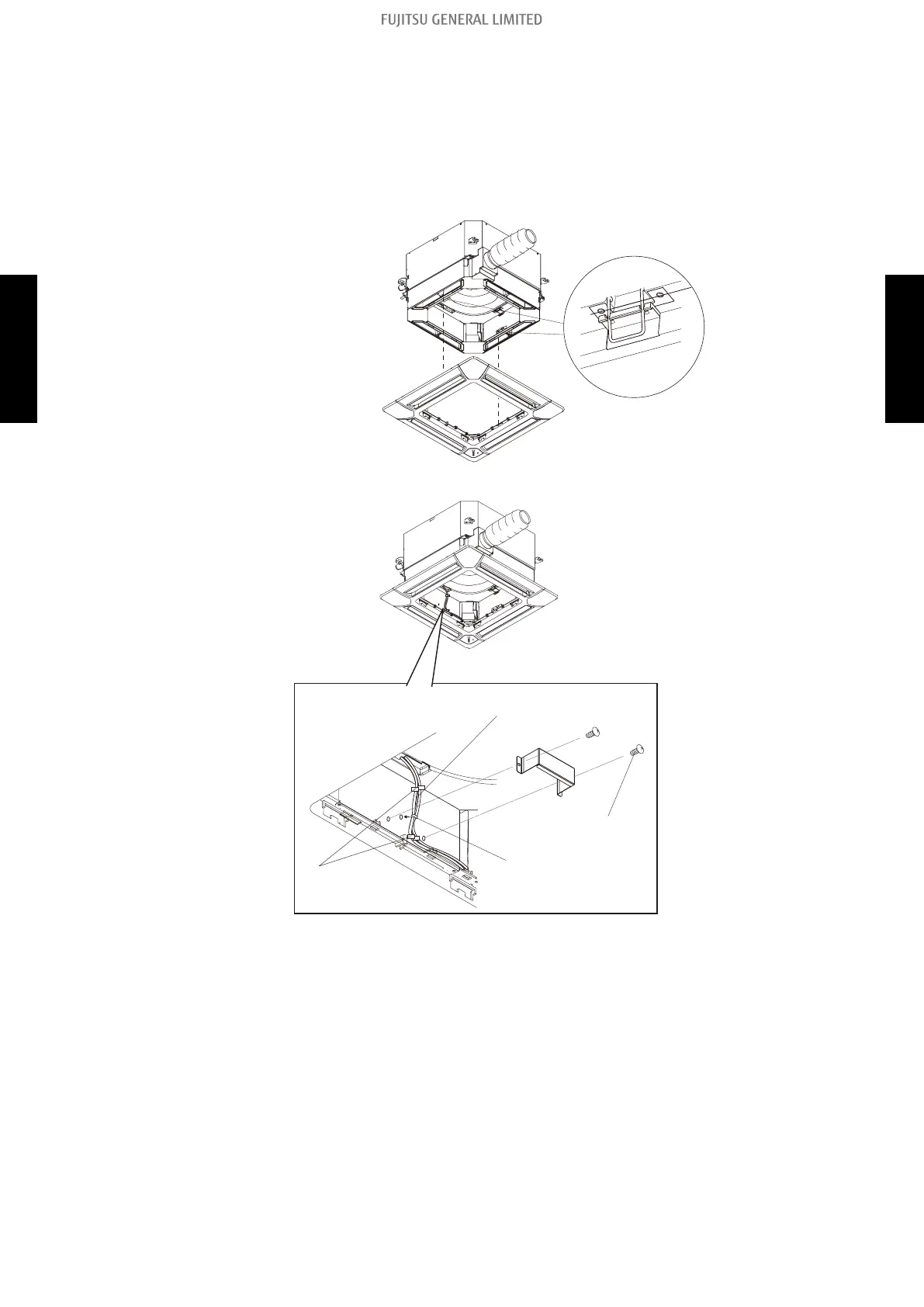

Installation of Cassette grille
1. Connect extension wire for use with louvers, or extension wire for optical receiver after provi-
sional attaching of the decoration panel.
2. Tie the wires together with the fasteners provided and insert into the hole of the Fresh air intake
kit.
3. Install the wire-cover provided on the Fresh air intake kit.
4. Install decoration panel according to the installation instruction sheet provided.
Metal fittings
Screw × 2
Cable tie
Extension wire
Connect
- 209 -
10-2. Fresh air intake kit for compact cassette type (UTZ-VXAA) 10. Optional parts installation
