Fujitsu ARXG24KMLA User Manual

¢
Model: AUXG18KVLA (3-way air outlet)

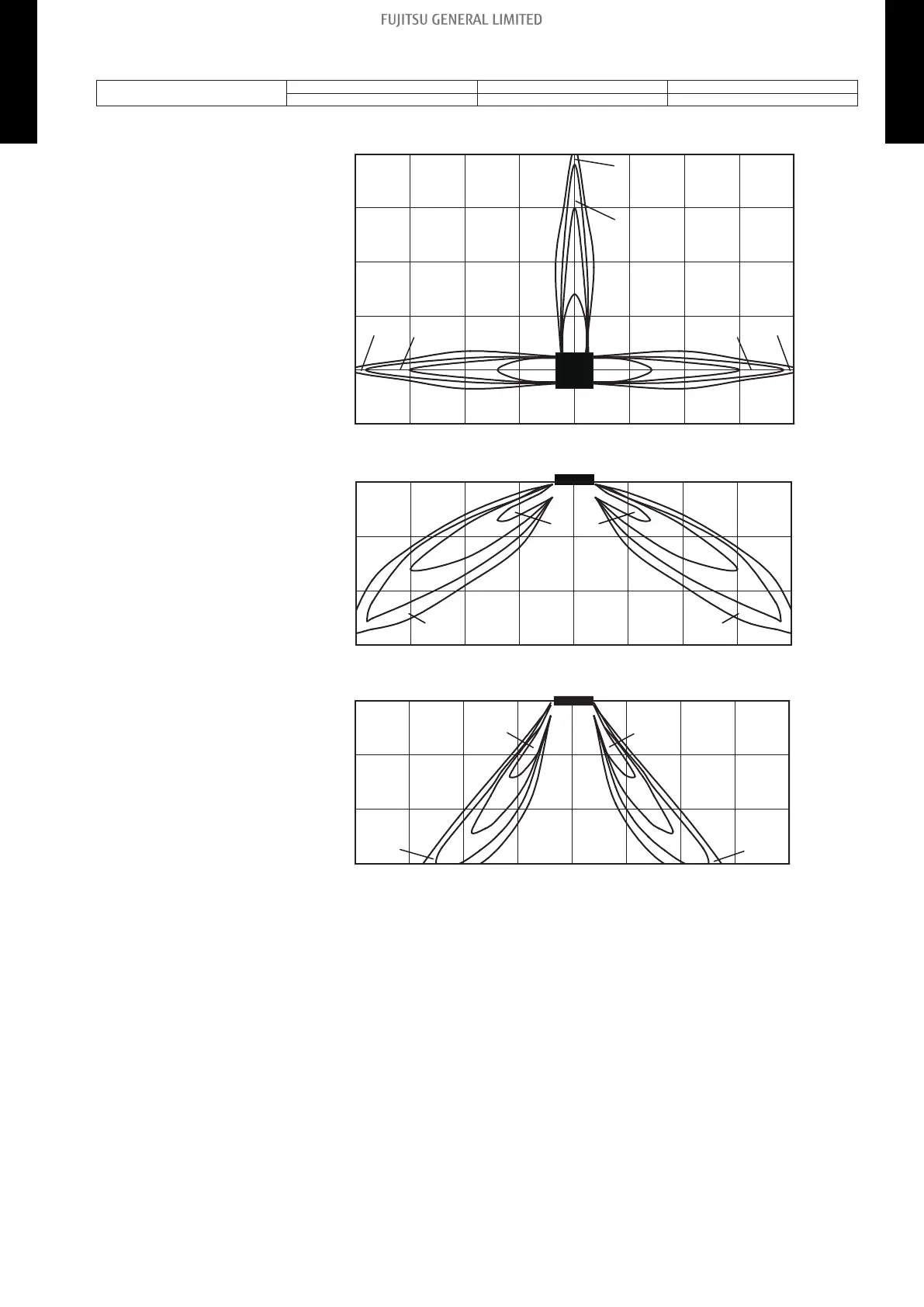

Measuring conditions
Fan speed Operation mode Ceiling mode
HIGH FAN STANDARD
Top view
Vertical airflow direction louver: Upward
4
3
2
1
0
Unit: m/s(m)
(m)
4 3 2 1 0 1 2 3 4
0.5 0.5
0.5
0.25 0.25
1 1
2 2
0.25
1
2
Side view
Vertical airflow direction louver: Upward
3
2
1
0
Unit: m/s(m)
(m)
4 3 2 1 0 1 2 3 4
0.25 0.25
0.5 0.5
1 1
2 2
Side view
Vertical airflow direction louver: Downward
3
2
1
0
Unit: m/s(m)
(m)
4 3 2 1 0 1 2 3 4
0.25 0.25
0.5 0.5
1 1
2 2
- 15 -
5-1. Compact cassette type 5. Air velocity and temperature distributions
INDOOR UNITS SIMUL. MULTI-SPLIT INDOOR UNITS SIMUL. MULTI-SPLIT

Fujitsu ARXG24KMLA Specifications

General

Brand	Fujitsu
Model	ARXG24KMLA
Category	Air Conditioner
Language	English
