Fujitsu ASU15RLS2 Service Manual

43
49
48
44
42
41
46
47
45

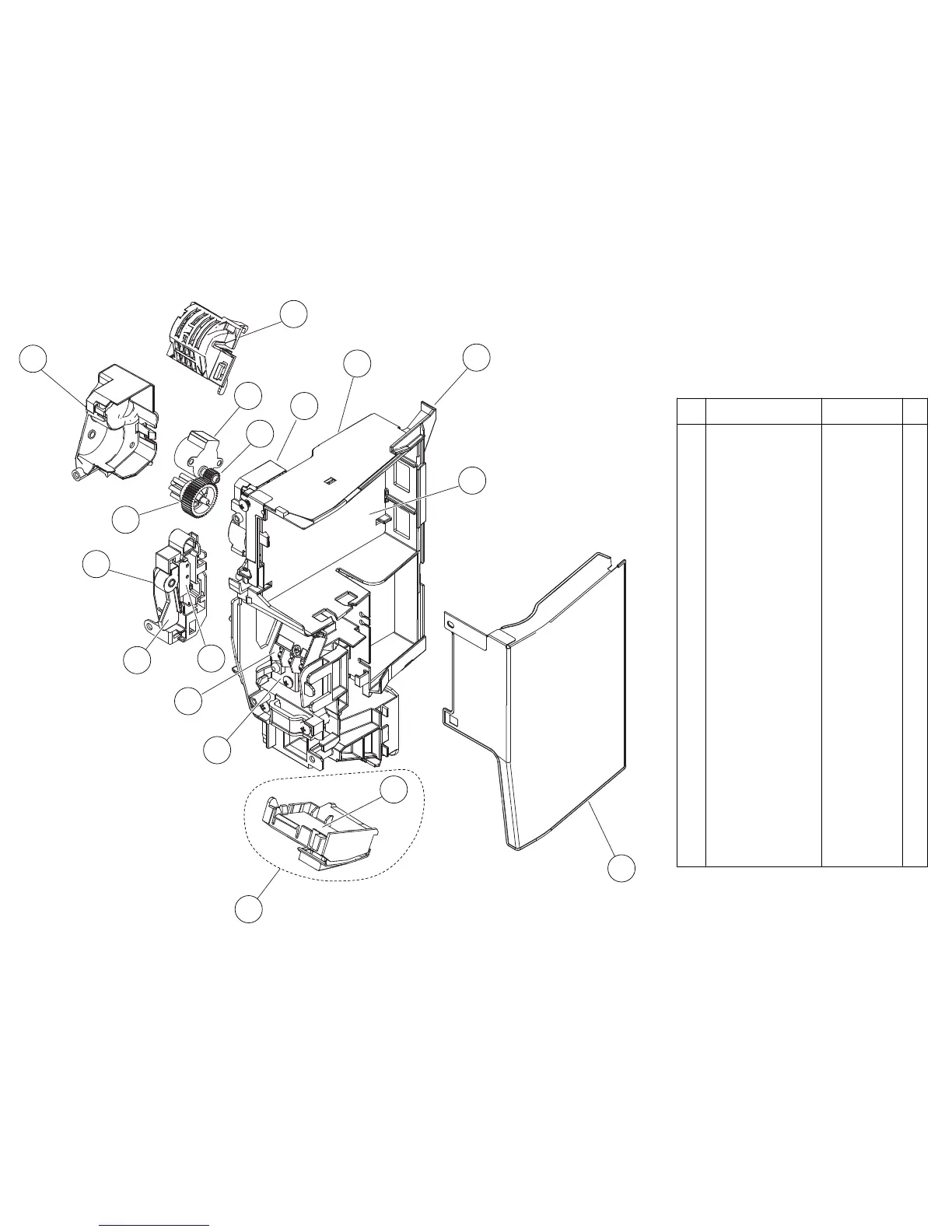

INDOOR UNIT
Control box
18
46
Terminal 990063801645
Earth Terminal 9318918007
41
Control Box
9318916003
42
Cover Shield A
9318882018
43 Box Shield Assy 9319344003
Main PCB 970871322944
49 Step Motor 9900384166
47 Room Thermistor Holder 9319068008
48 Gear Cover 9318902006
Ref. Description Part number
56
Display PCB 970882401757
-- Thermistor Assy 9900627003
Display Assy 9708823010
54 Grille Key Top 9319334004
55 Micro Switch 9900625009
51 Panel Gear 9319293004
Switch Case 9319332000
52
53
Gear Case 9318903003
50 Gear B 9319294001
2012.12.25
52
53
50
51
54
55
56
57
