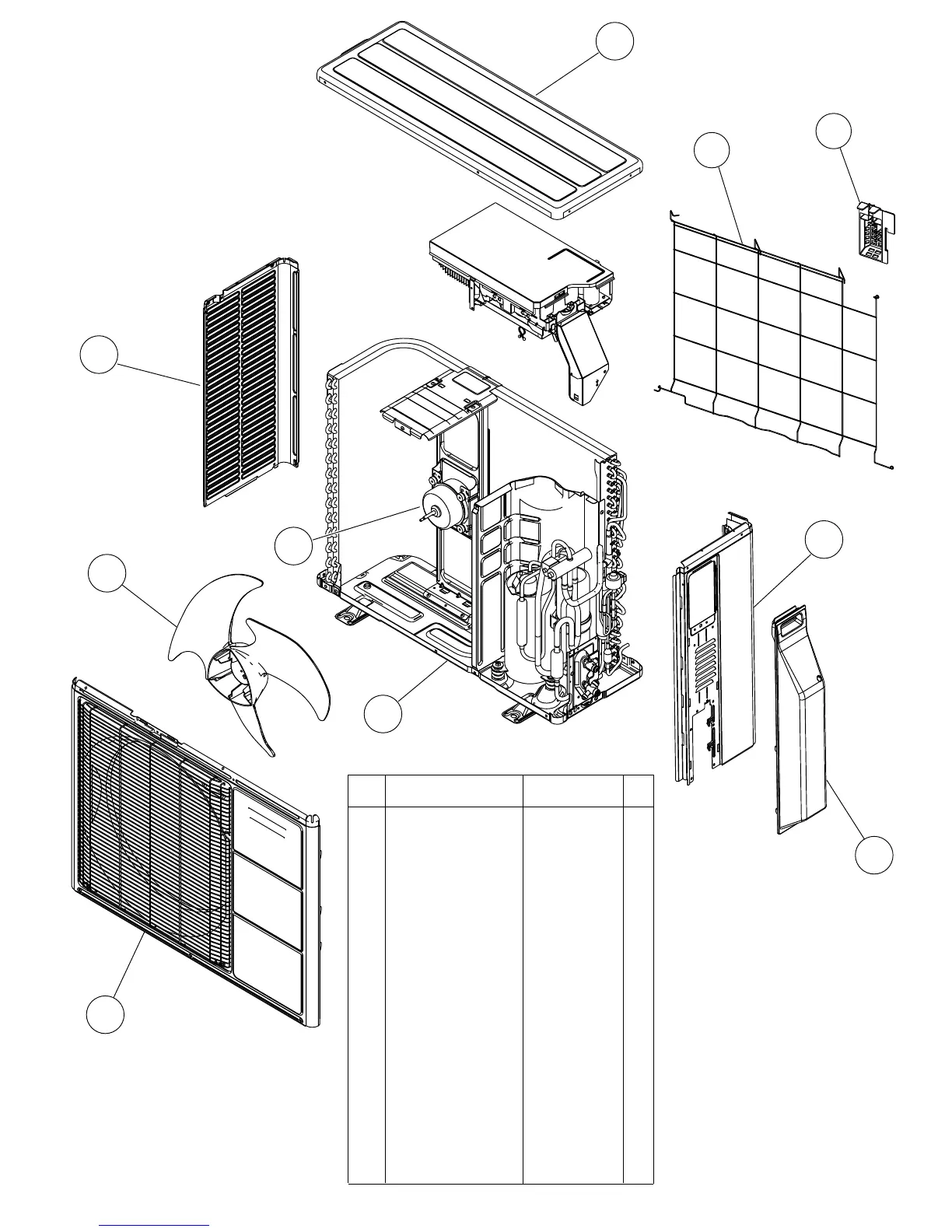

OUTDOOR UNIT
PARTS
2012.12.25 20
4 Front Panel Assy 9318463033
3 Top Panel Assy 9318464023
5
7
Cabinet Left Assy 9318461015
-- Emblem 9317903011
Switch Cover 9317692021
8 Base Assy 9316885059
6 Cabinet Right Assy 9316044050
10 Propeller Fan 9313808013
9 Fan Motor 9602724000
Ref. Description Part number
6
7
10
9
5
8
4
3
1 Thermistor Holder 9313954031
2 Protective Net 9332492002
1
2
