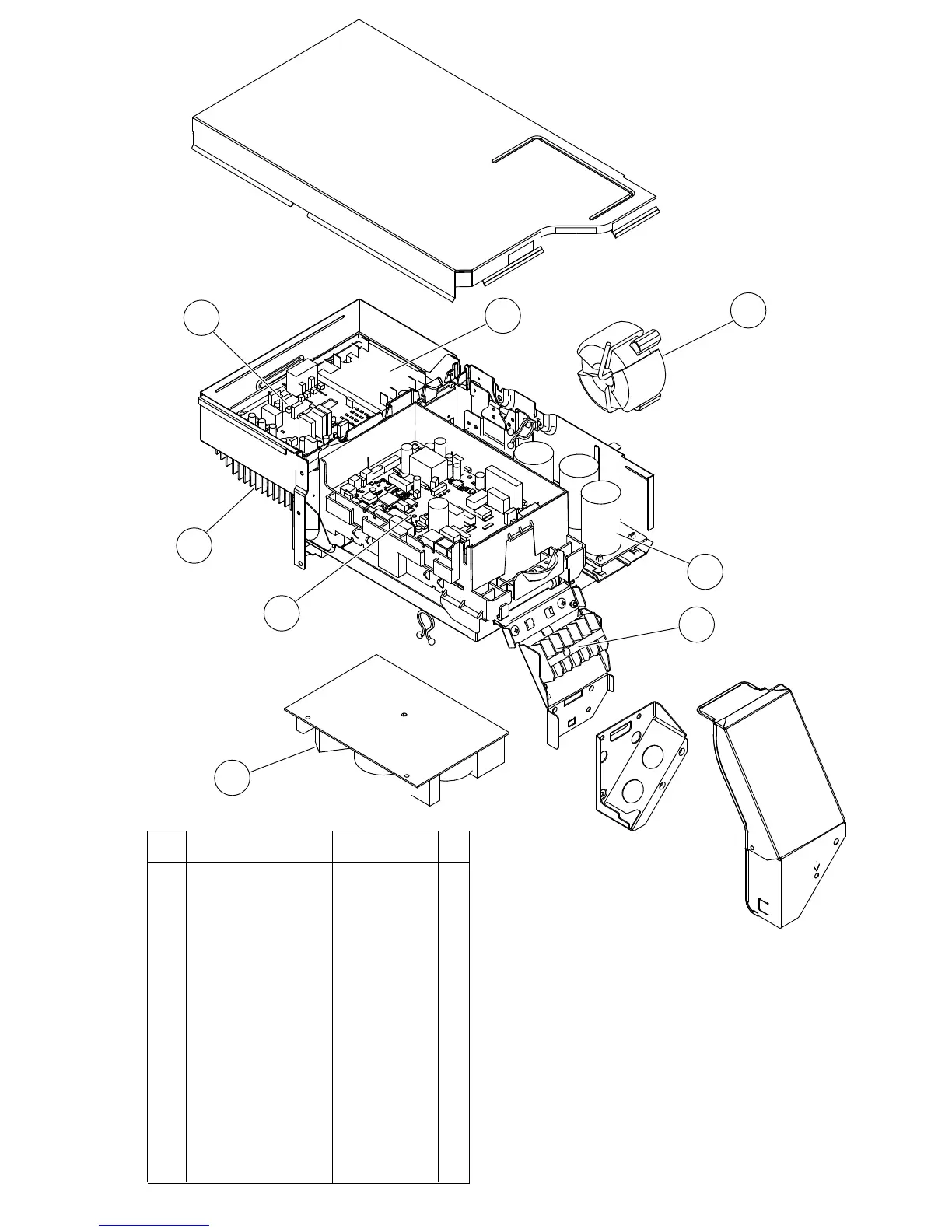

OUTDOOR UNIT
2012.12.25 22
-- Outdoor Thermistor 9900544041
35 ACTPM 9707592016
38 Terminal 6P 9900016081
36 Heatsink 9318614015
37 Choke Coil 9900223014
Capacitor PCB 9708514017
33
Main PCB
9708764030
34
-- Thermistor Assy 9900648008
31
Filter PCB
9708511283
32 Transistor PCB 9708646077
