4. Refrigerant circuit

4-1. Model: AOU18RLXFZ

- 181 -

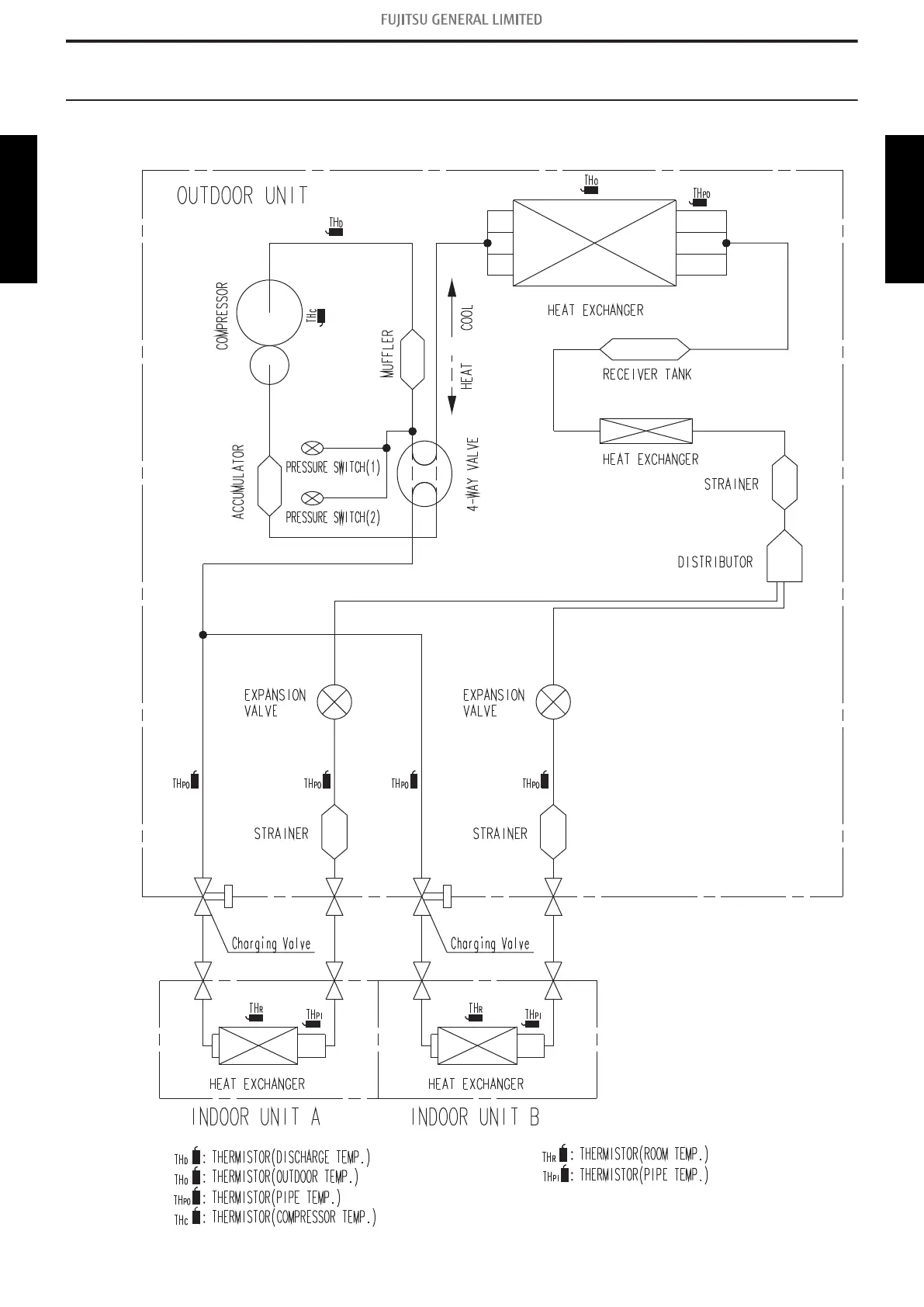

4-1. Model: AOU18RLXFZ 4. Refrigerant circuit

OUTDOOR UNIT

AOU18RLXFZ

OUTDOOR UNIT

AOU18RLXFZ
