¢ Models: ASU9RLS2, ASU12RLS2, and ASU15RLS2
Unit: in (mm)
7-7/8 (35)7-7/8 (200)
1-15/16 (49)
(3-5/16 (84)) 13-7/8 (353)
8-7/16 (214) 7 (178)
14-5/16 (364) 2-3/4 (70)
1-15/16 (49)
(11-2/16 (282))
13/16 (20)
12-1/4 (311)12-3/8 (315)

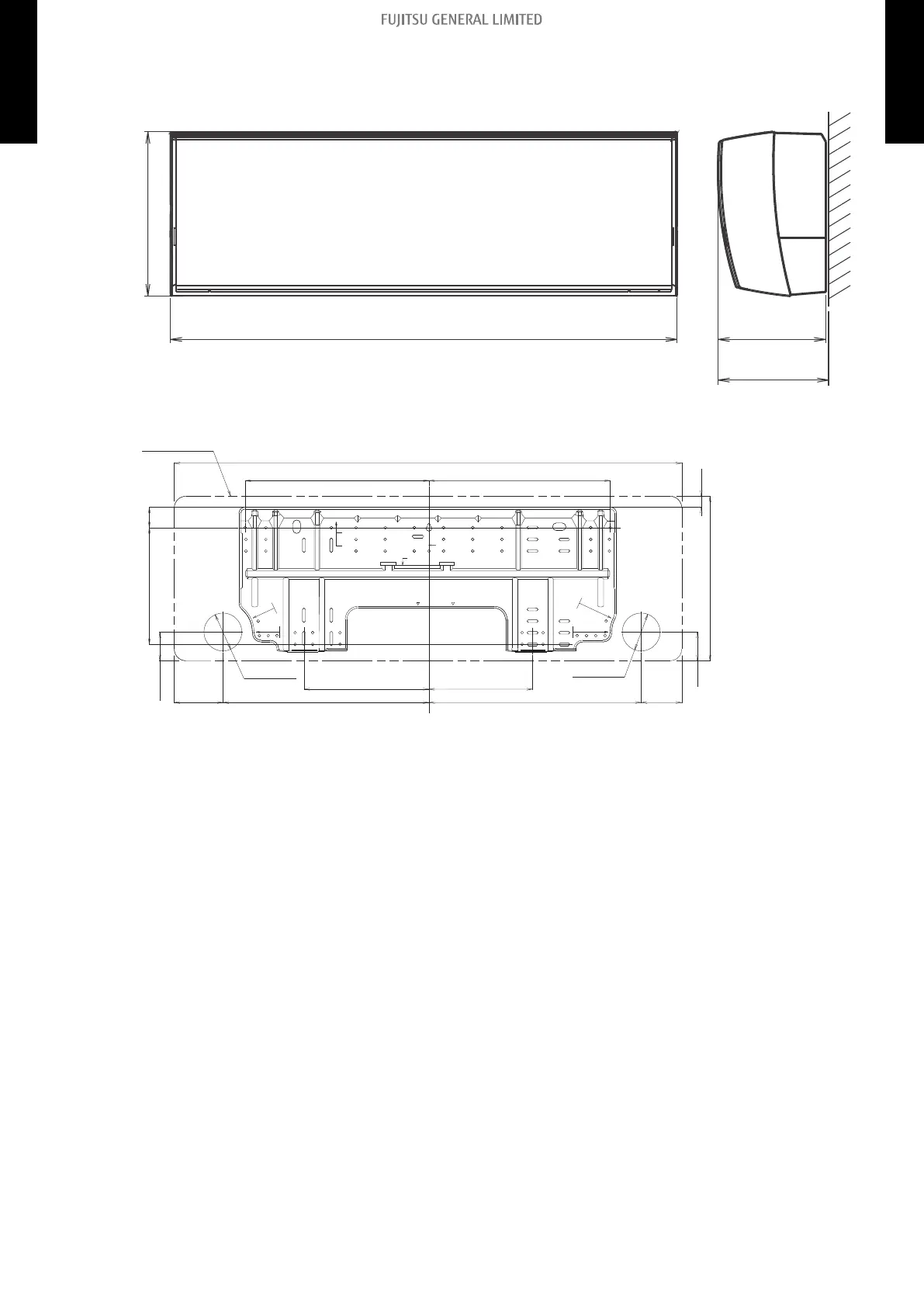

Outline of Unit
Ø2-9/16 (65)
for pipe inlet
(34-1/4 (870))
Ø2-9/16 (65)
for pipe inlet
11-1/8 (282)
7-5/16 (185)34-1/4 (870)
7-3/8(187) : Installed state
