Fujitsu ASU9RLS

-
(
01 - 18
)
-

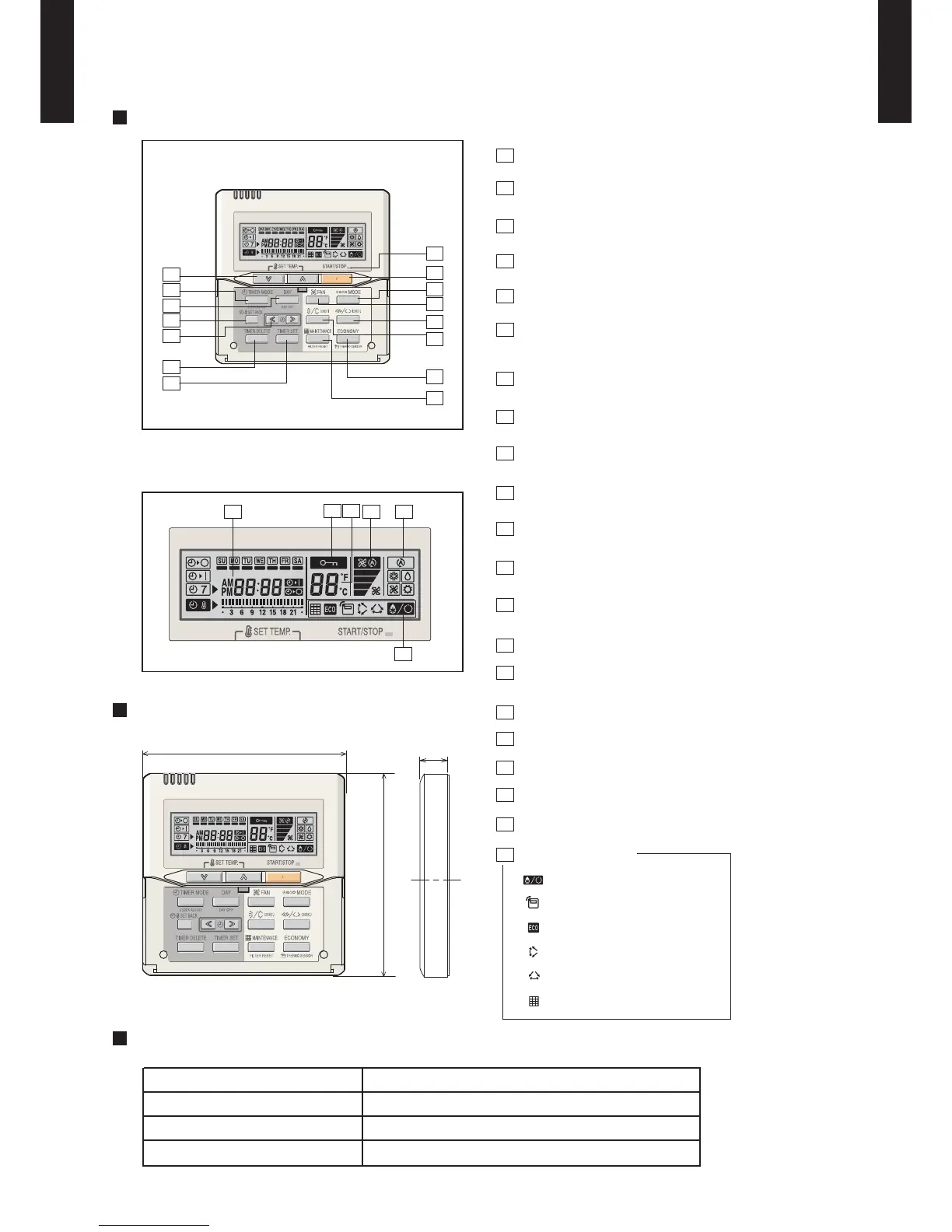

WALL MOUNTED TYPE ASU9-12RLS
WALL MOUNTED TYPE ASU9-12RLS
Display panel
DIMENSION
SPECIFICATION
4-23/32
43/64
[ Unit : in. ]
SIZE [H x W x D in. (mm)] 4-23/32 x 4-23/32 x 43/64 (120 x 120 x 17)
WEIGHT OZ.( g ) 5.6 (160)
CABLE LENGTH ft. ( m )
POWER ( V )
33 (10)
12
15
11
10
9
8
2
1
3
5
14
4
12
13
6
7
17
16
18
19
20
21
4-23/32
Front View
FUNCTIONS
Defrost display
Thermo sensor display
Economy display*
Vertical swing display
Horizontal swing display
Filter display*
1
START/STOP button
Pressed to start and stop operation.
13
Horizontal airflow direction and swing button
Push for two seconds to change the swing mode.
5
Economy button *
Turns the economy efficient mode on and off.
8
Set back button
Pressed select the set back timer.
14
Filter button*
12
Vertical airflow direction and swing button
Push for two seconds to change the swing mode.
9
Set time button
Pressed to set time.
17
Operation mode display
7
Day (DAY OFF) button
Temporarily cancels of one day timer.
6
Timer mode (CLOCK ADJUST) button*
Selects the timer mode (OFF TIMER, ON TIMER, WEEKLY TIMER)
Set the current time.
10
Time Delete button
The schedule of a weekly timer is deleted.
Mode button
Selects the operating mode(AUTO, HEAT, FAN, COOL, DRY).
3
4
Fan button
Selects the fan speed (AUTO, QUIET, LOW, MED, HIGH).
18
Fan speed display
16
Timer and clock display
Operation lamp
Lights during operation and when the timer is on.
15
20
Temperature display
21
Function display
19
Operation lock display
Set temperature button
Selects the setting temperature.
2
11
Time Set button
Sets the date, hour, minute and on-off time.
* These function are not available
