WALL MOUNTED TYPE ASU9-12RLS
WALL MOUNTED TYPE ASU9-12RLS

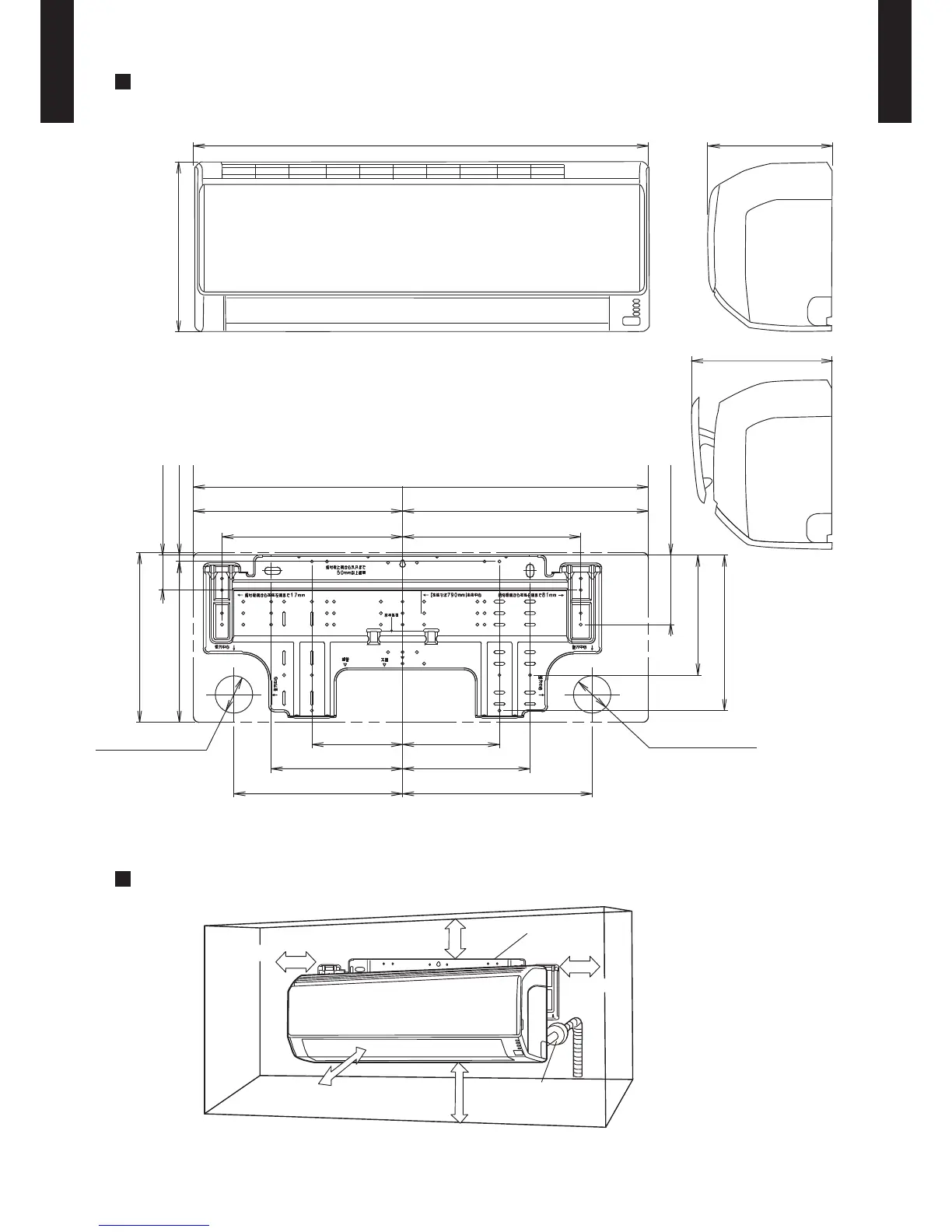

1-4. DIMENSIONS
MODEL: ASU9RLS, ASU12RLS
Unit : in (mm)
Unit : in (mm)
INSTALLATION PLACE
2-3/4"(70)
or more
Wall hook bracket
2"(50)
or more
5-1/8"(130)
or more
60"(1500)
or more
(Wall cap)
70"(1800)
or more
31-3/32"(790) 8-15/32"(215)
9-5/8"(244)
11-5/8"(295)
31-3/32"(790)
14-9/32"(363)
12-3/8(314) 12-7/32(310)
6-3/16(157)
2-9/16Φ(65)
for pipe Inlet
2-9/16Φ(65)
for pipe Inlet
6-21/32(169)
8-31/32(228) 8-3/4(222)
11-17/32(293) 13(330)
7/16(11)11-1/32(280)
4-3/4(121)
8-3/16(208)
10-5/8(270)
2-3/8(60)
11-5/8(295)
16-7/32"(428)
