WALL MOUNTED TYPE ASU9-12RLS
WALL MOUNTED TYPE ASU9-12RLS

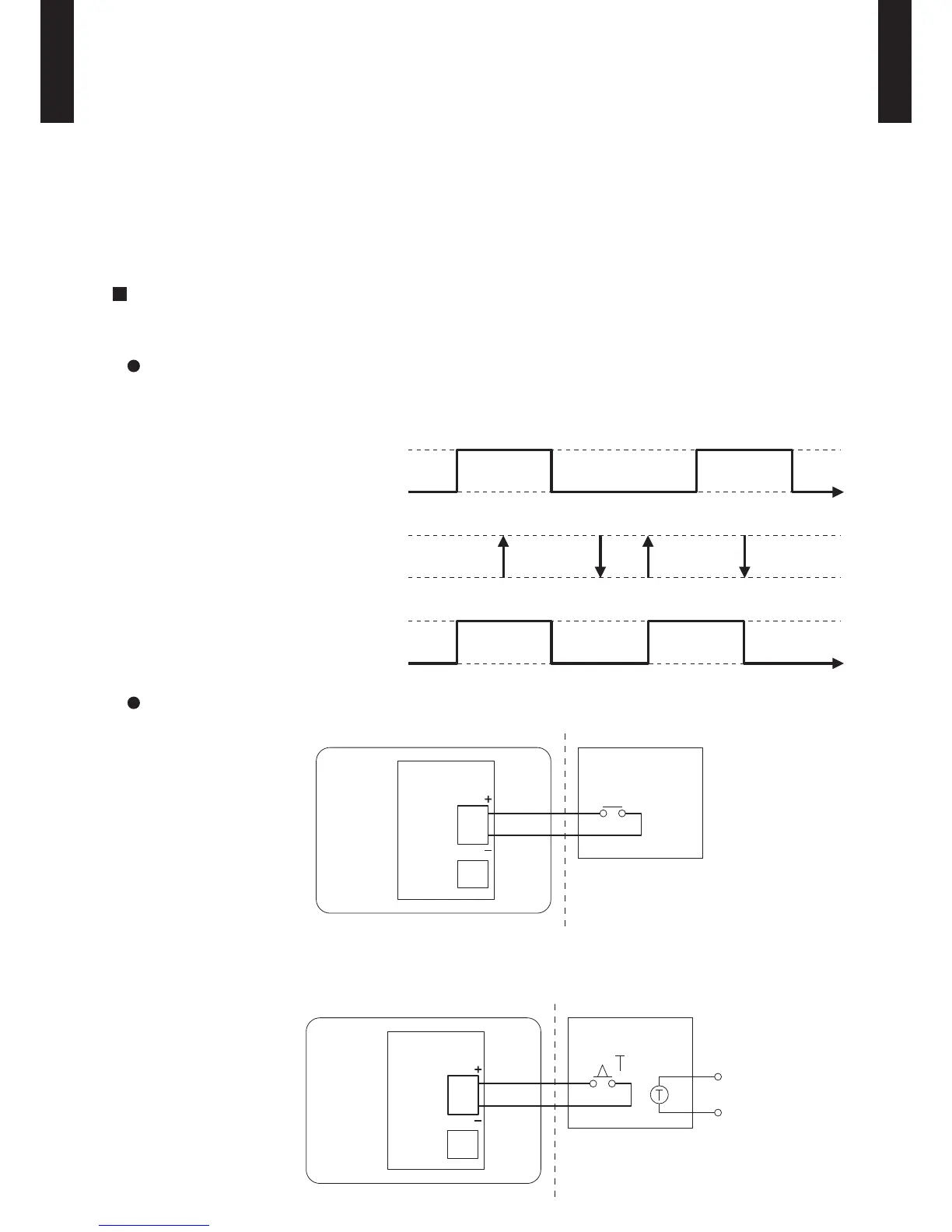

1-11-2. EXTERNAL CONNECT KIT
• You can control air conditioner ON / OFF operation by external input.
• No voltage ON/OFF continuous signal.
• For remote operation
•
For external timer operation
• Contact capacity : DC12V 10mA
ON
OFF
ON ONOFF OFF
OPERATION
External input signal
Remote controller signal
Indoor unit status
STOP
Installation example
Orange
External
input
External
output
1
3
Yellow
Indoor unit External device
( Field supply )
Print circuit
board
Orange
External
input
External
output
1
3
Yellow
Indoor unit External device
( Field supply )
Print circuit
board
Signal specification
This kit allows to operate the air conditioner, such as stopping and starting, using an external
device, and output the operation status of the air conditioner.
• Only operation and stop signals will be output.
Use the remote control to check the operation mode, temperature, and airflow.
Check the error information on the display area of the main unit.
• Operation mode, temperature, and airflow cannot be set by external input. Use the remote
controller to set.
• If the air-conditioner is activated by external input, it will operate in the settings before stop.
To change the settings, use the remote controller.
CONTROL INPUT SETTING
