Fujitsu ASU9RLS

-
(
02 - 02
)
-
OUTDOOR UNIT AOU9-12RLS
OUTDOOR UNIT AOU9-12RLS

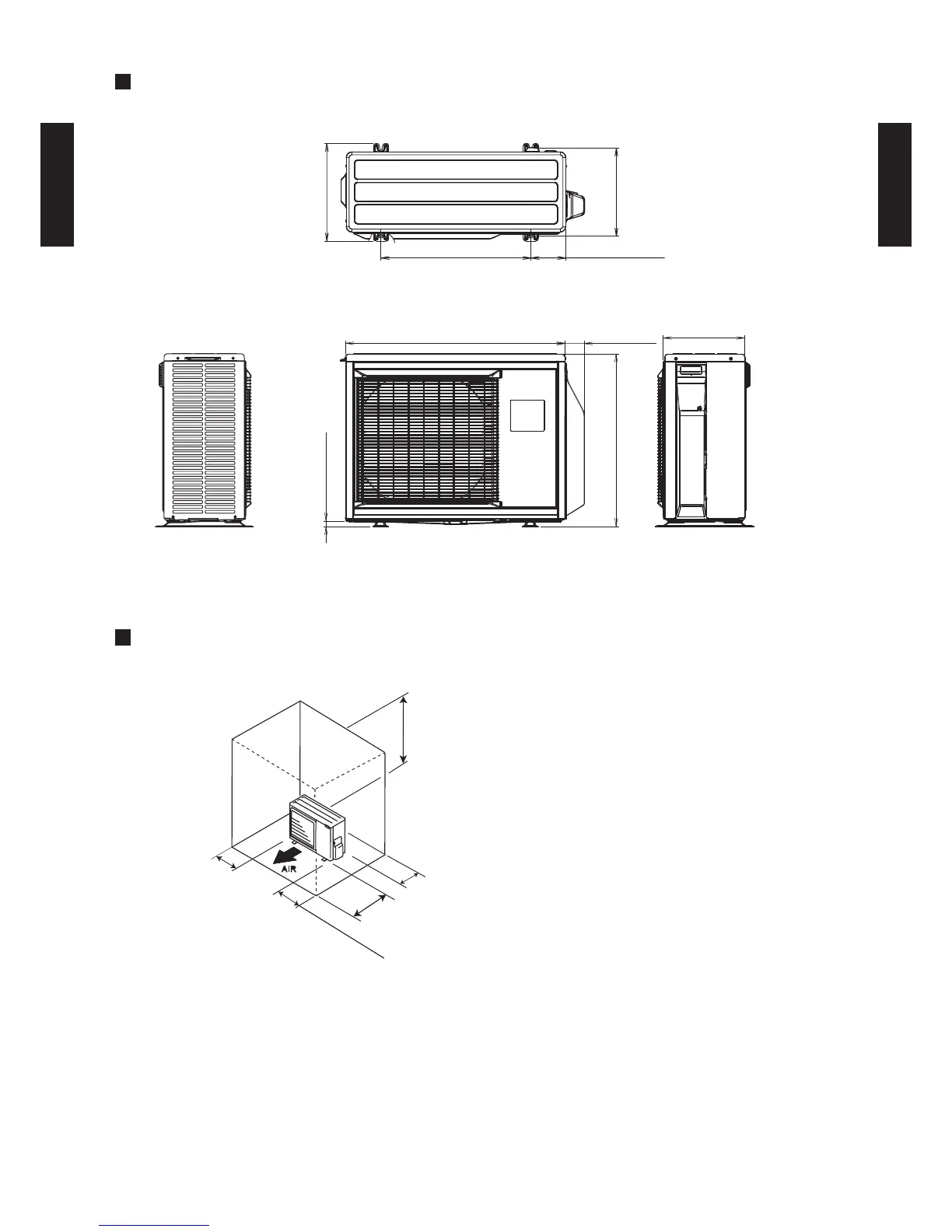

2-2. DIMENSIONS
MODEL: AOU9RLS, AOU12RLS
Unit : in. (mm)
Unit : in. (mm)
MOUNTING POSITION
If the space is larger that is stated, the condition will be the same as that are no obstacles.
24" (600) or more
4" (100) or more
11-13/16"(300) or more
4" (100) or more
11-13/16"(300) or more
(Service space)
Side viewFront view
31-3/32(790)
24-13/32(620)
11-23/32(298)
Side view
Top view
13-29/32"(353)
21-1/4"(540) 4-29/32"(125)
12-19/32"(320)
2-5/8(68)
25/32(19.5)
