Fujitsu ASU9RLS

-
(
02 - 05
)
-
OUTDOOR UNIT AOU9-12RLS
OUTDOOR UNIT AOU9-12RLS

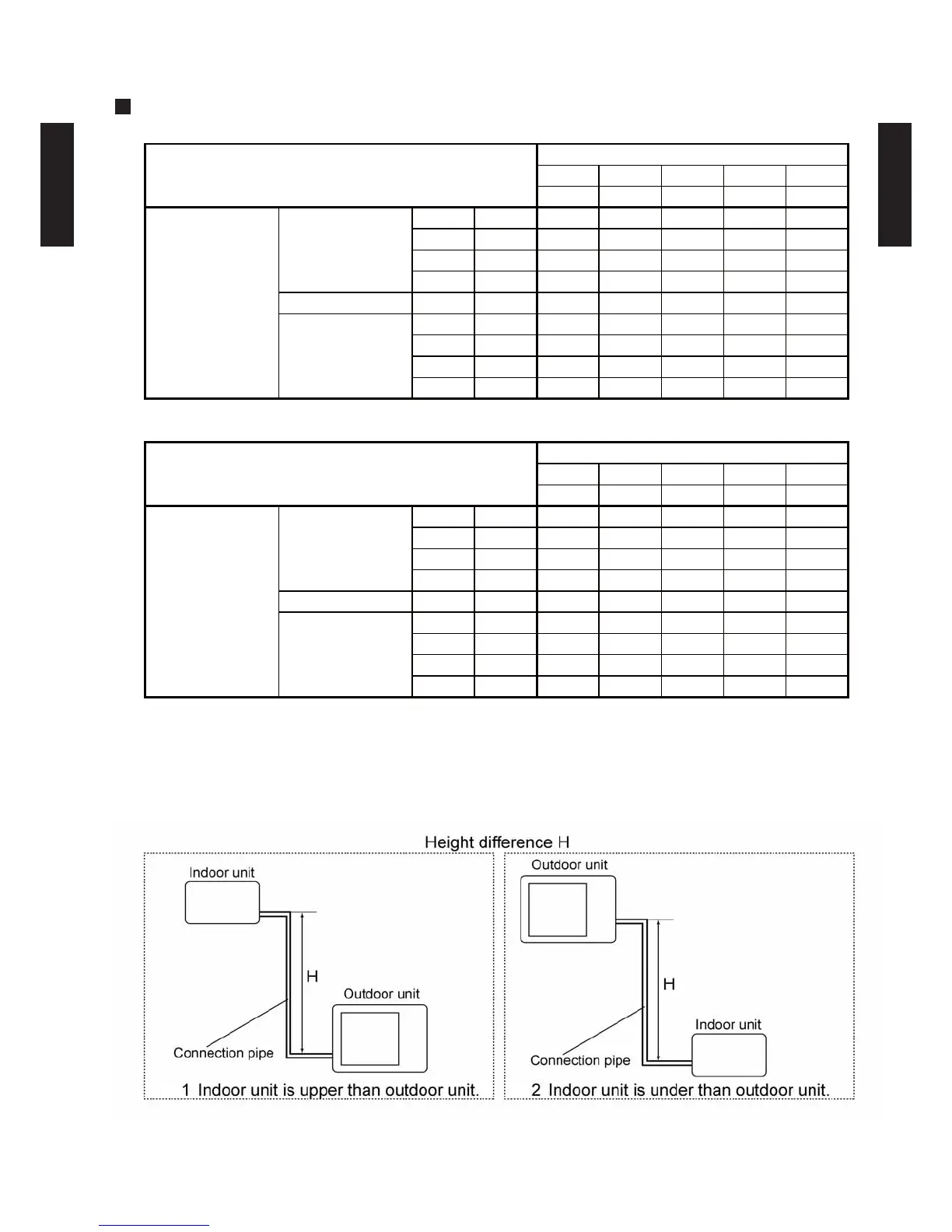

2-5. CAPACITY COMPENSATION RATE FOR PIPE LENGTH
AND HEIGHT DIFERENCE
MODEL: AOU9RLS

5m 7.5m 10m 15m 20m
17ft. 25ft. 33ft. 50ft. 67ft.
15m 50ft. - - - 0.877 0.874
10m 33ft. - - 0.956 0.891 0.888
7.5m 25ft. - 0.988 0.960 0.895 0.892
5m 17ft. 1.017 0.992 0.964 0.899 0.895
0m 0ft. 1.025 1.000 0.971 0.906 0.902
-5m -17ft. 1.025 1.000 0.971 0.906 0.902
-7.5m -25ft. - 1.000 0.971 0.906 0.902
-10m -33ft. - - 0.971 0.906 0.902
-15m -50ft. - - - 0.906 0.902
COOLING
Pipe length
1
Indoor unit is upper
than outdoor unit.
2
Indoor unit is under
than outdoor unit
Height difference H
1
Indoor unit is upper
than outdoor unit.
2
Indoor unit is under
than outdoor unit
5m 7.5m 10m 15m 20m
17ft. 25ft. 33ft. 50ft. 67ft.
15m 50ft. - - - 0.933 0.925
10m 33ft. - - 0.981 0.933 0.925
7.5m 25ft. - 1.000 0.981 0.933 0.925
5m 17ft. 1.017 1.000 0.981 0.933 0.925
0m 0ft. 1.017 1.000 0.981 0.933 0.925
-5m -17ft. 1.012 0.995 0.976 0.928 0.920
-7.5m -25ft. - 0.993 0.974 0.926 0.918
-10m -33ft. - - 0.971 0.923 0.916
-15m -50ft. - - - 0.914 0.906
HEATING
Pipe length
Height difference H
