Fujitsu ASU9RLS

-
(
02 - 06
)
-
OUTDOOR UNIT AOU9-12RLS
OUTDOOR UNIT AOU9-12RLS

1
Indoor unit is upper
than outdoor unit.
2
Indoor unit is under
than outdoor unit
5m 7.5m 10m 15m 20m
17ft. 25ft. 33ft. 50ft. 67ft.
50ft. - - - 0.877 0.874
33ft. - - 0.956 0.891 0.888
25ft. - 0.988 0.960 0.895 0.892
17ft. 1.017 0.992 0.964 0.899 0.895
0ft. 1.025 1.000 0.971 0.906 0.902
-17ft. 1.025 1.000 0.971 0.906 0.902
-25ft. - 1.000 0.971 0.906 0.902
-33ft. - - 0.971 0.906 0.902
-50ft. - - - 0.906 0.902

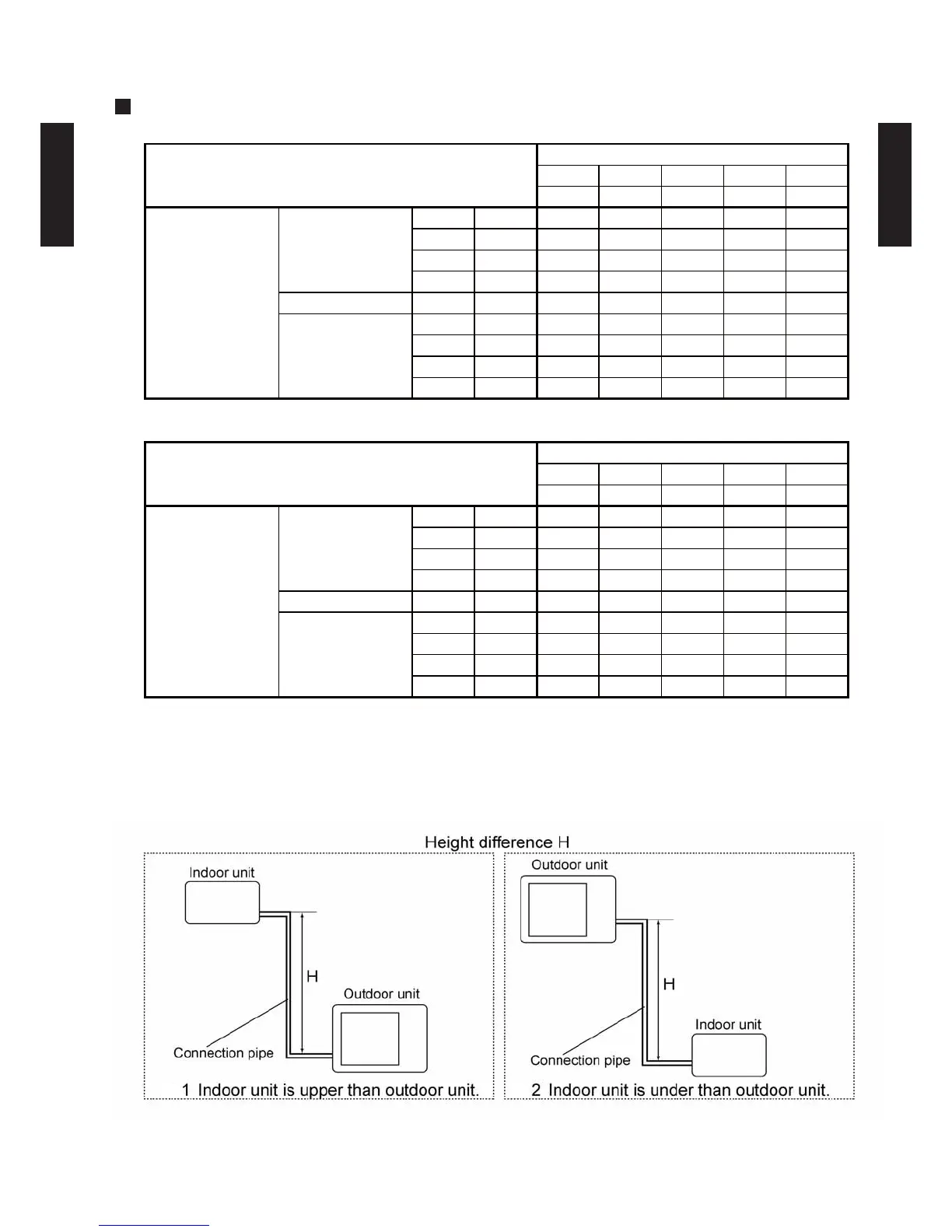

Pipe length
COOLING
Height difference H
1
Indoor unit is upper
than outdoor unit.
2
Indoor unit is under
than outdoor unit
5m 7.5m 10m 15m 20m
17ft. 25ft. 33ft. 50ft. 67ft.
50ft. - - - 0.933 0.925
33ft. - - 0.981 0.933 0.925
25ft. - 1.000 0.981 0.933 0.925
17ft. 1.017 1.000 0.981 0.933 0.925
0ft. 1.017 1.000 0.981 0.933 0.925
-17ft. 1.012 0.995 0.976 0.928 0.920
-25ft. - 0.993 0.974 0.926 0.918
-33ft. - - 0.971 0.923 0.916
-50ft. - - - 0.914 0.906
Pipe length
Height difference H
HEATING
MODEL: AOU12RLS
15m
10m
7.5m
5m
0m
-5m
-7.5m
-10m
-15m
15m
10m
7.5m
5m
0m
-5m
-7.5m
-10m
-15m
