WALL MOUNTED TYPE ASU9-12RLS
WALL MOUNTED TYPE ASU9-12RLS

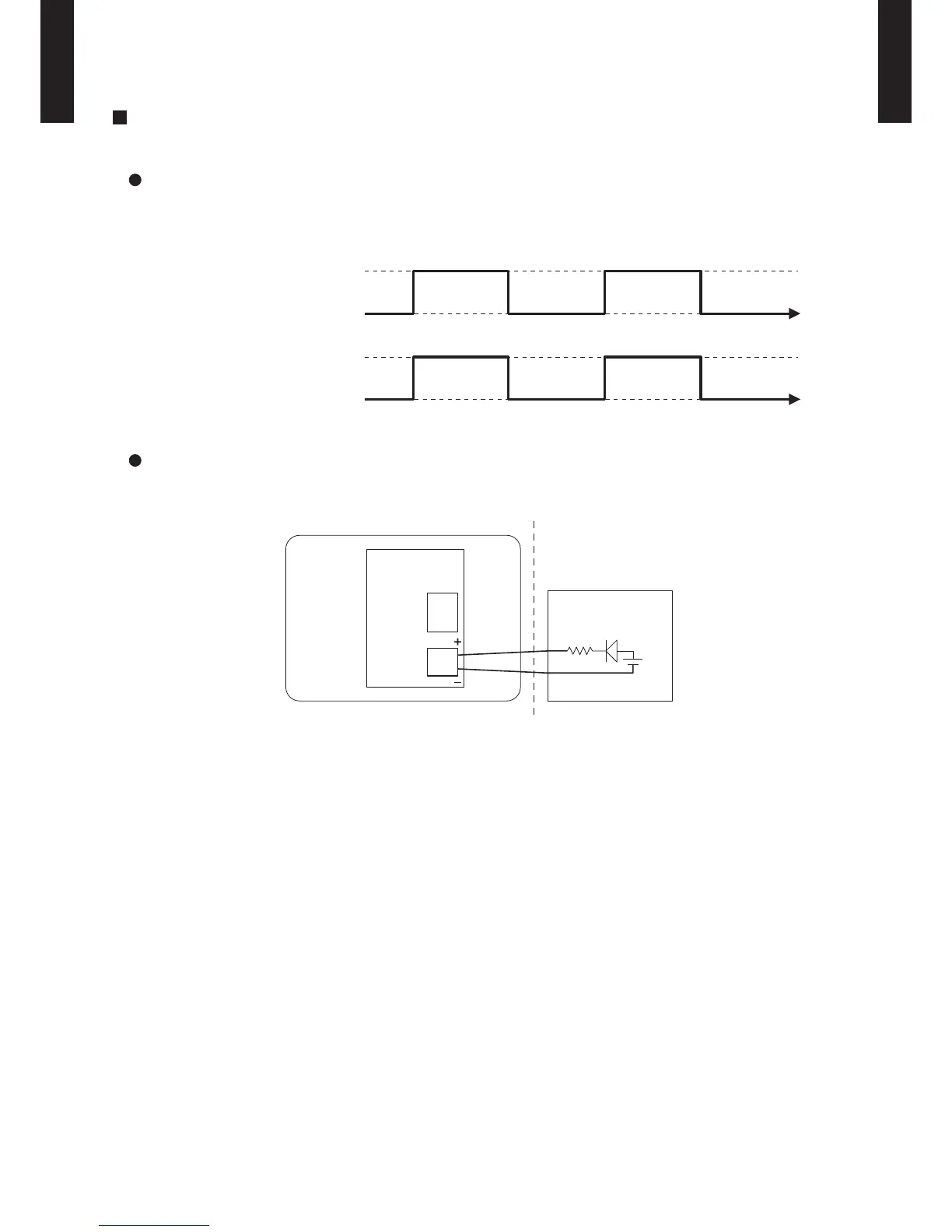

OPERATING OUTPUT SETTING
For operation display
• No voltage contact.
• Contact capacity : Max. DC24V 10mA to 1A or less
SHORT
External output signal
Indoor unit status
OPEN
OPERATION
STOP
Installation example
Blue
External
input
Vc
Ic
External
output
1
2
Purple
Indoor unit
External device
( Field supply )
Print circuit
board
• You can display air conditioner ON / OFF operation by external output.
Signal specification
