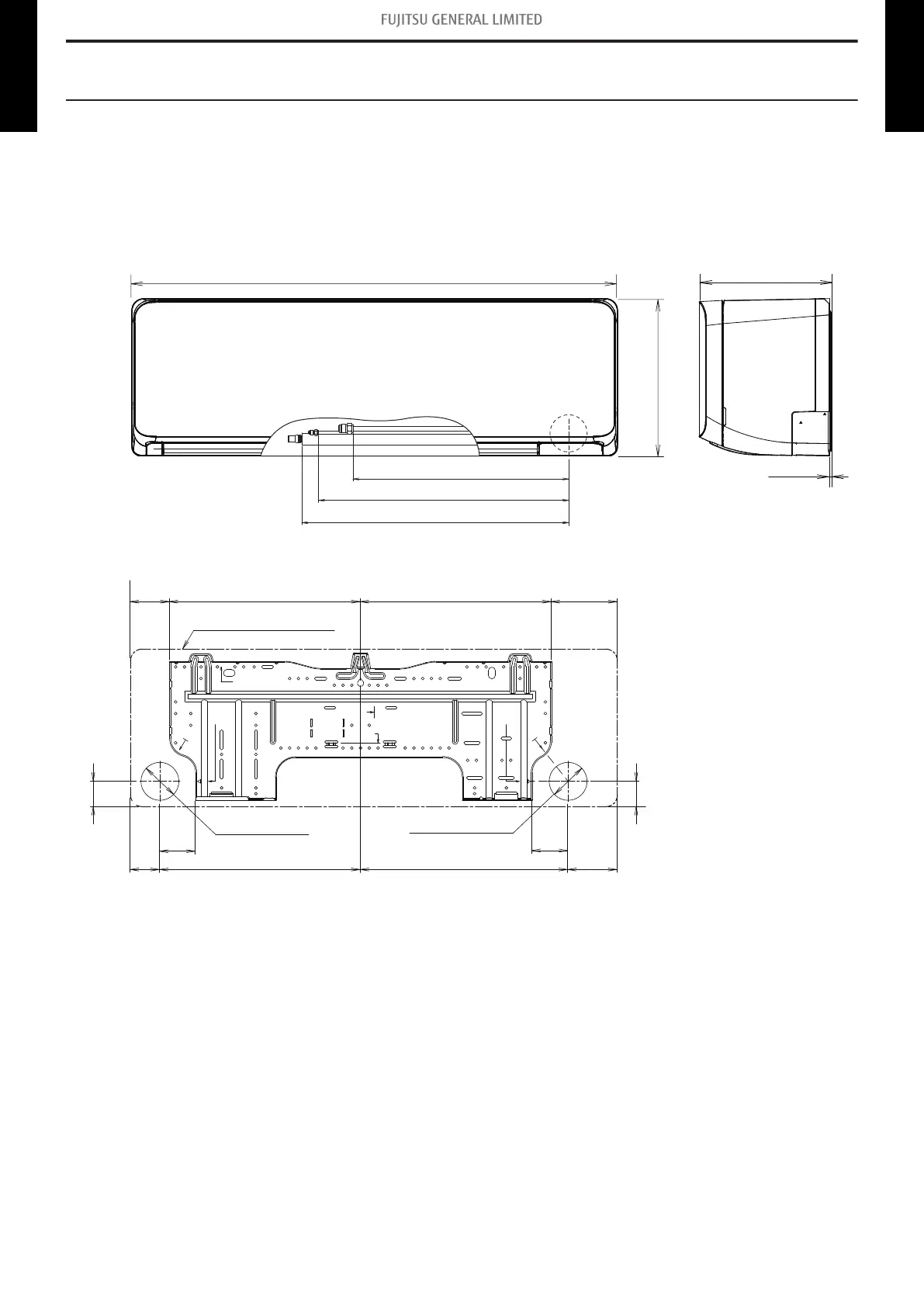

2. Dimensions
2-1. Indoor unit
¢ Models: ASYG07KMCF, ASYG09KMCF, ASYG12KMCF, and
ASYG14KMCF
Unit: mm
834
270
222
3.0
344 356
327 11332767
62
50
62
84
43
43
Outline of indoor unit
for pipe inlet Ø65 for pipe inlet Ø65
359
418
492
2-1. Indoor unit - (01-4) - 2. Dimensions
