5-6. Reactor assy
Check point 1. Appearance check
No fissures, breaks, damage, etc. at the body and winding section, terminals section?
Check point 2. Electric check

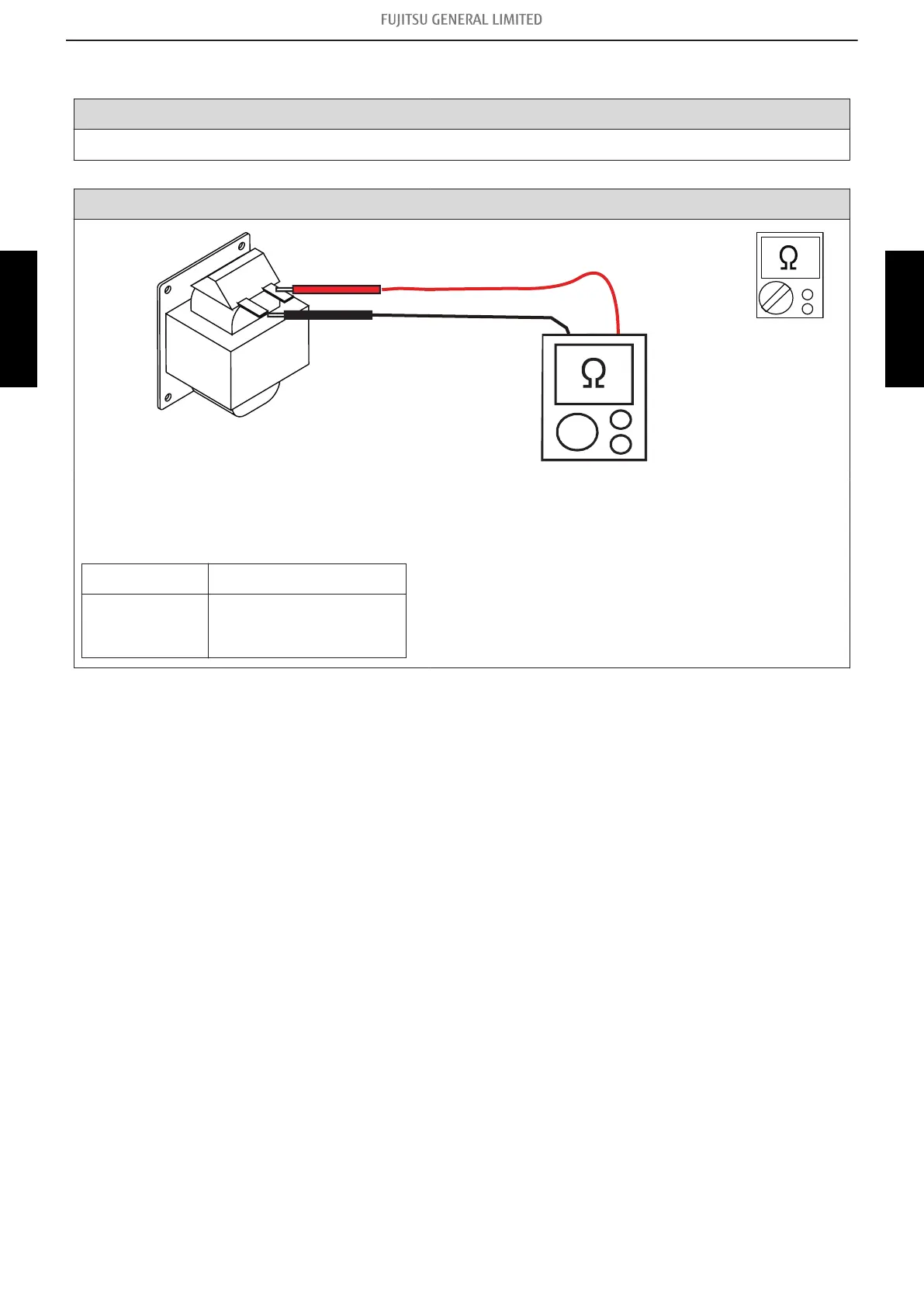

• Set the tester to the "Resistance" mode, and check for open/short between both ends of the
reactor wire (or connector).
• Judge the result of 1. as follows:
Short Normal
NOTE: Reference value of DC resistance of reac-
tor used:
07-12 models: 408.0 mΩ (at 20°C), 14
model: 415.9 mΩ (at 25°C)
Open
Abnormal (open)
