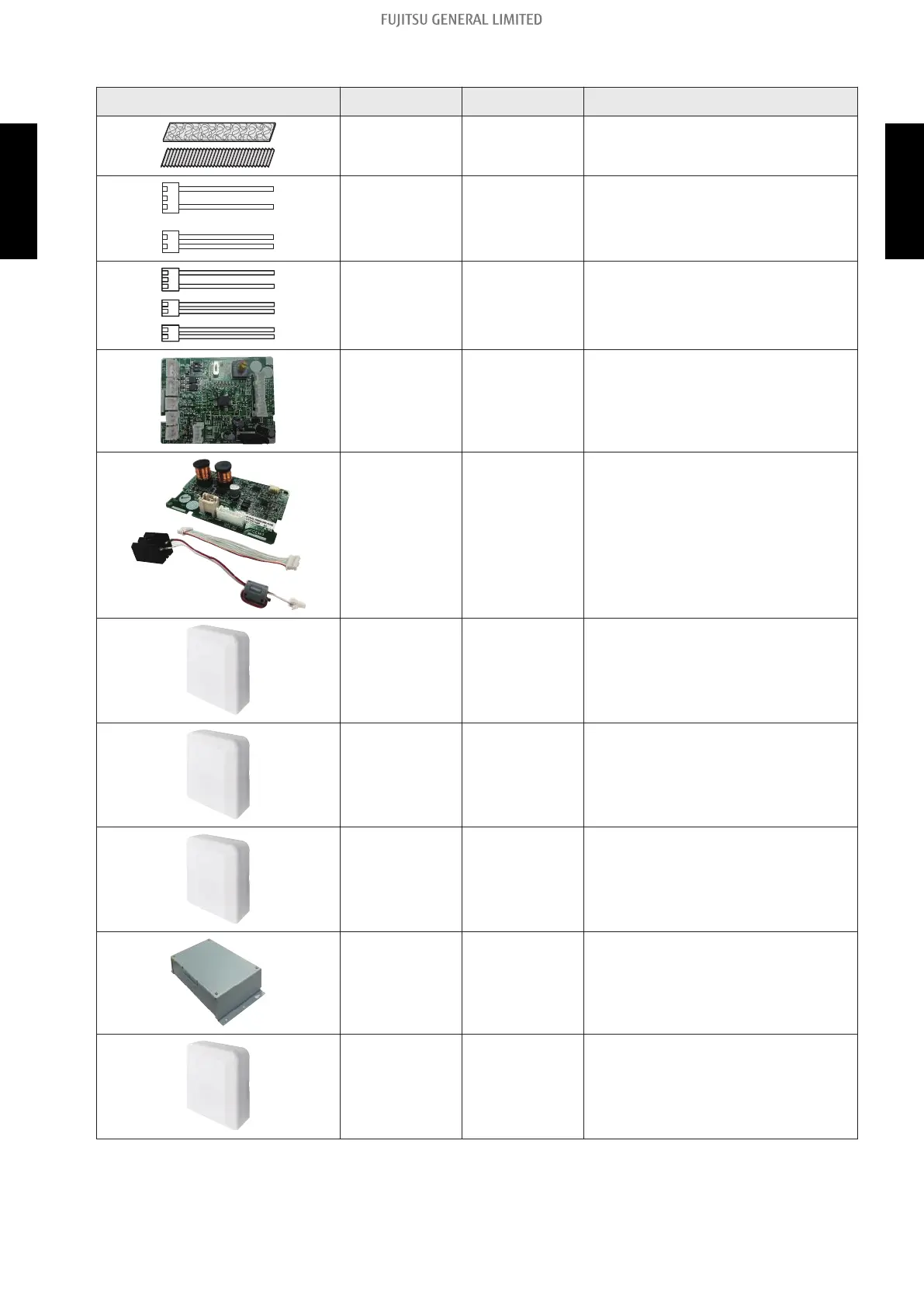

Exterior Part name Model name Summary
Air Cleaning
Filter
UTR-FA16-5
Air Cleaning Filter can be mounted to
the indoor unit.
External
Connect Kit
UTY-XWZX
Use to connect with various peripheral
devices and air conditioner PCB.
Connecting point: CN47 on Main PCB
External
Connect Kit
UTY-XWZXZ5
Required when external device is
connected.
Connecting point: CN47 on Main PCB
External Input
and Output PCB
UTY-XCSXZ2
Use to connect with external devices
and air conditioner PCB.
Optional External Connect Kit is
necessary for installation.
Connecting point: CN65 on Main PCB
Communication
Kit
UTY-TWRXZ2
Use to connect Non-polar 2-core wired
remote controller.
Modbus
Converter
UTY-VMSX
For connection between indoor unit
with UART interface and a Modbus
open network.
Connecting point: CN65 on Main PCB
KNX Convertor UTY-VKSX
For connection between indoor unit
with UART interface and a KNX open
network.
Connecting point: CN65 on Main PCB
Network
Converter
UTY-VTGX
This converter is required when
connecting single split system to VRF
network system.
Use the terminal for Wired Remote
Controller.
Network
Converter
(AC power
supply)
UTY-VTGXV
This converter is required when
connecting single split system to VRF
network system.
Use the terminal for Wired Remote
Controller.
External Switch
Controller
UTY-TERX
Air conditioner switching can be
controlled by connecting other external
sensor switches.
Use the terminal for Wired Remote
Controller.
5-1. Indoor unit
- (02-16) - 5. Optional parts
