Fujitsu ASYG09KMTA User Manual

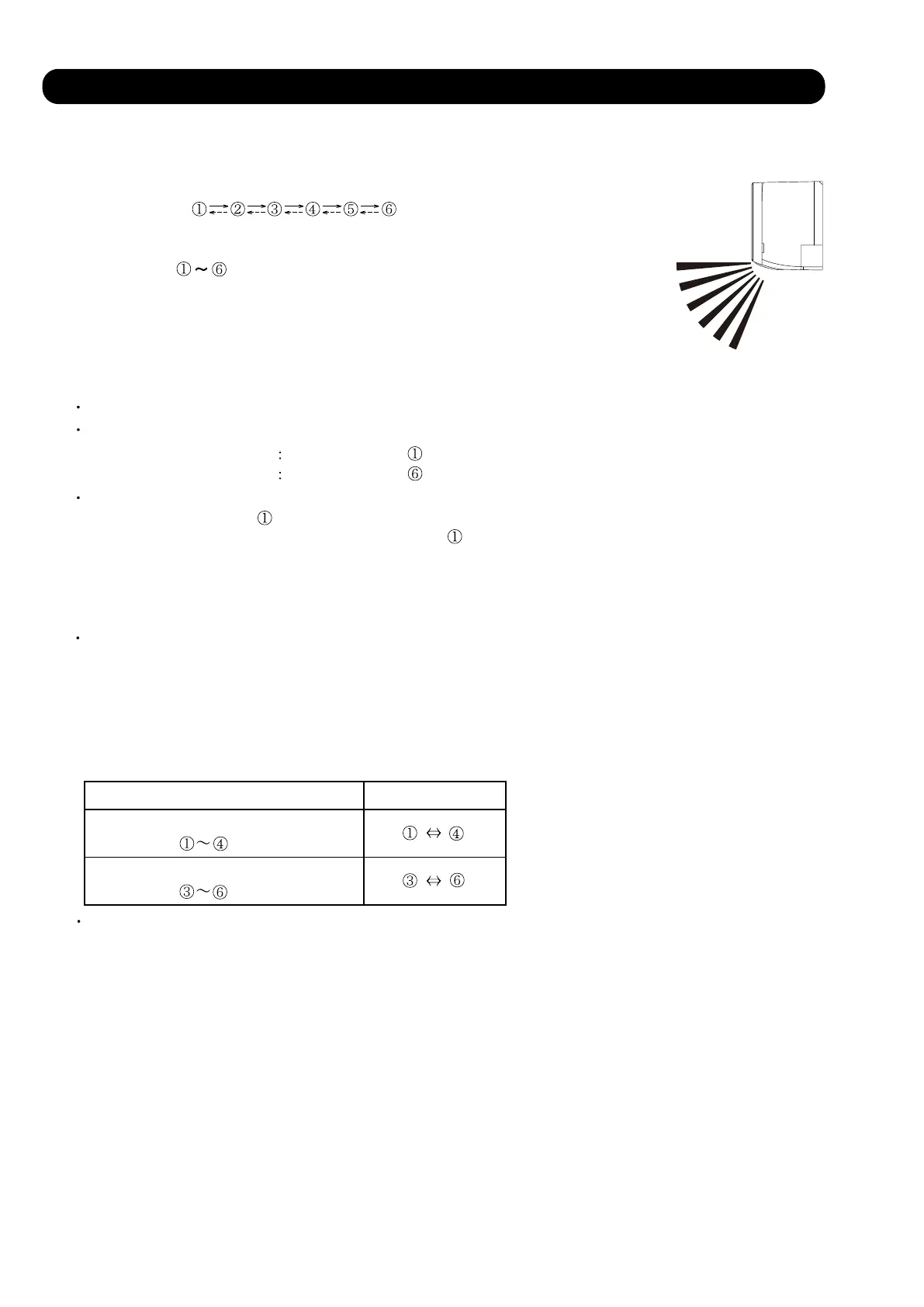

7. LOUVER CONTROL
1. VERTICAL LOUVER CONTROL
3. SWING OPERATION
Each time the button is pressed, the air direction range will change as follow:
(Function Range)
01-08
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
Cooling / Dry mode
Horizontal flow
Heating mode Downward flow
When the swing signal is received from the remote controller, the vertical louver starts to swing.
(Table10 : Swinging Range)
Air Direction RangeFig.9 :
Cooling / Dry mode
Fan mode ( )
Types of Air flow Direction Setting:
The Remote Controller's display does not change.
Use the air direction adjustments within the ranges shown above.
During AUTO mode operation, for the first a few minutes after beginning operation,
air-flow will be horizontal ; the air direction cannot be adjusted during this period.
The air flow direction setting will temporarily become when the temperature of the air -flow is
low at the start of the Heating mode.
Range
Heating mode
Fan mode ( )
The SWING operation may stop temporarily when the air conditioner’s fan is not operating,
or when operating at very low speeds.
2. ADJUST THE RIGHT-LEFT LOUVERS
Move the Right-Left louvers to adjust air flow in the direction you prefer.
To select Vertical Airflow Swing Operation
To select Horizontal Airflow Swing Operation
(No function)
ALL MODE :
1
2
3
4
5
6

Fujitsu ASYG09KMTA Specifications

General

Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Gas hose diameter	9.5 mm
Hose length (max)	15 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Comfort sleeping mode	Yes
Dehumidifying capacity	1.3 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	4000 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	3.97
Heating energy efficiency (COP, W/W)	4.52
Seasonal efficiency rating (cooling) (SEER)	7.4
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	2800 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.1
AC input voltage	230 V
Current (cooling)	6.5 A
Current (heating)	9 A
AC input frequency	50 Hz
Design load (cooling)	2.5 kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.4 kW
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	222 mm
Indoor unit width	834 mm
Indoor unit height	270 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	700 m³/h
Indoor unit sound power level	40 dB
Indoor unit noise level (low speed)	29 dB
Indoor unit noise level (high speed)	46 dB
Outdoor unit noise level	- dB
