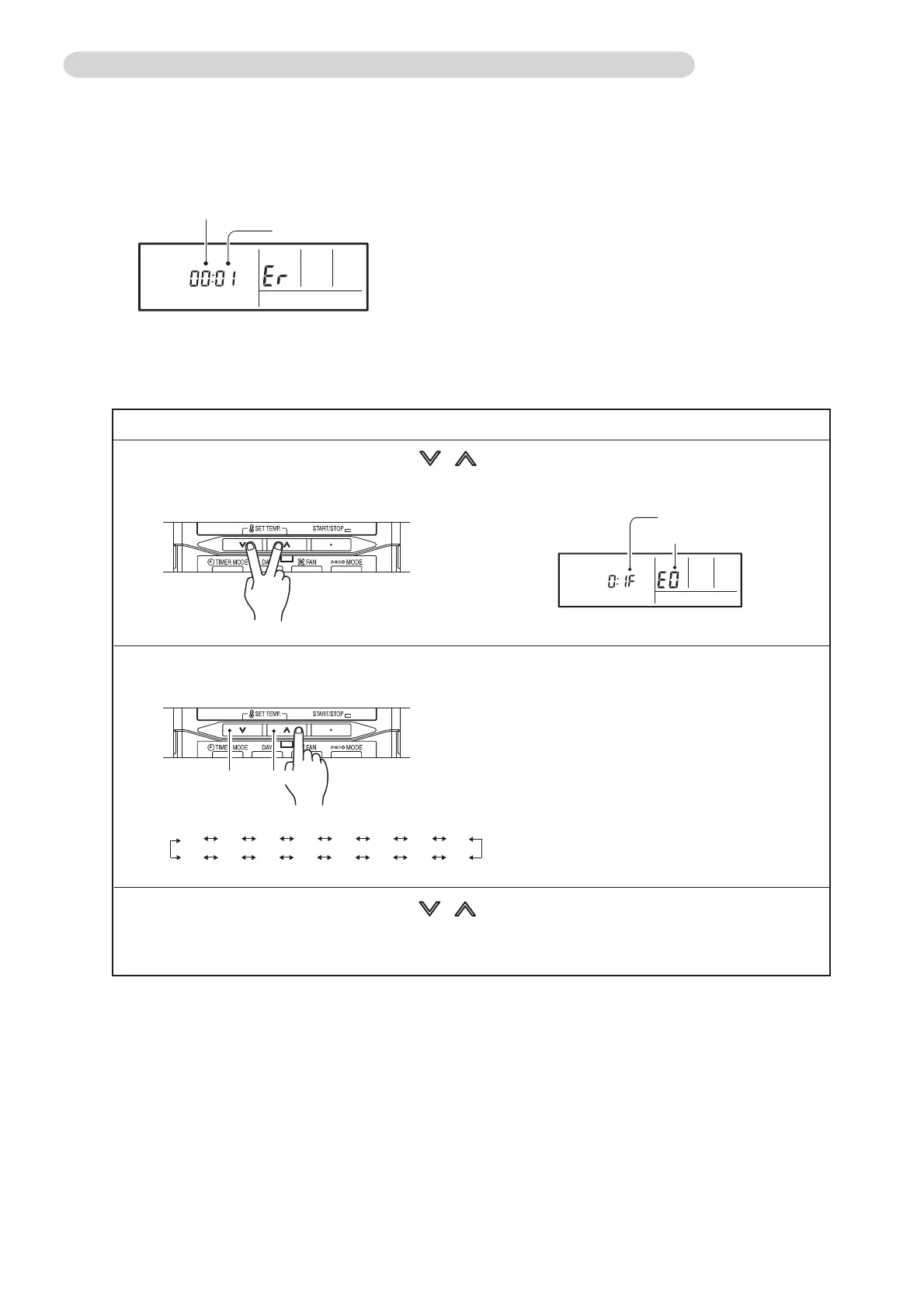

2-1-2 WIRED REMOTE CONTROLLER DISPLAY (OPTION)
When " Er " in Temperature Display is displayed, inspection of the air conditioning system is necessary.
Please consult authorized service personnel.
1. SELF - DIAGNOSIS
SU MOTU WETH FR SA
Unit number (usually 0)
Error code
ex. Self-diagnosis check
2. ERROR CODE HISTORY DISPLAY
Up to 16 memorized error codes may be displayed for the indoor unit connected to the remote controller.
1. Stop the air conditioner operation.
2. Press the SET TEMPERATURE buttons , simultaneously for 3 seconds
or more to start the self-diagnosis.
4. Press the SET TEMPERATURE buttons , simultaneously for 3 seconds or more
or there is no key input for 60 seconds to stop the display.
3. Press the SET TEMPERATURE button to select the error history number.
SU MO TU WETH FR SA
Error code
Error history number
0 1 2 3 4 5 6 7
F E d c b A 9 8
ı
ı
Lower
Raise
For UTY-RNN*M

Fujitsu ASYG09KMTA Specifications

General

Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Gas hose diameter	9.5 mm
Hose length (max)	15 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Comfort sleeping mode	Yes
Dehumidifying capacity	1.3 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	4000 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	3.97
Heating energy efficiency (COP, W/W)	4.52
Seasonal efficiency rating (cooling) (SEER)	7.4
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	2800 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.1
AC input voltage	230 V
Current (cooling)	6.5 A
Current (heating)	9 A
AC input frequency	50 Hz
Design load (cooling)	2.5 kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.4 kW
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	222 mm
Indoor unit width	834 mm
Indoor unit height	270 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	700 m³/h
Indoor unit sound power level	40 dB
Indoor unit noise level (low speed)	29 dB
Indoor unit noise level (high speed)	46 dB
Outdoor unit noise level	- dB
