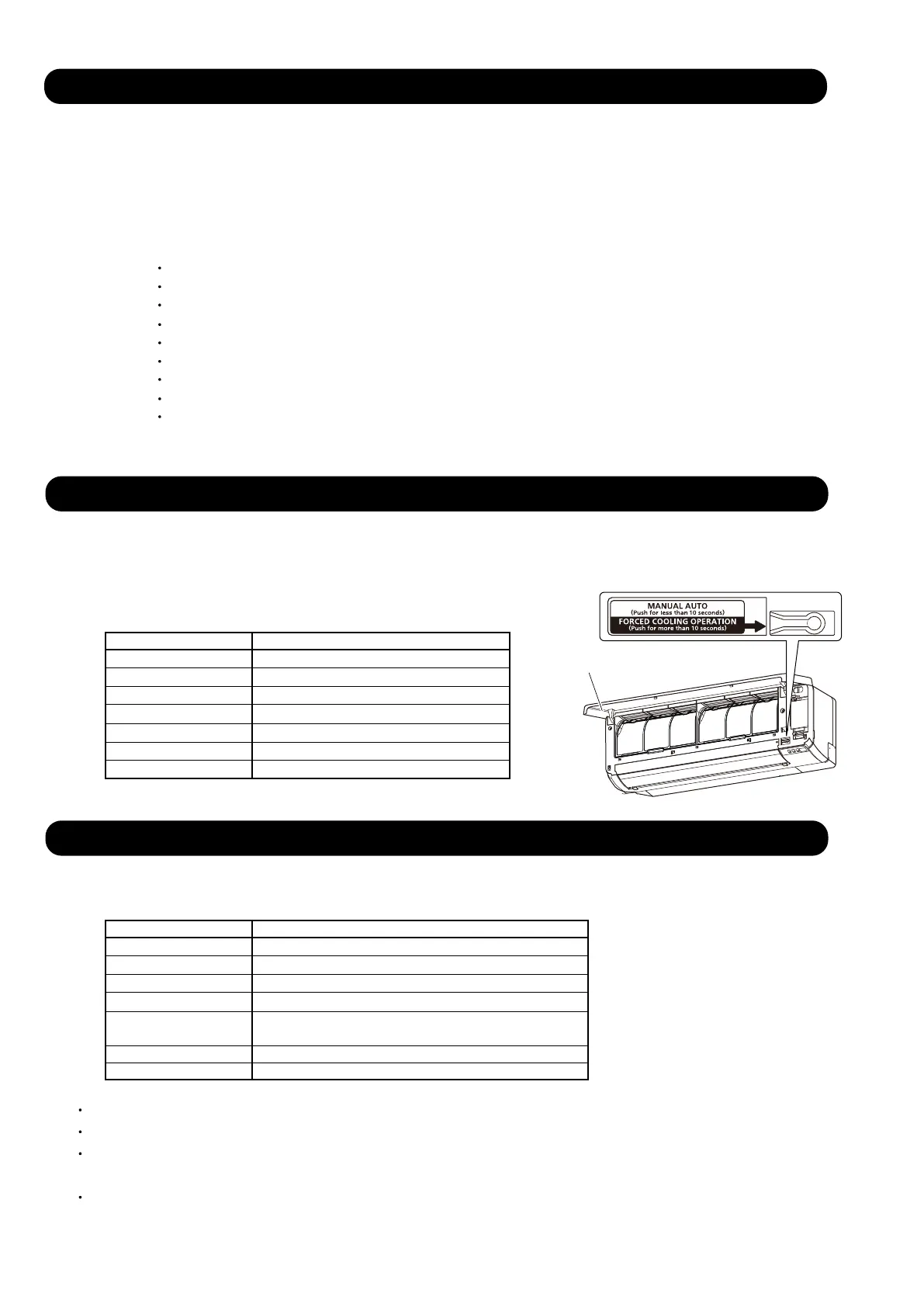

15. MANUAL AUTO OPERATION (Indoor unit body operation)
When the remote control is lost or battery power dissipated, this function will work without the remote control.
When MANUAL AUTO button is set more than 3seconds and less than 10seconds, MANUAL AUTO OPERATION
will be started as shown in Table16.
To stop operation, press the MANUAL AUTO button for 3seconds.
(Table16 : MANUAL AUTO OPERATION)
01-14
16. FORCED COOLING OPERATION (TEST OPERATION)
Forced cooling operation is started when press MANUAL AUTO button for 10 seconds or more.
During the forced cooling operation, it operates regardless of room temperature sensor.
Operation LED and timer LED blink at the same time during the forced cooling operation.
They blink for 1 second ON and 1 second OFF on both operation LED and timer LED (same as t
est operation).
Forced cooling operation is released after 60 minutes of starting operation or pressing MANUAL AUTO button
for 3 seconds.
( Table17 : FORCED COOLING OPERATION )
When FORCED COOLING OPERATION is set, the operation is controlled as shown in Table17.
When the power was interrupted by a power failure, etc. during operation, the operation contents
at that time are memorized and when power is recovered, operation is automatically started with
the memorized operation contents.
When the power is interrupted and recovered during timer operation, since the timer operation time
is shifted by the time the power was interrupted, an alarm is given by blinking (7 sec ON/2 sec OFF)
the indoor unit body timer lamp.
[ Operation contents memorized when the power is interrupted ]
Operation mode
Set temperature
Set air flow
Timer mode and set time (set by wireless remote controller)
Set air flow Direction
Swing
ECONOMY operation
10°C HEAT operation
Outdoor low noise operation
14. AUTO RESTART
OPERATION MODE Auto changeover
FAN CONT. MODE Auto
TIMER MODE Continuous
SETTING TEMP. 24°C
SETTING LOUVER Standard
SWING
ECONOMY
OFF
OFF
(No timer setting available)
Forced cooling operation
Cooling
Hi
Horizontal
(It is changed follow as setting of remote controller)
OFF
Room Temp is not controlled
Manual auto operation
-
-
OPERATION MODE
FAN CONT. MODE
TIMER MODE
SETTING TEMP.
SETTING LOUVER
SWING
ECONOMY
Intake grille

Fujitsu ASYG09KMTA Specifications

General

Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Gas hose diameter	9.5 mm
Hose length (max)	15 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Comfort sleeping mode	Yes
Dehumidifying capacity	1.3 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	4000 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	3.97
Heating energy efficiency (COP, W/W)	4.52
Seasonal efficiency rating (cooling) (SEER)	7.4
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	2800 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.1
AC input voltage	230 V
Current (cooling)	6.5 A
Current (heating)	9 A
AC input frequency	50 Hz
Design load (cooling)	2.5 kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.4 kW
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	222 mm
Indoor unit width	834 mm
Indoor unit height	270 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	700 m³/h
Indoor unit sound power level	40 dB
Indoor unit noise level (low speed)	29 dB
Indoor unit noise level (high speed)	46 dB
Outdoor unit noise level	- dB
