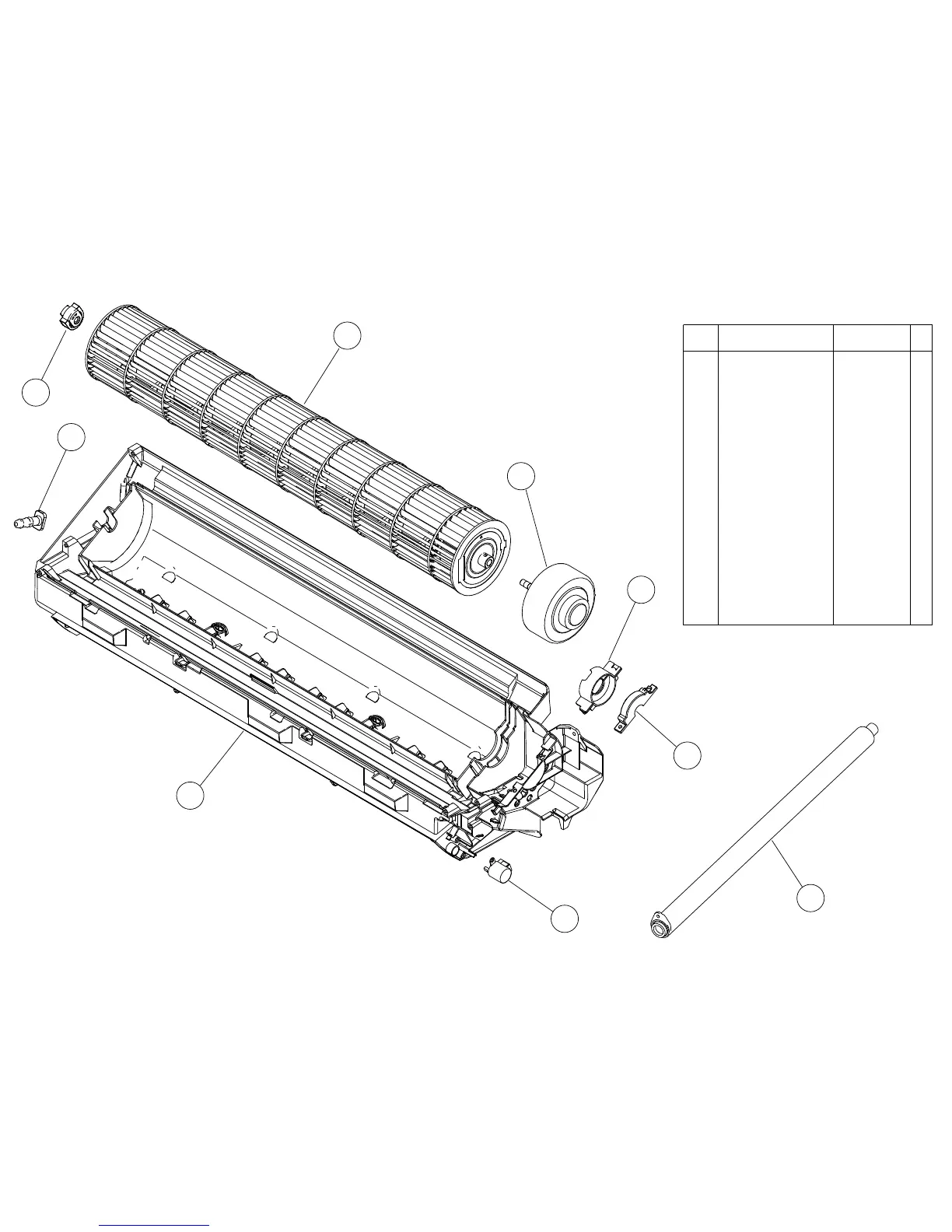

INDOOR UNIT
Fan
13
Fan Motor 9603180010
Crossflow Fan Assy 9316830004
Bearing C Assy 9306628017
24
21
Casing Assy 9332613056
22
23
Ref. Description Part number
2013.01.28
29
25
26
28
27
28
29
Step Motor 9900725006
Drain Hose Assy 9316904002
27
Drain Cap 9316177017
25
26
Motor Cover 9316601000
Motor Cover 9316568006
