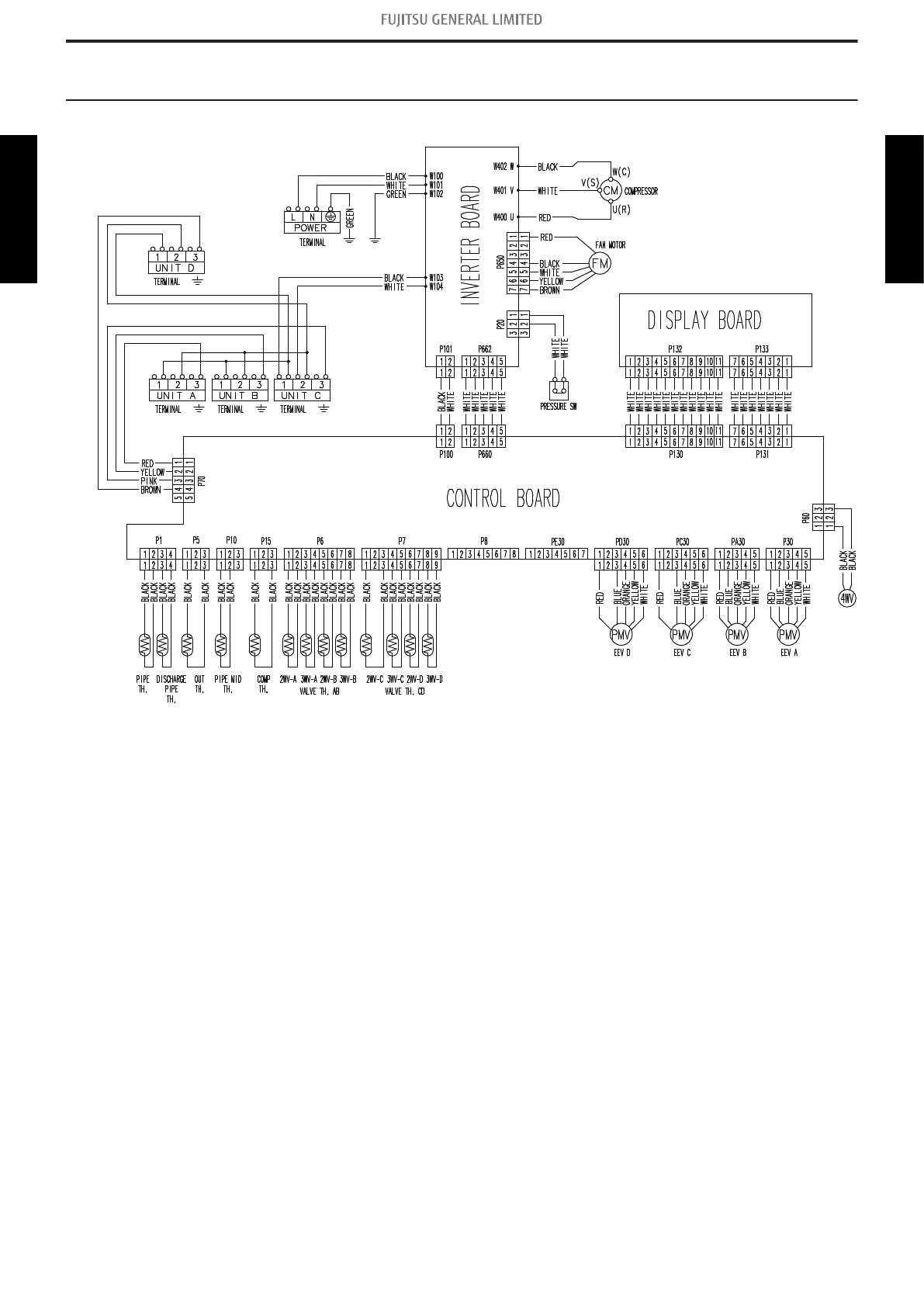

5. Wiring diagram
5-1. Model: AOYG30KBTA4
- 389 -
5-1. Model: AOYG30KBTA4
5. Wiring diagram
OUTDOOR UNIT
AOYG30KBTA4
OUTDOOR UNIT
AOYG30KBTA4
