Fujitsu ASYG12KMCF Service Manual

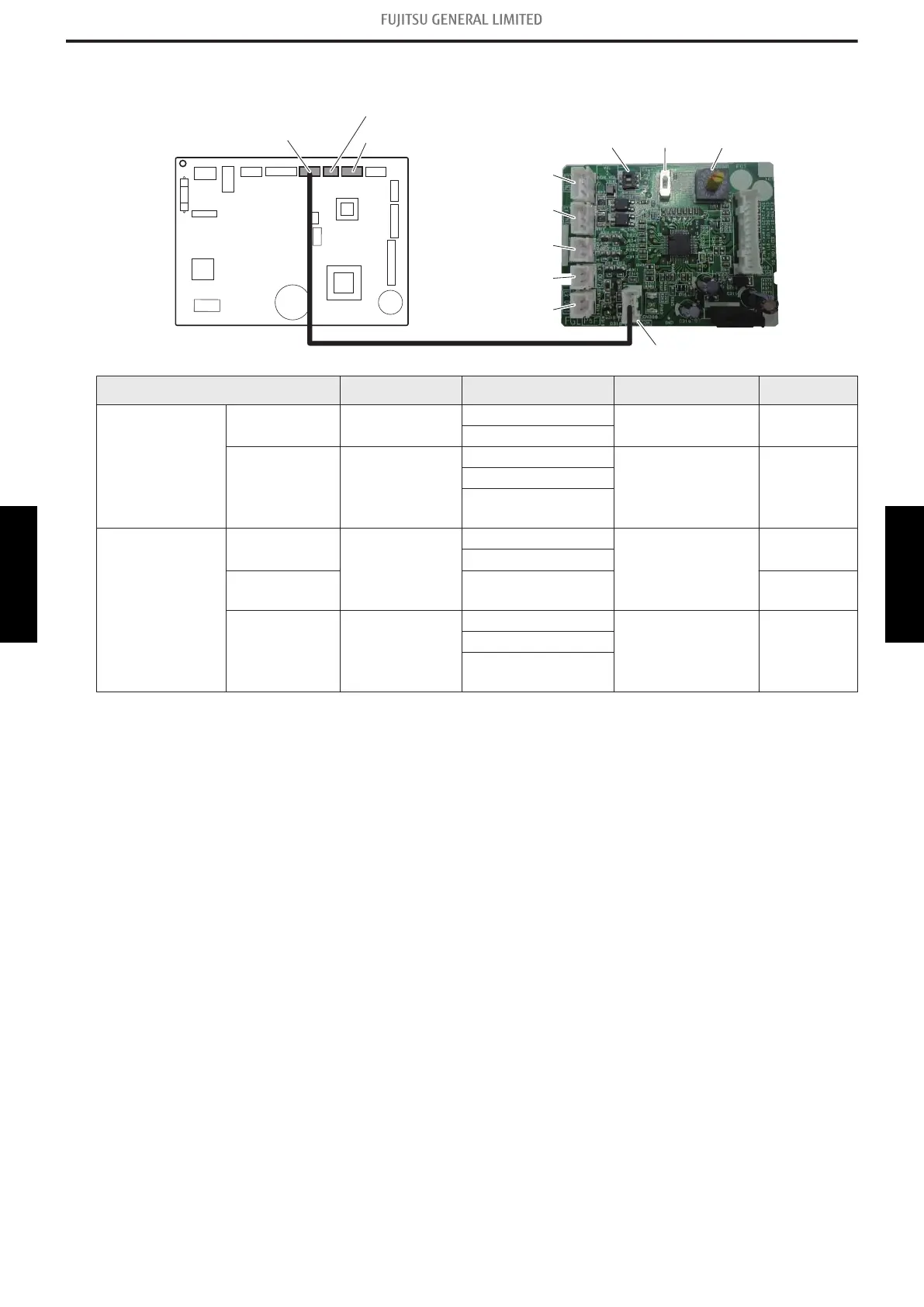

2. External input and output
Rotary switchSW302
CN308
SW301
External input and output PCB
Indoor unit PCB
CN314
CN313
CN312
CN311
CN310
CN65
(Ext. in/out PCB)
CN47 (Ext. out)
CN46 (Ext. in)
Connecting point Input/Output Function Input select Input signal
Indoor unit
CN46 Input
Operation/Stop
Dry contact Edge
Forced stop
CN47 Output
Operation/Stop
— —
Error status
Indoor unit fan
operation status
External Input
and Output PCB
(UTY-XCSXZ2)
CN313
CN314
Input
Operation/Stop
Dry contact/Apply
voltage
Edge/Pulse
Forced stop
CN313
Forced thermostat
off
Edge
CN310
CN311
CN312
Output
Operation/Stop
— —
Error status
Indoor unit fan
operation status
NOTE: For details of the switching function, refer to "Setting of external input and output" on page
05-15.
- (05-9) -
2. External input and output
FIELD WORKING FIELD WORKING

Fujitsu ASYG12KMCF Specifications

General

Cooling Capacity	3.5 kW
Heating Capacity	4.0 kW
Seasonal Energy Efficiency Ratio (SEER)	6.1
Energy Efficiency Class (Cooling)	A++
Energy Efficiency Class (Heating)	A+
Power Supply	220-240 V, 50 Hz
Refrigerant	R32
Coefficient of Performance (COP)	4.0
Type	Split System
Outdoor Unit Noise Level	49 dB(A)
