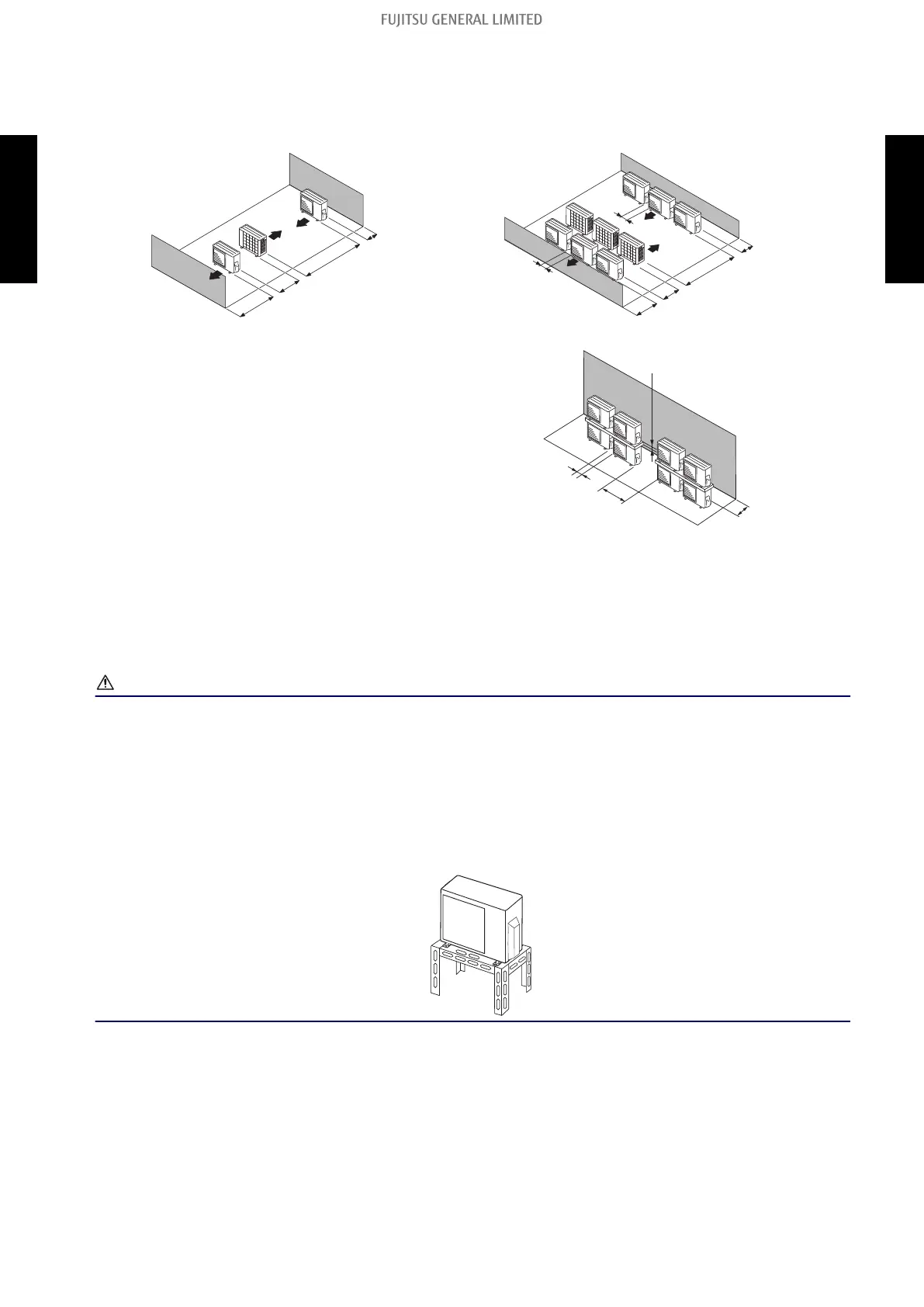

 Outdoor units installation in multi-row
Unit: mm
Single parallel unit arrangement Multiple parallel unit arrangement
100 or more
200 or more
500 or more
1,000 or more
200 or more
400 or more
1,000 or more
2
50
o
r more
2,000 or more
250 or more
1,000 or more
200 or more
250 or more
200 or more
NOTES:
• If the space is larger than stated above, the condition will be the same as when there is no ob-
stacle.
• When installing the outdoor unit, be sure to open the front and left side to obtain better operation
efficiency.
CAUTION
• Do not install the outdoor unit in two-stage where the drain water could freeze. Otherwise the
drainage from the upper unit may form ice and cause a malfunction of the lower unit.
• When the outdoor temperature is 0 °C or less, do not use the accessory drain pipe and drain
cap. If the drain pipe and drain cap are used, the drain water in the pipe may freeze in extremely
cold climate. (For reverse cycle model only.)
• In area with heavy snowfall, if the inlet and outlet of the outdoor unit is blocked with snow, it
might become difficult to get warm, and it is likely to cause product malfunction. Construct a
canopy and a pedestal, or place the unit on a high stand that is locally installed.
- 30 -
3-1. Models: AOYG07KPCA, AOYG09KPCA, and AOYG12KPCA 3. Installation space
OUTDOOR UNIT AOYG07-12KPCA OUTDOOR UNIT AOYG07-12KPCA

Fujitsu ASYG12KPCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	No
Product color	White
Gas hose diameter	9.52 mm
Hose length (max)	20 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Dehumidifying capacity	1.8 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (nominal)	3400 W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.3
Seasonal efficiency rating (heating) (SCOP)	4.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3800 W
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	3.4 kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Colder heating season)	- kW
Design load (heating) (Warmer heating season)	1.3 kW
Design load (heating) (Average heating season)	2.5 kW
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	224 mm
Indoor unit width	784 mm
Indoor unit height	270 mm
Indoor unit weight	8000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	630 m³/h
Indoor unit sound power level	59 dB
Indoor unit noise level (low speed)	22 dB
Indoor unit noise level (high speed)	46 dB
Outdoor unit noise level	- dB
