Fujitsu ASYG12KPCA User Manual

¢
Model: AOYG12KPCA
 Cooling
0
10
20
30
40
50
60
70
80
63 125 250 500
1,000
2,000
4,000 8,000
Octave band sound pressure level, dB: (0 dB = 0.0002 μbar)
Octave band center frequency, Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
 Heating
0
10
20
30
40
50
60
70
80
63 125 250 500
1,000
2,000
4,000 8,000
Octave band sound pressure level, dB: (0 dB = 0.0002 μbar)
Octave band center frequency, Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15

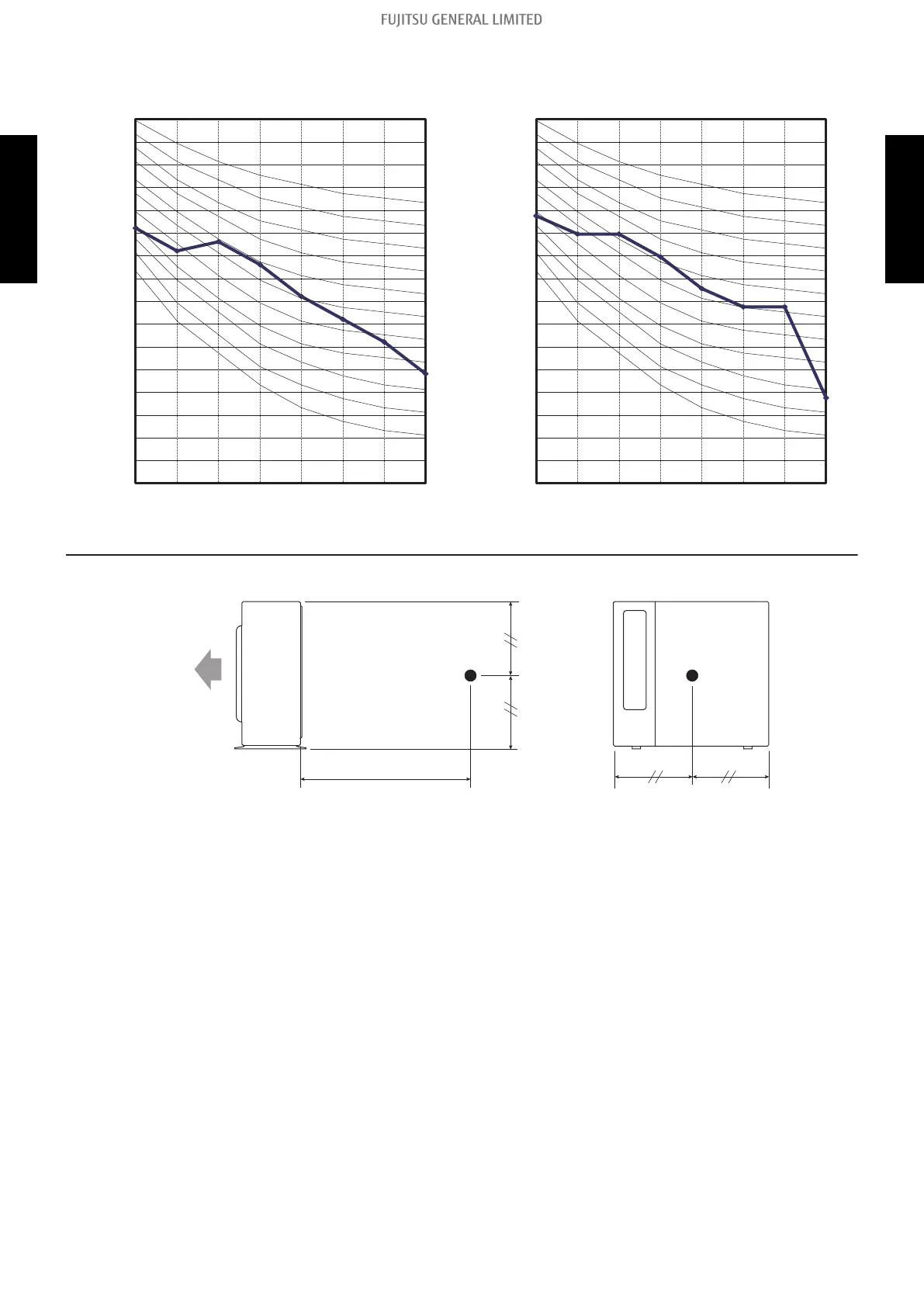

9-2. Sound level check point
1 m
MicrophoneMicrophone
Rear
Airflow
Rear view
Side view
NOTE:
Detailed shape of the actual outdoor unit might be slightly different from the one illustrated
above.
- 39 -
9-1. Noise level curve 9. Operation noise (sound pressure)
OUTDOOR UNIT AOYG07-12KPCA OUTDOOR UNIT AOYG07-12KPCA

Fujitsu ASYG12KPCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	No
Product color	White
Gas hose diameter	9.52 mm
Hose length (max)	20 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Dehumidifying capacity	1.8 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (nominal)	3400 W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.3
Seasonal efficiency rating (heating) (SCOP)	4.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3800 W
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	3.4 kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Colder heating season)	- kW
Design load (heating) (Warmer heating season)	1.3 kW
Design load (heating) (Average heating season)	2.5 kW
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	224 mm
Indoor unit width	784 mm
Indoor unit height	270 mm
Indoor unit weight	8000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	630 m³/h
Indoor unit sound power level	59 dB
Indoor unit noise level (low speed)	22 dB
Indoor unit noise level (high speed)	46 dB
Outdoor unit noise level	- dB
