Fujitsu ASYG12LMCE Service Instruction

9. TIMER OPEARTION CONTROL
1. OPEARTION FREQUENCY RANGE
The Table 14 shows the available timer setting based on the product model.
ON TIMER / OFF TIMER PROGRAM TIMER SLEEP TIMER
07/09/12/14

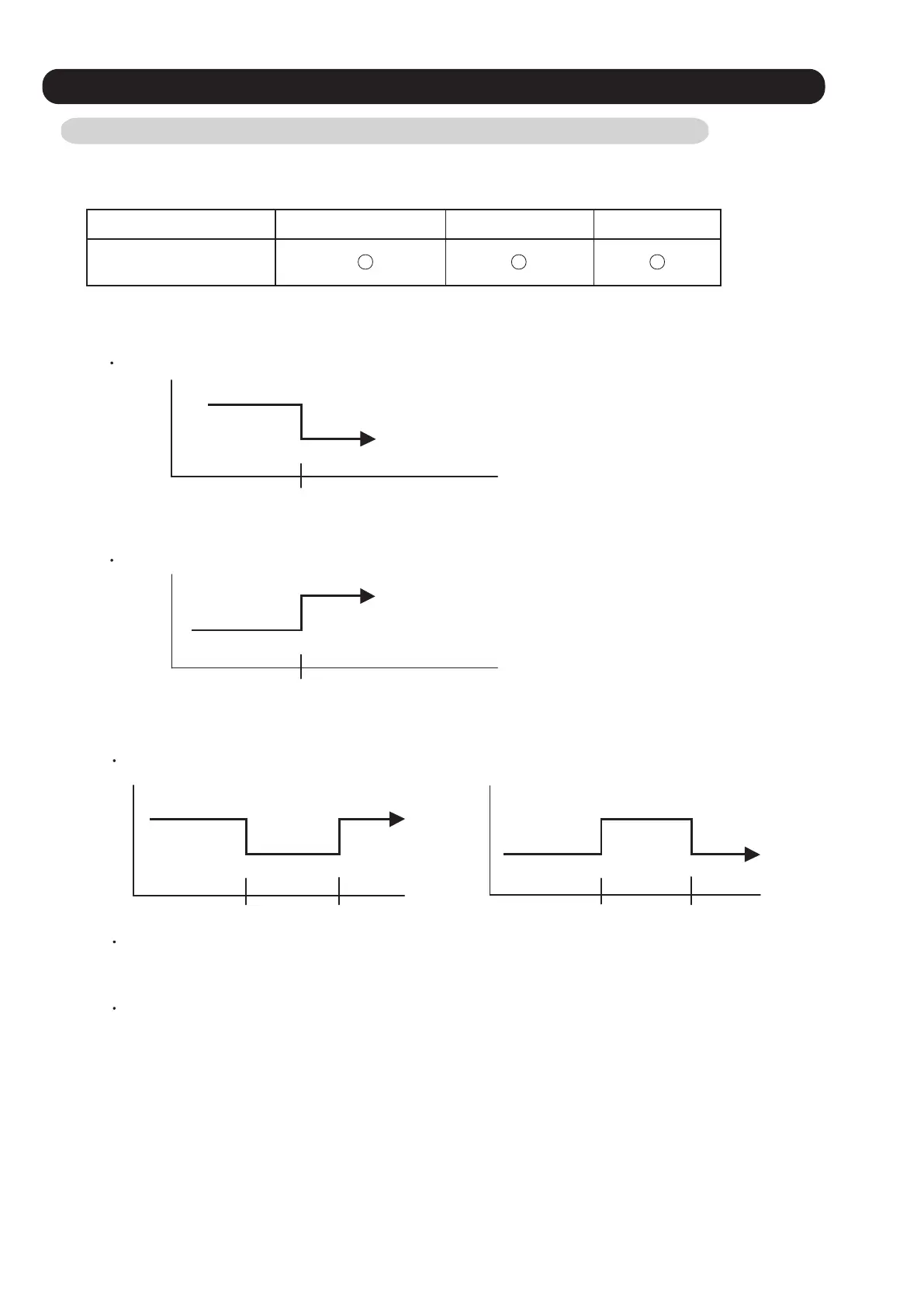

OFF timer : When the clock reaches the set time, the air conditioner will be turned off.
Operation mode
Stop mode
Set time of timer
ON timer : When the clock reaches the set time, the air conditioner will be turned on.
Operation mode
Stop mode
Set time of timer
The program timer allows the OFF timer and ON timer to be used in combination one time.
Operation mode
Operation will start from the timer setting (either OFF timer or ON timer) whichever is closest
to the clock's current timer setting.
The order of operations is indicated by the arrow in the remote control unit's display.
SLEEP timer operation cannot be combined with ON timer operation.
( Table 14 : Timer Setting )
2. PROGRAM TIMER
Stop mode
Stop mode
Stop mode
Operation mode
Operation mode
Set time Set time Set time Set time
01-10
9-1 WIRELESS REMOTE CONTROLLER
Model

Fujitsu ASYG12LMCE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Inverter technology	Yes
Refrigerating medium	R410A
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	850 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Airflow	750 m³/h
Outdoor unit noise level	- dB
Indoor unit type	Wall-mountable
Indoor unit depth	204 mm
Indoor unit width	870 mm
Indoor unit height	270 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
