Fujitsu ASYG12LMCE Service Instruction

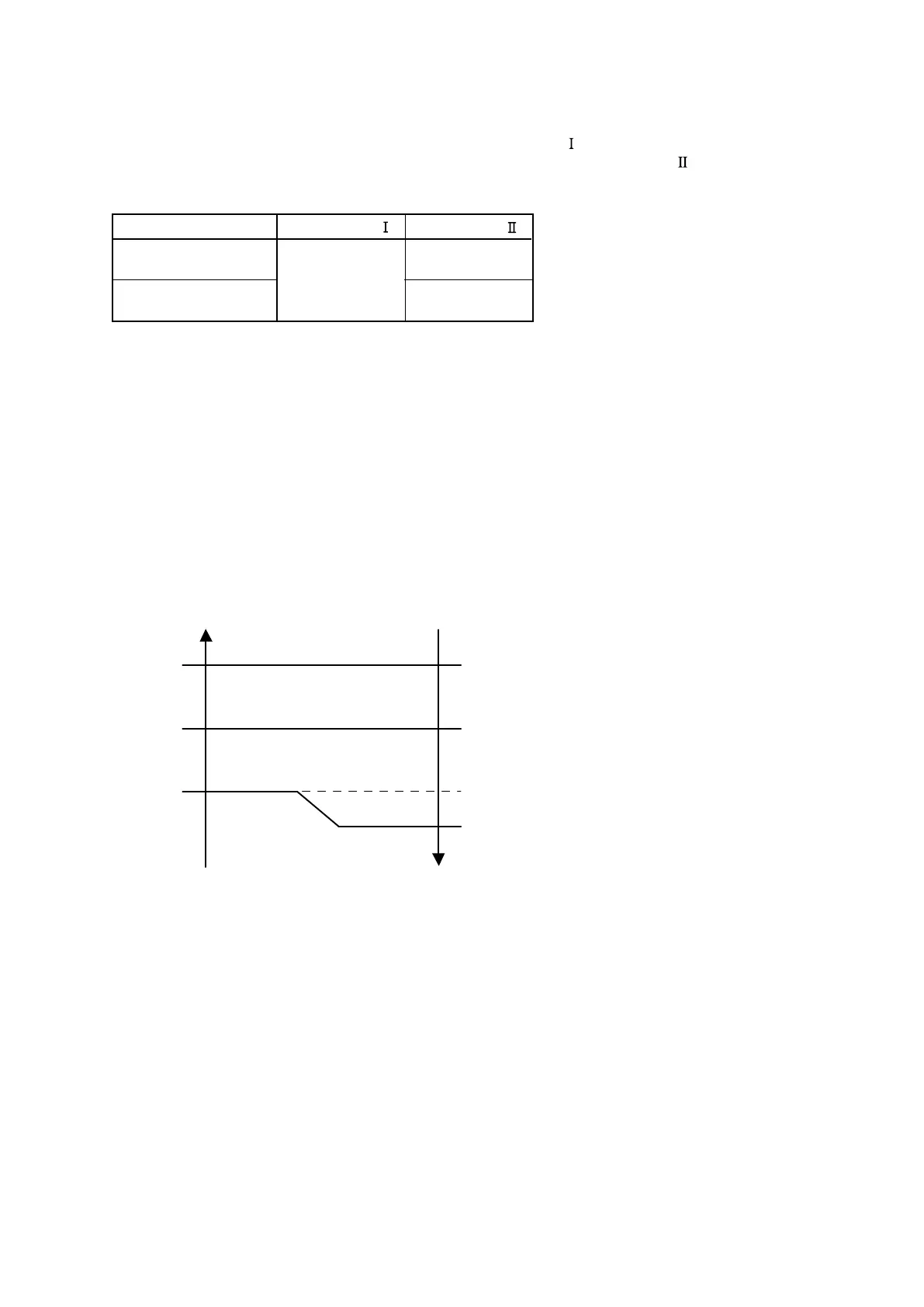

3. ANTIFREEZING CONTROL (Cooling and Dry mode)
The compressor frequency is decrease on cooling & dry mode when the indoor heat exchanger
temperature sensor detects the temperature lower than Temperature .
Then, the anti-freezing control is released when it becomes higher than Temperature .
(Table 27 : Anti-freezing Protection Operation / Release Temperature)
4. COOLING PRESSURE OVERRISE PROTECTION
When the outdoor unit heat exchange sensor temperature rises to 67°C or greater,
the compressor and the outdoor fan motor are stopped and trouble display is performed.
5. HIGH TEMPERATURE RELEASE CONTROL ( HEATING MODE )
01-21
Outdoor temperature
Over than 10°C *1
or 12°C *2
Less than 10°C *1
or 12°C *2
*1. When the temperature rises.
*2. When the temperature drops.
4°C
7°C
13°C
Temperature Temperature
On heating mode, the compressor frequency is controlled as following based on the
detection value of the indoor heat exchanger temperature sensor.
[ Control System ]
Indoor heat exchange
temperature rises
Indoor heat exchange
temperature drops
It returns to the normal operation
Compressor is stopped
53°C
55°C
63°C
50°C
The compressor frequency is
decreased 3rps every 60seconds.
The compressor frequency is
decreased 25rps every 120seconds.
Stable zone

Fujitsu ASYG12LMCE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Inverter technology	Yes
Refrigerating medium	R410A
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	850 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Airflow	750 m³/h
Outdoor unit noise level	- dB
Indoor unit type	Wall-mountable
Indoor unit depth	204 mm
Indoor unit width	870 mm
Indoor unit height	270 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
