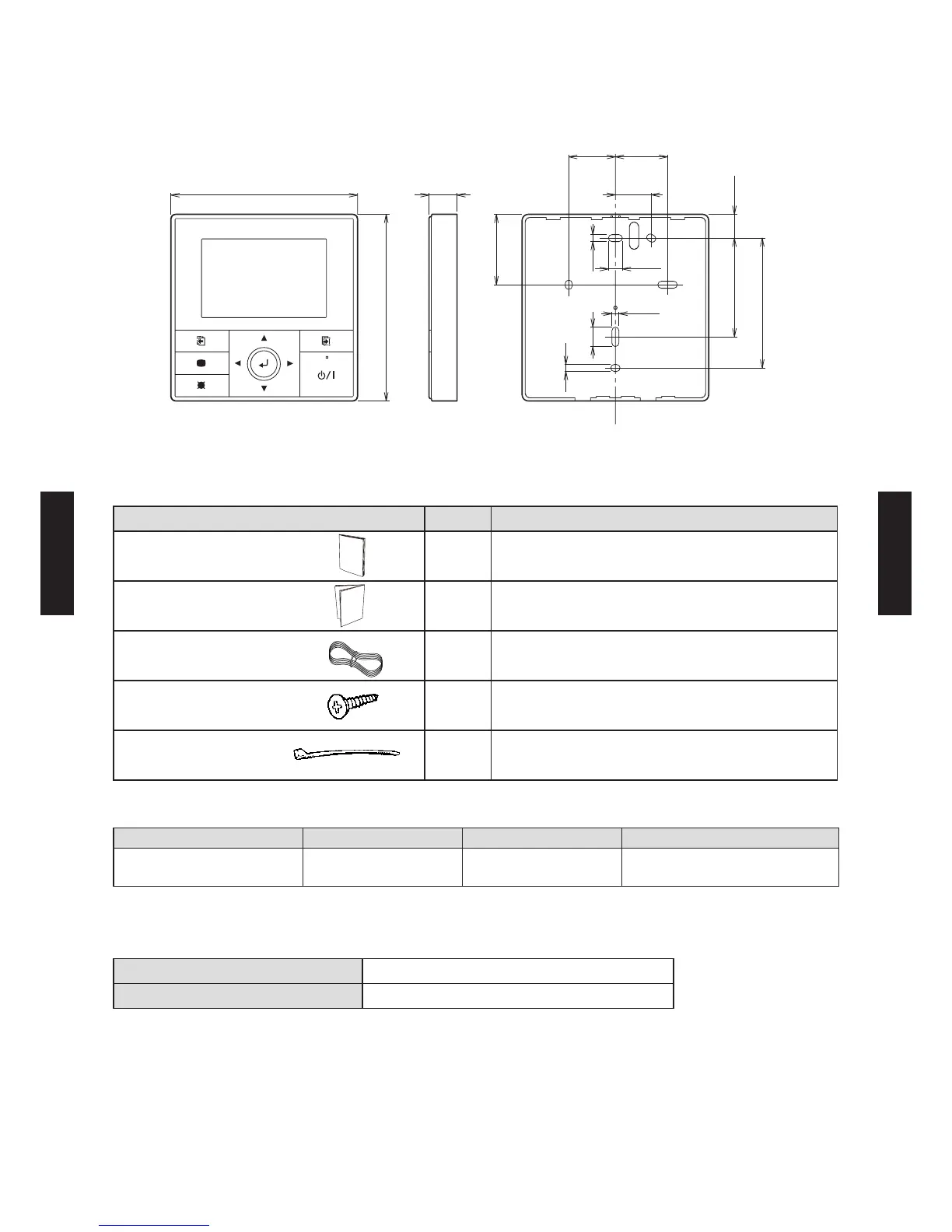

5. CONTROL SYSTEM
DIMENSIONS

120
120
21.3
30
45.3
12.5
4.5
4.5
15.363.5
83.5
23
9
4.5
33.5
Front View Side View Rear View
PACKING LIST

Name and shape Quantity Application
Operating manual 1
Installation manual 1
Remote controller cable
1
For connecting the remote controller
Screw
(M4 x 16mm)
2
For installing the remote controller
Cable tie 1
To tie the remote controller and cables
WIRING SPECIFICATIONS

Use Cable size Wire type Remarks
Remote controller cable
0.33 mm
2
(22AWG)
Polar 3 core Use sheathed PVC cable
SPECIFICATIONS

Dimensions [H x W x D]: (mm) 120 x 120 x 21.3
Weight: (g)
220
(Unit : mm)
- (05 - 12) -
CONTROL
SYSTEM
CONTROL
SYSTEM
