6. SYSTEM DESIGN
EXAMPLE OF PIPING DESIGN2-6.
Rated capacity of cooling

Model code
Capacity class
(kW)
Rated capacity of
cooling (kW)
07 2.0 2.05
09 2.5 2.64
12 3.5 3.52
14 4.0 4.10
18 5.0 5.27
24 7. 0 7.03

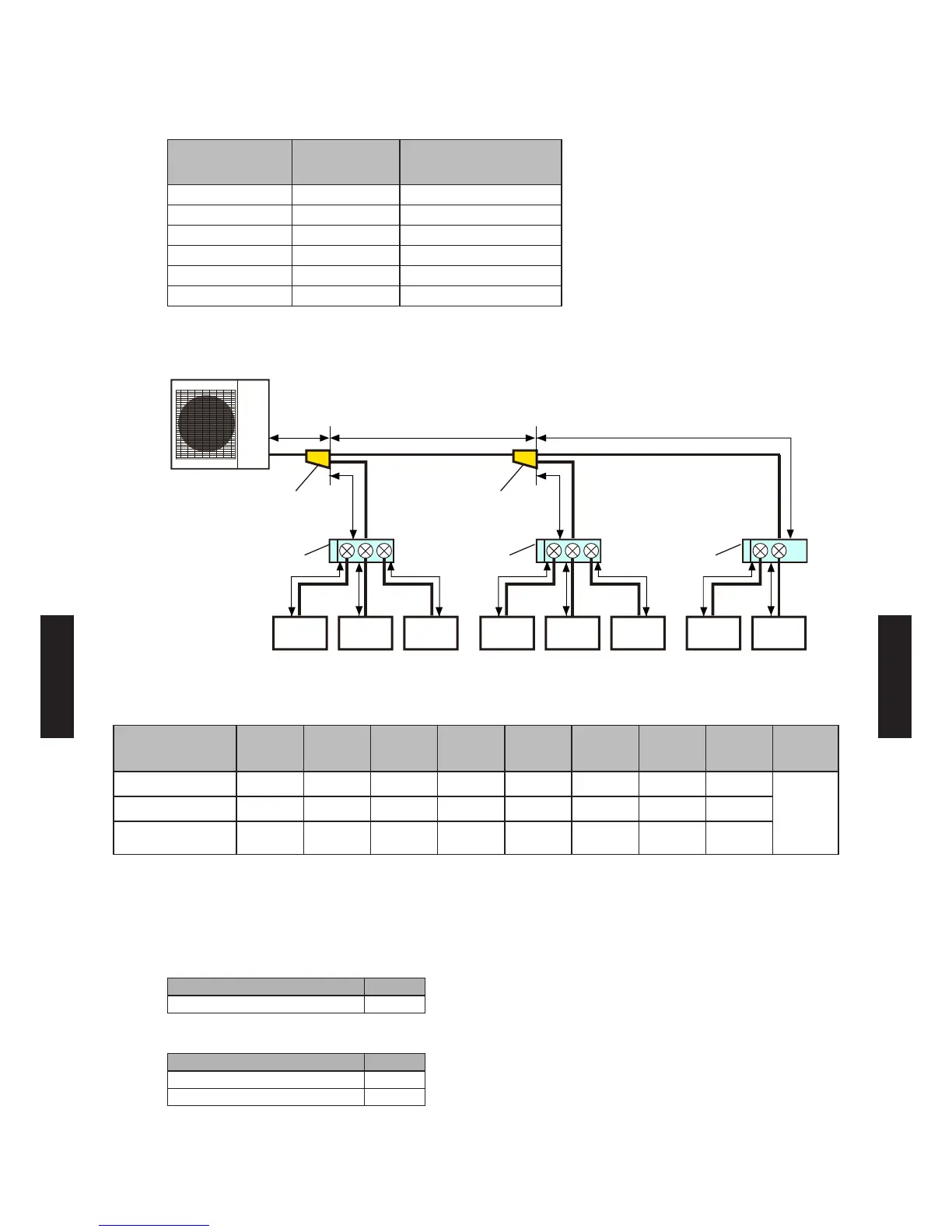

EXAMPLE 1

21 3 54 6 87
a b
d
f g hi j kl m
e
c
Outdoor unit
Separation
tube
Branch box Branch box Branch box
Separation
tube
Indoor unit Indoor unitIndoor unit Indoor unit Indoor unitIndoor unit Indoor unit Indoor unit
(2.0kW) (2.0kW)(2.0kW) (2.0kW) (2.0kW)(2.0kW) (2.0kW) (2.0kW)
System conguration

(Indoor units)
1 2 3 4 5 6 7 8
Total
capacity
(kW)
Model name AS07 AS07 AS07 AS07 AS07 AS07 AS07 AS07
16.4
Capacity class (kW) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Rated capacity of
cooling (kW)
2.05 2.05 2.05 2.05 2.05 2.05 2.05 2.05
Capacity ratio

(Total capacity of indoor units) / (Capacity of outdoor unit)
= (16.4) / (14.0) = 117.1% (Within 80% to 130%)
Selection of separation tube

Model Q'ty
UTP-SX248A 2
Selection of branch box

Model Q'ty
UTP-PY03A (3 branches) 2
UTP-PY02A (2 branches) 1
- (06 - 19) -
