6. SYSTEM DESIGN
SYSTEM DESIGN1.

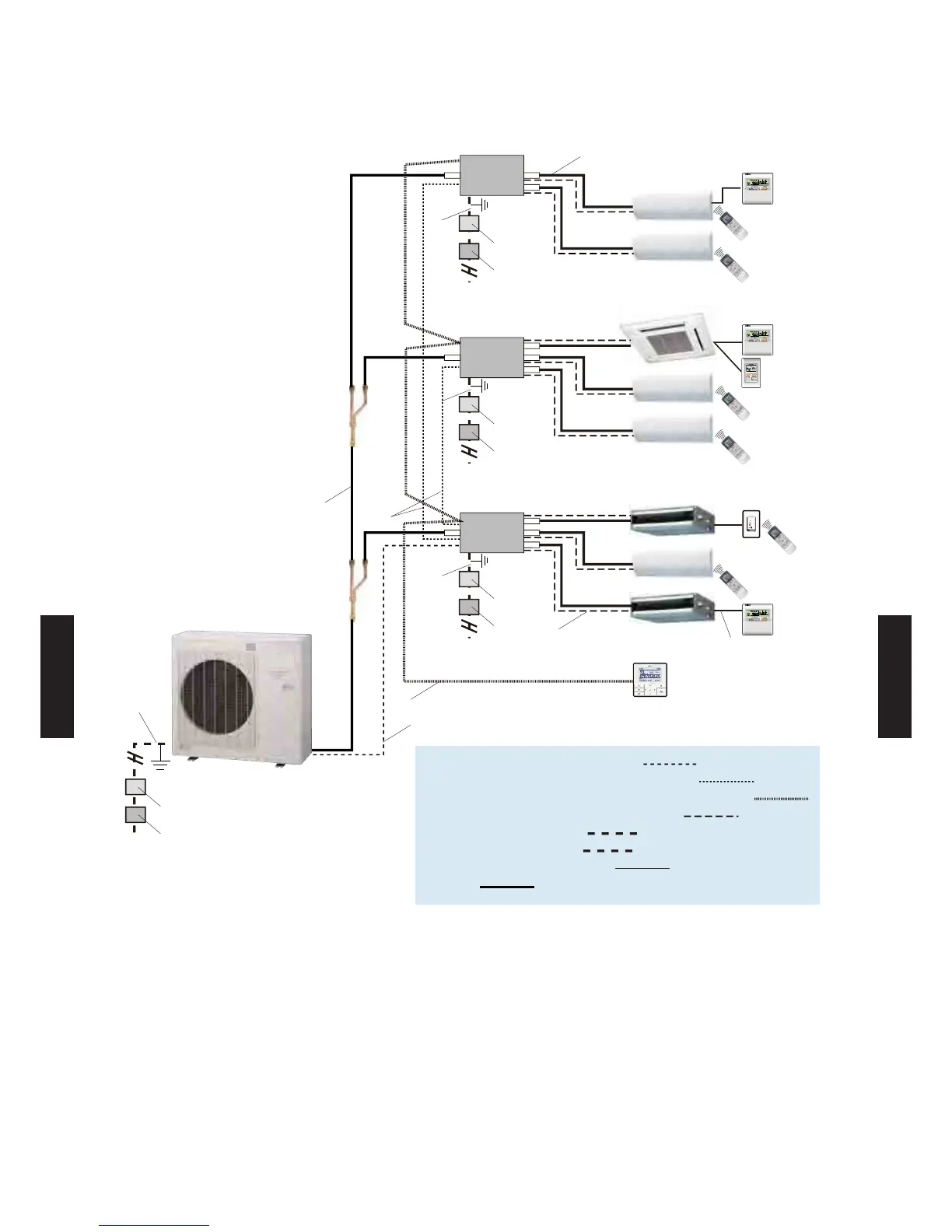

SYSTEM OUTLINE1-1.







: Transmission line [O.U. - B.B.(primary)] ( )

: Transmission line [B.B.(primary) - B.B.(secondary)] ( )

: Central remote controller line [Central remote controller - B.B.] ( )

: Power supply and Transmission line [B.B. - I.U.] ( )

: Power supply [Outdoor Unit] ( )

: Power supply [Branch Box] ( )

: Remote controller line [I.U. - R.C.] ( )

: Piping ( )

Outdoor unit
Indoor units
Branch box 1
(Primary)
Central
remote
controller
Branch box 2
(Secondary)
Branch box 3
(Secondary)

Earth leakage
breaker
Power
supply
Circuit breaker
(over current)

Earth leakage
breaker
Power
supply
Circuit breaker
(over current)

Earth leakage
breaker
Power
supply
Circuit breaker
(over current)

Power
supply
Earth leakage
breaker
Circuit breaker
(over current)
- (06 - 01) -
