EASY INSTALLATION1-3.
EASY INSTALLATION


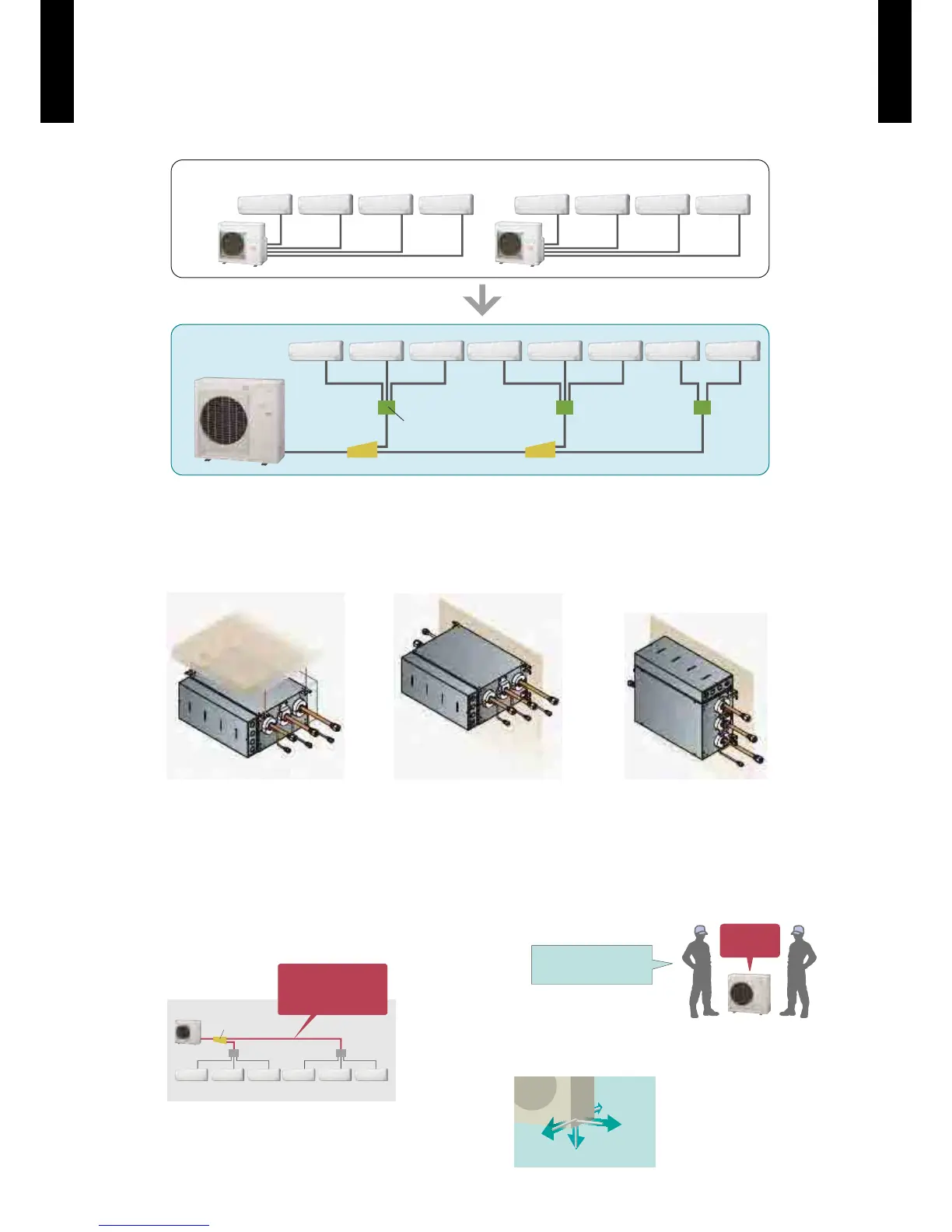

Corresponding to diverse installation environments by use of branch connection system.
Current model : 4 Rooms multi x 2
New model
Branch box
BRANCH BOX

Allowed branch box mounting direction

Ceiling suspension Horizontal wall mounted Vertical wall mounted
By reversing the control box
position you can orient the
inlet and outlet pipes into
a left hand or right hand
nin.
By reversing the control box
position you can orient the
inlet and outlet pipes into
a left hand or right hand
nin.
You cannot reverse the
control box position when
mounting the branch box
vertically.
COMMON MAIN PIPE

DIAMETER
Common main pipe diameter improves
piping workability.
CommonCommon
Liquid :
Ø 9.52mm
Gas : Ø 15.88mm
Separation tube
Lightening of outdoor unit

Easier to carry and install.
98kg
WeightWeight
Can be carried
by 2 people
4-way piping connection

 iin iin
connection is possible.
The perfect route can
be selected according
to the installation.
Back
Bottom
Right
Front
