5. CONTROL SYSTEM

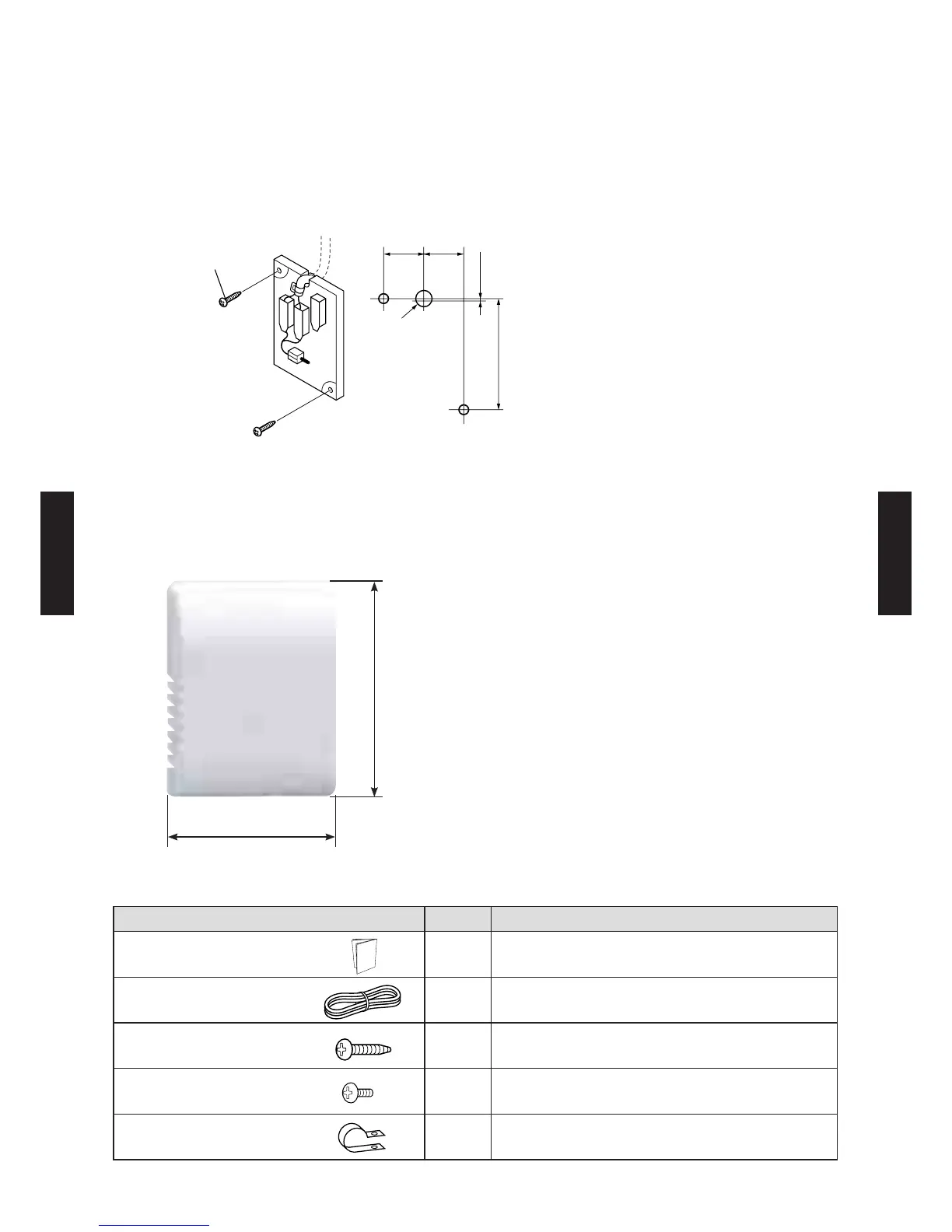

When the cable is buried in the wall
Remove the material (thinner than the surrounding material) in the wiring hole in the remote
sensor using a pair of cutters.
Drill a hole in the wall for the cable.
Seal the area around the cable penetration with putty.
20
ø6 - ø10
20
55
1
Screw
(M4 x 16mm)
Mounting hole dimensions
[Unit : mm]
Finish
Fit the cover on the remote sensor and screw it in place.
DIMENSIONS
55.2
70.2
PACKING LIST
Name and shape Quantity
Application
Installation manual
1
Cable (10m)
1
Screw
(M4 x 16mm)
2
Screw
(M4 x 10mm)
2
Cord clamp
1
