6. SYSTEM DESIGN
EXTERNAL OUTPUT7-1-2.
ERROR STATUS OUTPUT

An air conditioner error status signal is produced when a malfunction occurs.

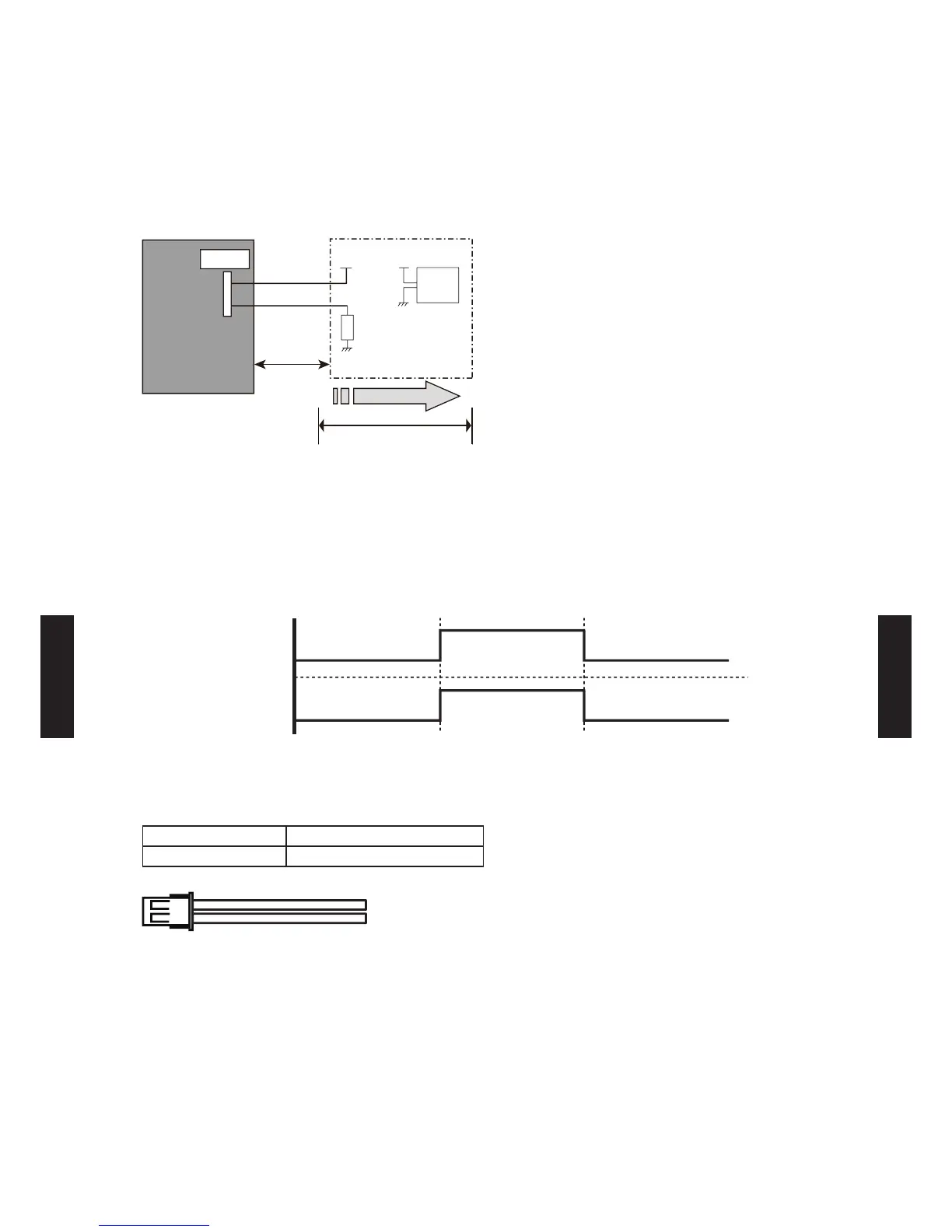

Circuit diagram example

* Make the distance from the PC board to the connected unit within 10 m.
1) Power supply
Voltage(Chart sign=Vcc): DC 24 V or less

2) Load
Load: DC 500 mA or less is recommended

Error
Normal
ON
OFF
Error status
Output signal
Parts (Optional)

Parts name External connect kit
Model name UTY-XWZ X Z3
Signal
Outdoor unit
control PC board
Connected unit
Connector
1
2
Field supply
*10 m
Vcc
+
+
-
Load
Vcc
Power
supply
