CENTRAL DRAIN PROCESS


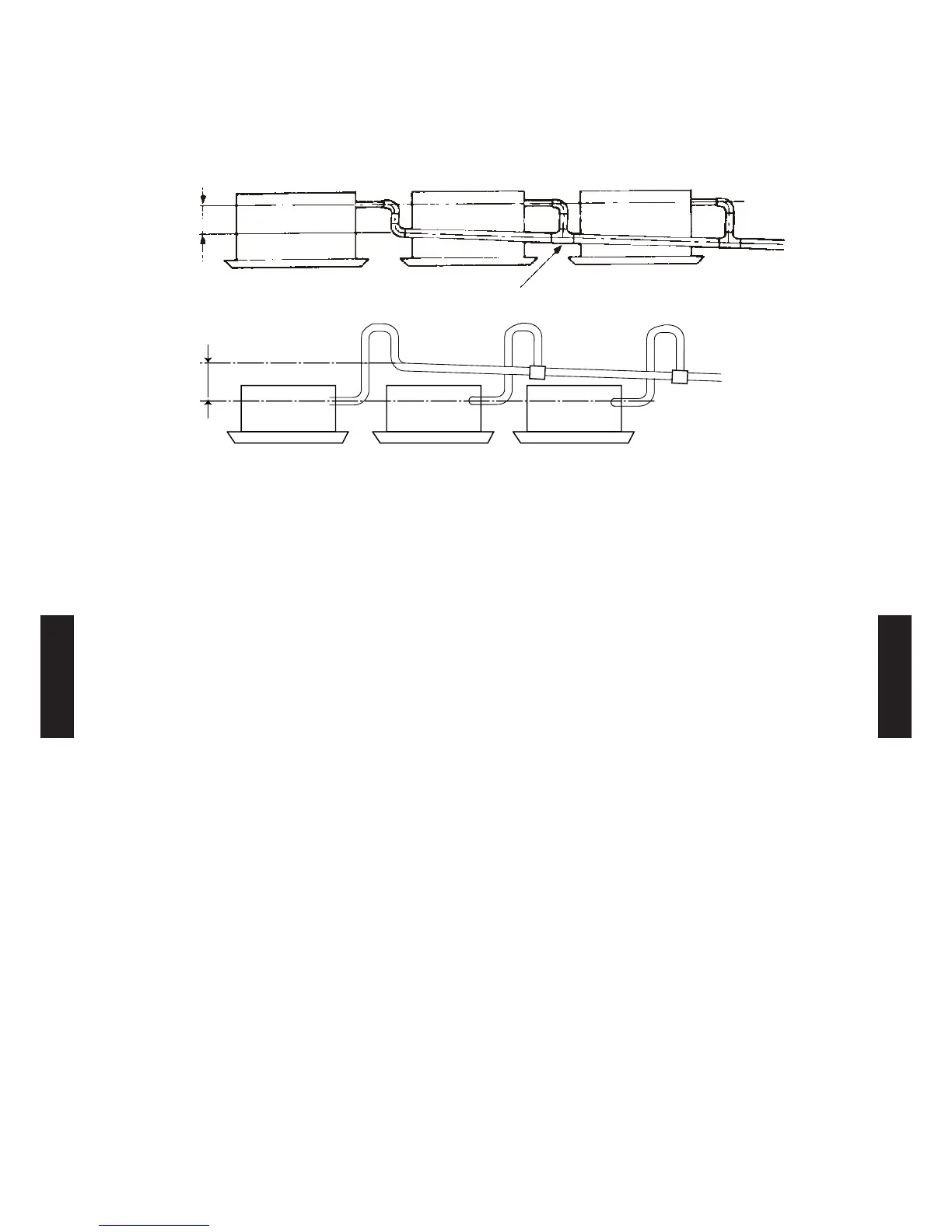

When converging multiple drain pipes , install according to the procedure shown below.
100 mm or more
T-joint converging drain pipes
100 mm or more
Select converging drain pipes whose diameter is suitable for the operating capacity of the unit.
