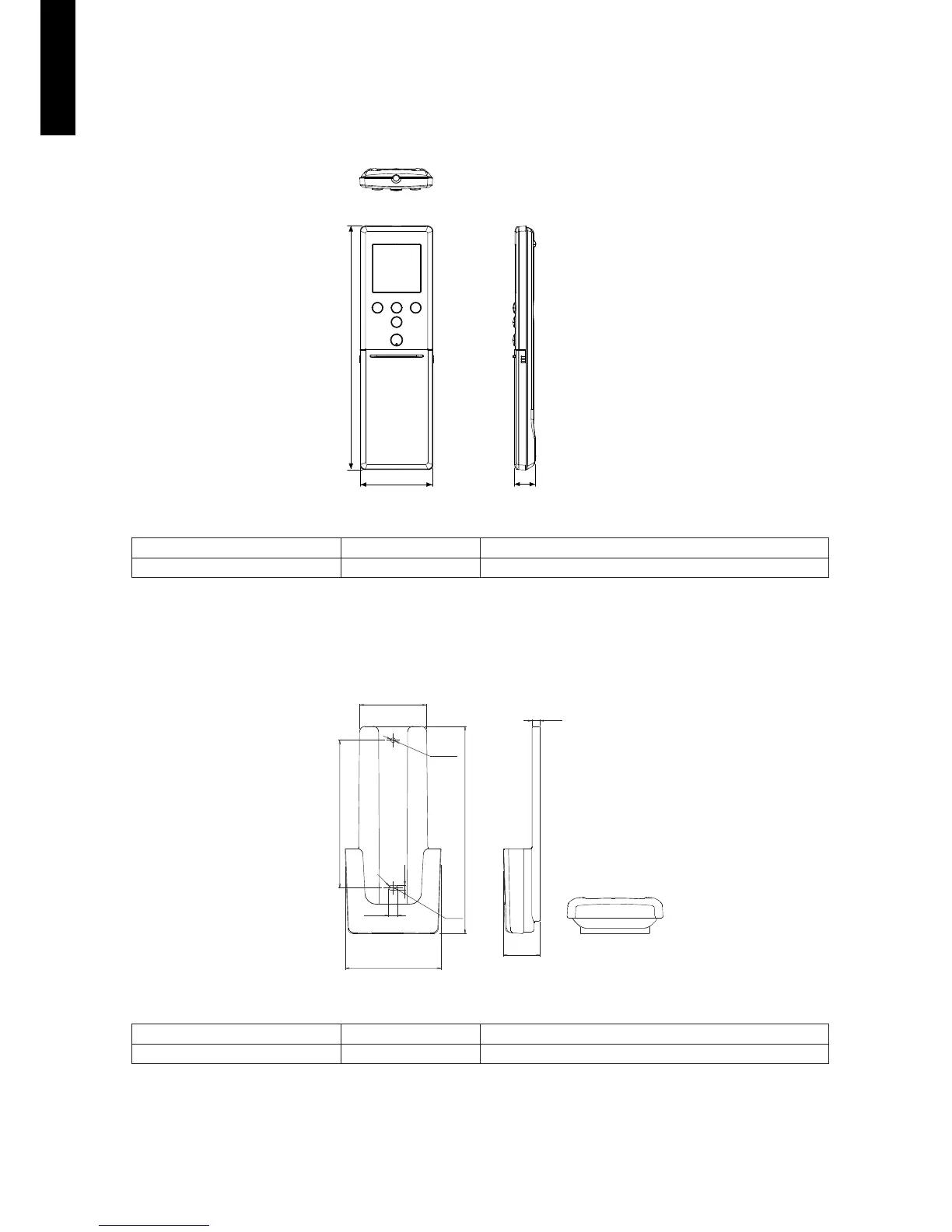

Specifications
 Controller
Unit: mm
Top view
Front view Side view
205
1761
Size (H × W × D) mm 205 × 61 × 17
Weight g 122 (without batteries)
 Holder
Unit: mm
48.5
5.5
26.2
69.3
6.5
Front View Side View
Bottom View
Ø 3.5
(Hole)
150
106.8
Hole
3.5
2-R
Size (H × W × D) mm 150 × 69.3 × 26.2
Weight g 27
