10. Remote controller
10-1. Wireless remote controller
¢

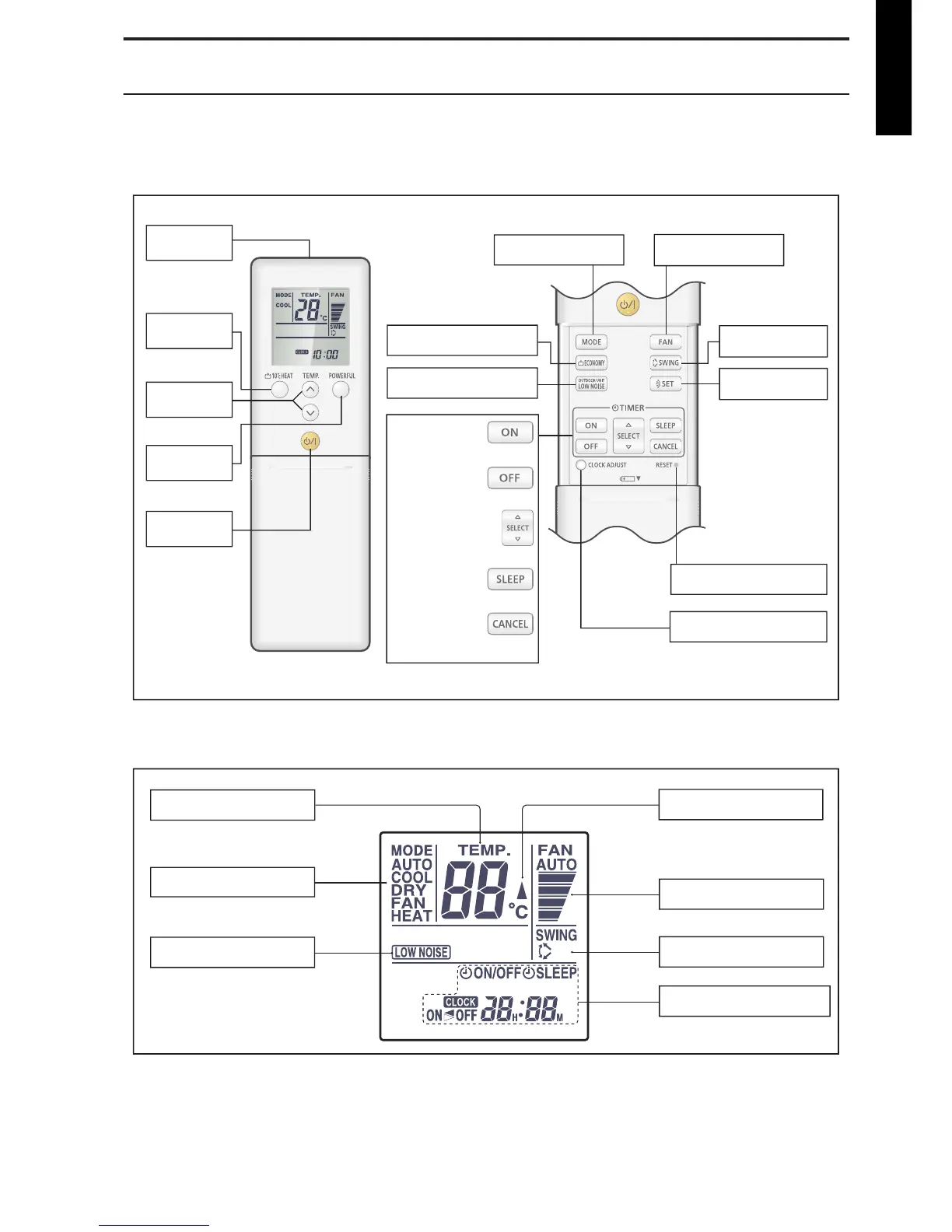

Overview
Signal
transmitter
TEMP.
button
POWERFUL
button
10°C HEAT
button
Start/Stop
button
FAN button
SWING button
SET button
MODE button
RESET button
CLOCK ADJUST button
ECONOMY button
OUTDOOR UNIT
LOW NOISE button
ON TIMER button
OFF TIMER button
TIMER SELECT button
SLEEP TIMER button
TIMER CANCEL button
NOTE: Functions may differ by type of the indoor unit. For details, refer to the operation manual.
Display panel
Mode indicator
Clock and Timer indicator
LOW NOISE mode
indicator
Transmit indicator
Temperature indicator
Fan speed indicator
Swing indicator
To facilitate explanation, the accompanying illustration has been drawn to show all possible indica-
tors; in actual operation, however, the display will only show those indicators appropriate to the cur-
rent operation.
- 27 -
WALL MOUNTED ASYG07-14KMTA
