2. Dimensions
2-1. Models: ASYG07KMTA, ASYG09KMTA, ASYG12KMTA,
and ASYG14KMTA
Unit: mm
(834)

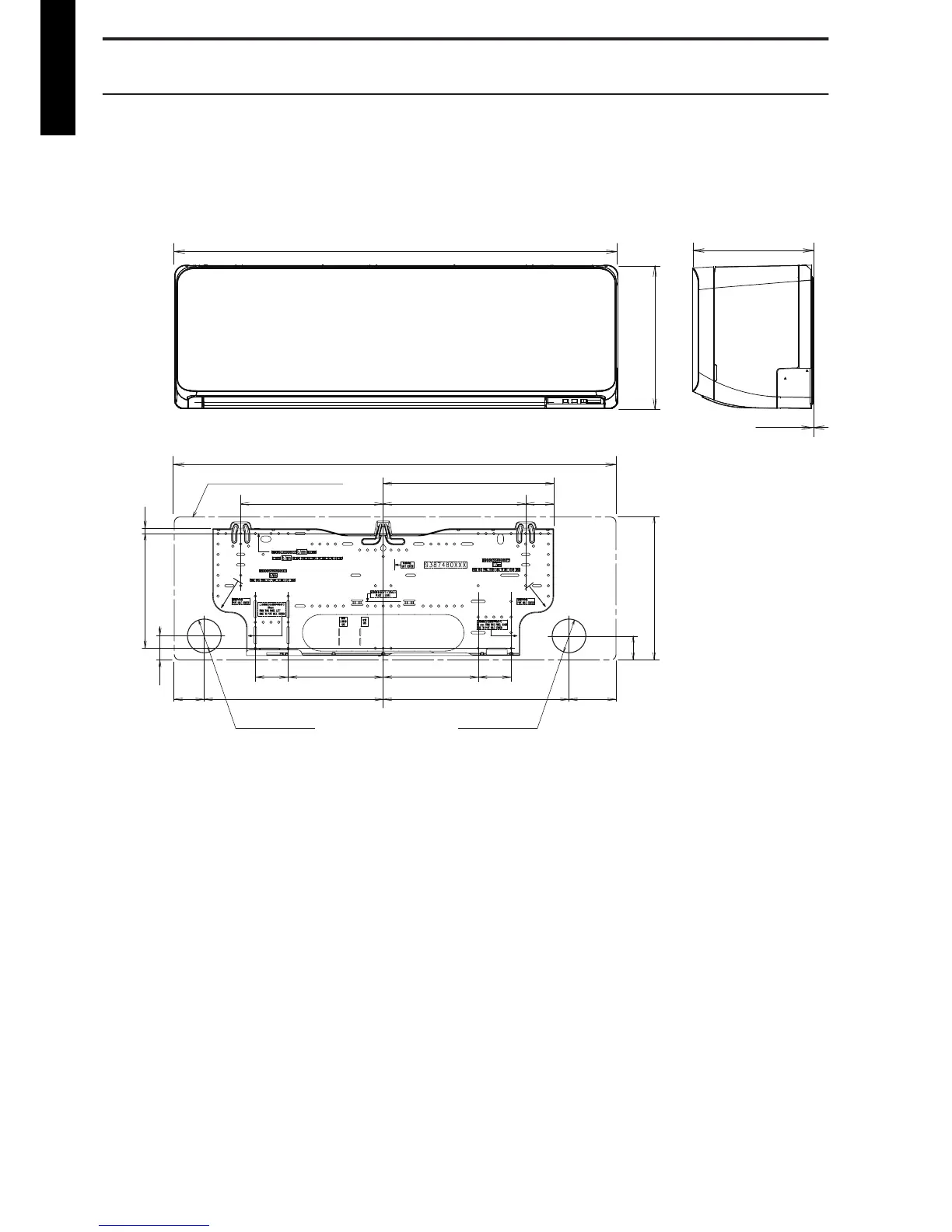

Outline of indoor unit
327
273
273 54
(270)
43
43
9.5220
for pipe inlet Ø65 for pipe inlet Ø65
182 182
35634648 84
63 63
834
270
222
3.0
DESIGN & TECHNICAL MANUAL
- 4 -
WALL MOUNTED
ASYG07-14KMTA
