WALL MOUNTED ASYG30, 36LMTA

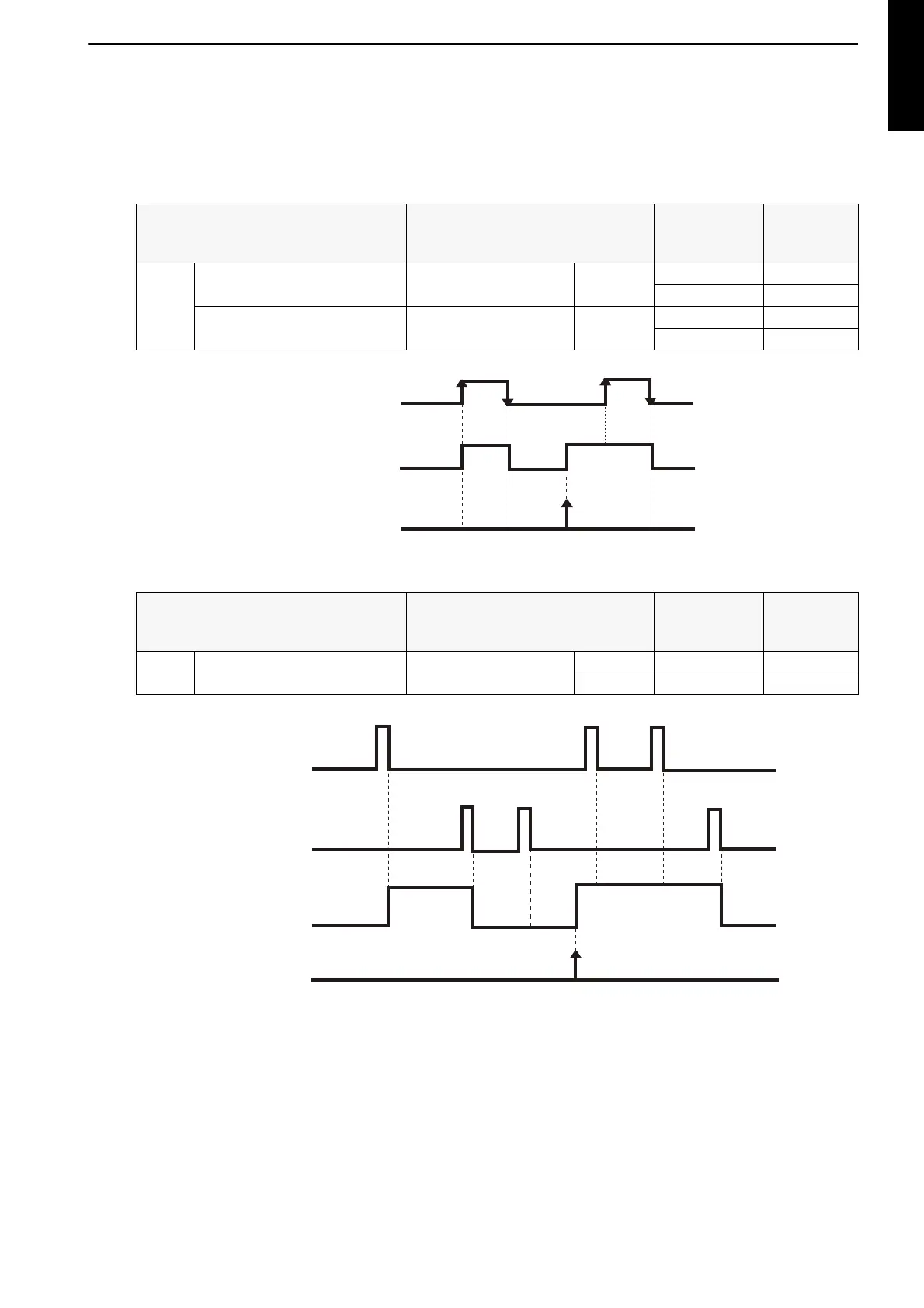

10-4. Details of function
 Control input function
 When function setting is "Operation/Stop" mode 1
• In the case of "Edge" input
• In the case of "Pulse" input
NOTES:
• The last command has priority.
• The indoor units within the same remote controller group operates in the same mode.
• This function is invalid when function setting 96 is set to “02” (Secondary unit).
Function
setting /
Rotary SW on
External input and
output PCB
External input Input signal Command
46-00
- Input of indoor unit CN2
Off → On Operation
On → Off Stop
60-00 / 1
External input and
output PCB
CN313
Off → On Operation
On → Off Stop
Function
setting /
Rotary SW on
External input and
output PCB
External input Input signal Command
46-00 60-00 / 1
External input and
output PCB
CN313 Pulse Operation
CN314 Pulse Stop
Operation
Stop
Remote controller
On
Off
Indoor unit
On
CN313
On
On
Off
Operation
Stop
Remote controller
On
Off
Indoor unit
CN313
CN314
