WALL MOUNTED ASYG30, 36LMTA

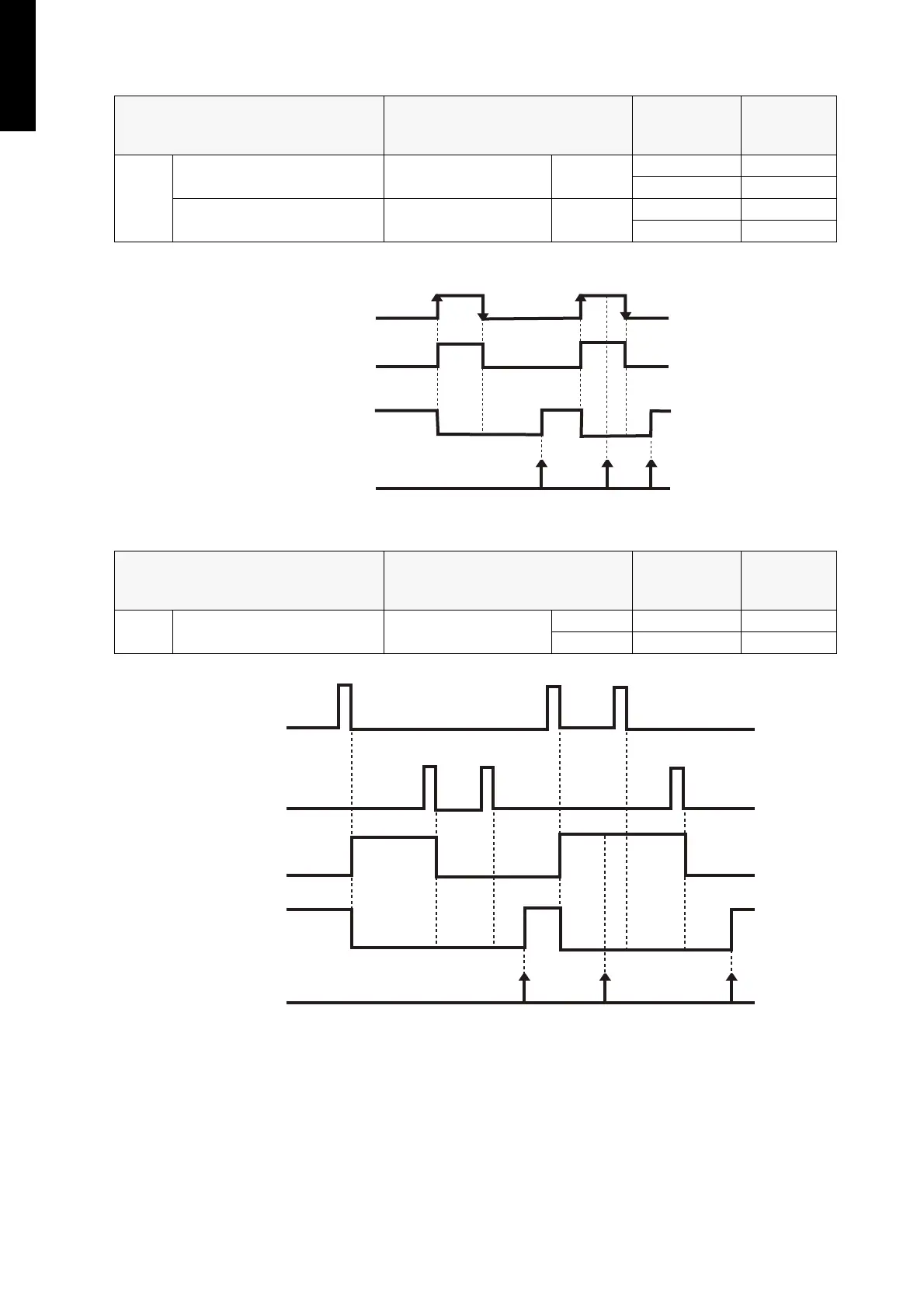

 When function setting is "Forced stop" mode
• In the case of "Edge" input
• In the case of "Pulse" input
NOTES:
• When the forced stop is triggered, indoor unit stops and Operation/Stop operation by the remote
controller is restricted.
• When forced stop function is used with forming a remote controller group, connect the same
equipment to each indoor unit within the group.
• This function is invalid when function setting 96 is set to “02” (Secondary unit).
Function
setting /
Rotary SW on
External input and
output PCB
External input Input signal Command
46-02
- Input of indoor unit CN2
Off → On Forced stop
On → Off Normal
60-00 / 1
External input and
output PCB
CN313
Off → On Forced stop
On → Off Normal
Function
setting /
Rotary SW on
External input and
output PCB
External input Input signal Command
46-02 60-00 / 1
External input and
output PCB
CN313 Pulse Forced stop
CN314 Pulse Normal
On
Off
Forced stop
Normal
Operation
Stop
Remote controller
On On
Indoor unit
On
CN313
On
Off
Operation
Stop
Remote controller
On
Off
Forced stop
Normal
CN313
CN314
On On On
Indoorunit
