10-38

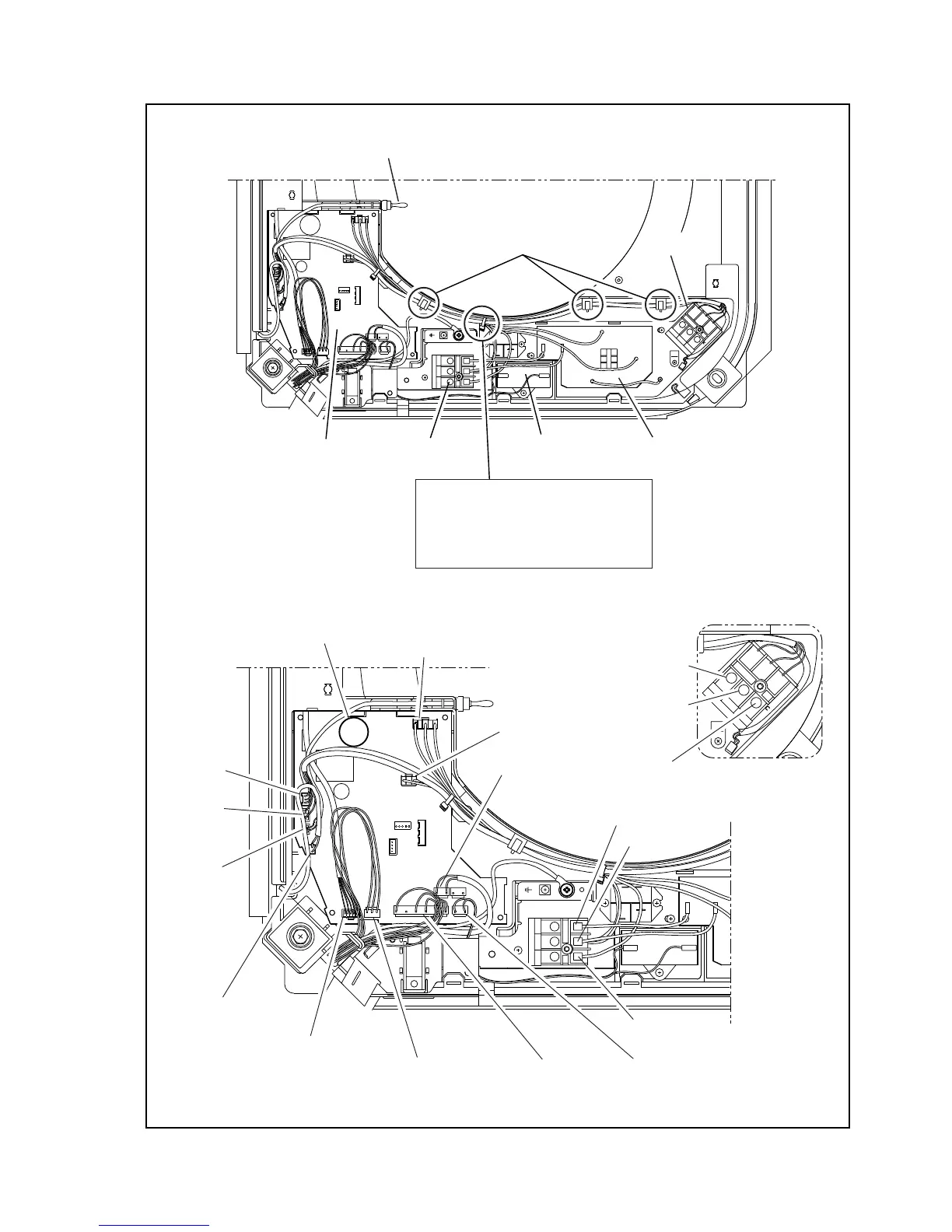

4. Wiring and Parts layout
BIND
(Wire with connector (For Terminal))
(Wire with connector (For Fuse in Terminal))
(PWB wire (For Power Supply PCB))
(Wire with connector (For Float SW))
(Wire with connector (For Remocon))
Thermistor(Room temp.)
Capacitor,Plastic
Power Supply PCBController PCB
Terminal-3P
CN17
(Remocon)
CN15
(Float SW)
CN8
Thermistor
(Room temp.)
CN7
Thermistor
(Heat Exchanger temp.)
CN10
(Stepping motor)
CN5
(FAN MOTOR)
CN16
(MOTOR Feed Back)
CN4
(Capacitor)
CN6
(Drain Pump)
CN3
(Fuse in Terminal)
CN1
(Power Supply PCB)
BLACK
WHITE
RED
Detail View
Detail View
Terminal-3P
HOOK
BLACK
WHITE
RED
Capacitor,elec (For AU*36/ 45/ 54LUAS)
(The wire must not pass the upper part
of Capacitor,elec.)
To Next Page
