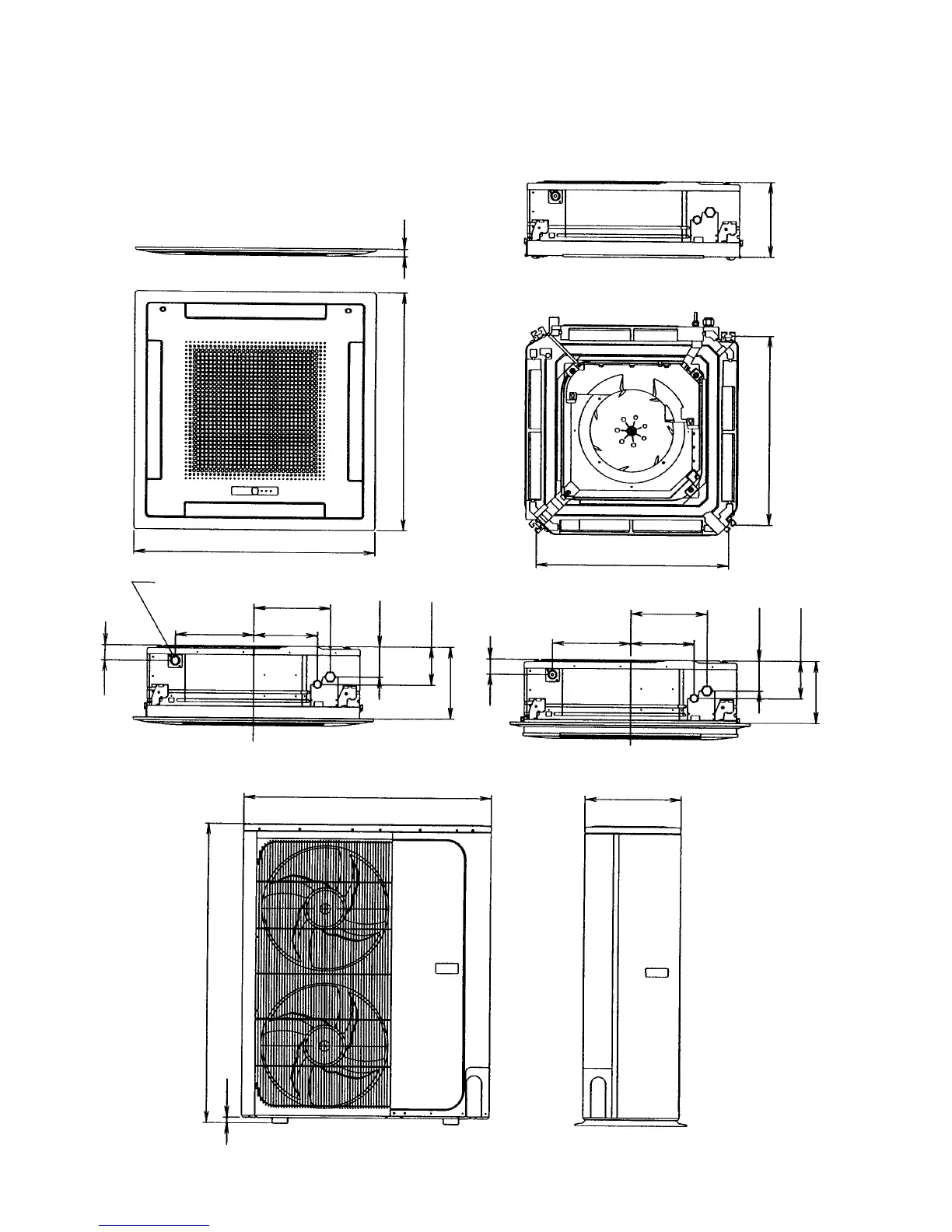

Fujitsu AUT36ALA3W - Dimensions

– 2 –
Unit : mm
30
296
750
940
1152
23
60
(Drain pipe)
120
(Large pipe)
150 (Small pipe)
285
250
940
298.5
305.5
940
370
248.5
60
(Drain pipe)
120
(Large pipe) 150 (Small pipe)
298.5
305.5 248.5
Drain Inside Dia. ø32
Outside Dia. ø37
750
DIMENSIONS
