Models : AUT36ALA3W / AOT36ACF3L
– 5 –

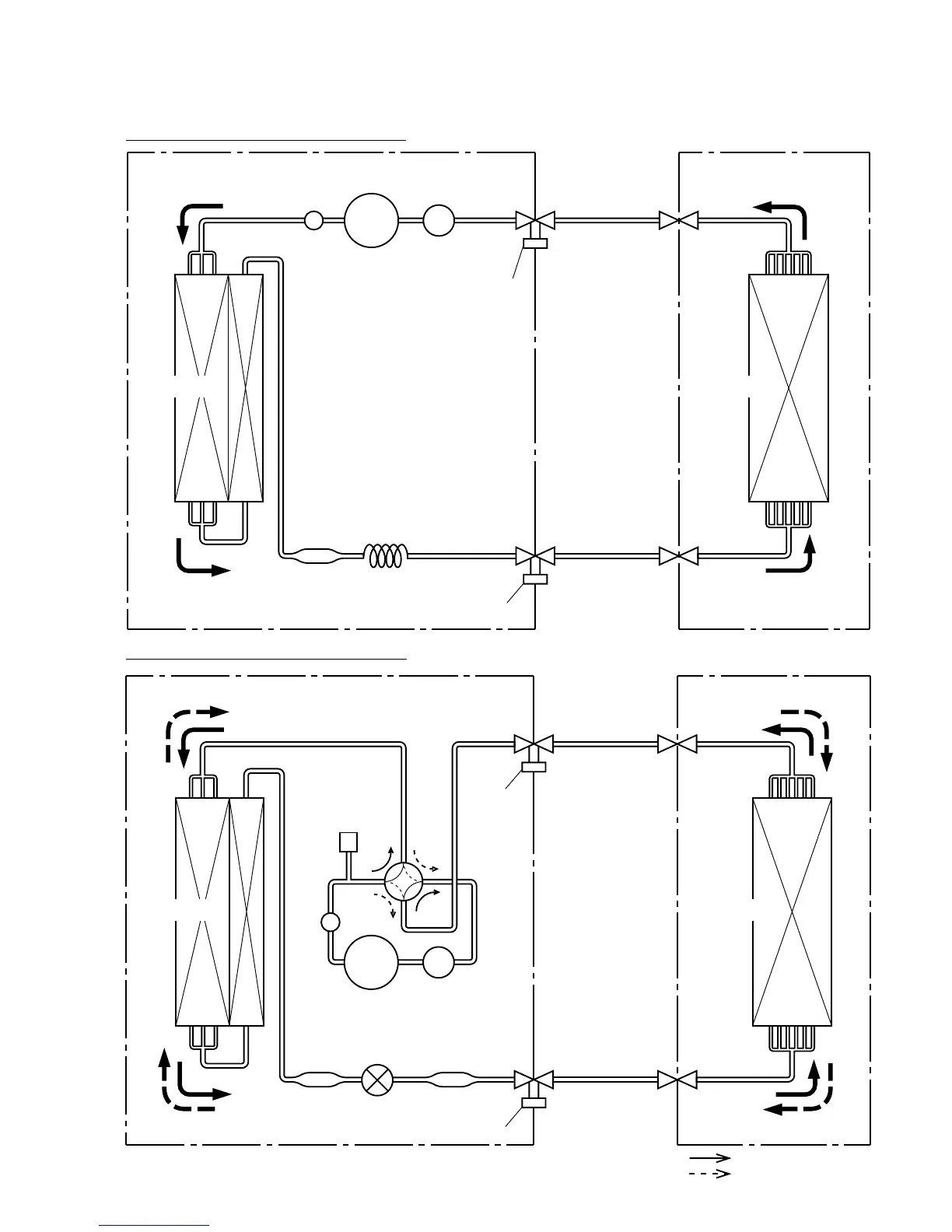

REFRIGERANT SYSTEM DIAGRAM
Refrigerant pipe
ø 19.05mm(3/4")
Refrigerant pipe
ø 9.53mm(3/8")
CAPILLARY TUBE
Charging valve
MUFFLER
COMPRESSOR
ACCUMULATOR
Charging valve
DRYER
OUTDOOR UNIT INDOOR UNIT
EVAPORATORCONDENSER
Models : AUT36RLA3W / AOT36RCF3L
Refrigerant pipe
ø 19.05mm(3/4")
Refrigerant pipe
ø 9.53mm(3/8")
: COOL
: HEAT
Charging
valve
MUFFLER
COMPRESSOR
4-Way
Valve
ACCUMULATOR
Charging valve
DRYER
EXPANSION
VALVE
STRAINER
OUTDOOR UNIT INDOOR UNIT
EVAPORATORCONDENSER
HIGH
PRESSURE
SWITCH
