Fujitsu AUXB12GA* H User Manual

1-2 Check Items Before Power ON
01-03
Check Item Check contents Judgement Present Status
Ref. circuit name: _________________
Power
Source
Outdoor
Unit
Power supply 3 / 4W / (342 - 456V) / 50Hz
Circuit Breaker Size (A)
For AJ* 072L : 20A
For AJ* 090/ 108L : 25A
For AJ* 126/ 144/ 162L : 40A
Master (AJ* ____L) :_____(A)
Slave-1(AJ* ____L) :_____(A)
Slave-2(AJ* ____L) :_____(A)
Leakage current : 100mA, 0.1 sec or less
Yes / No
Power Line Wire Size (mm
2
)
Check the breaker capacity vs. wire size
20A=4mm
2
, 25A=6mm
2
, 40A=10mm
2
,
60A=16mm
2
, 80A=22mm
2
, 100A=38mm
2
Master : ______ (mm
2
)
Slave- 1: ______ (mm
2
)
Slave- 2: ______ (mm
2
)
Power line Wiring
Note: One Outdoor Unit must have
one individual Circuit Breaker
Example :
Complied
Not complied
* Japanese Standard
* Note: Regulation of wire size and circuit breaker differs from each locality, please refers in accordance with local rule
Check Item Check contents Judgement Present Status
Ref. circuit name: _________________
Power
Source
Indoor
Unit
Power supply
1 / (198 - 264V) / 50Hz
Circuit Breaker Size (A)
(Check, Leakage current vs.
number of IUs)
20A breaker for one circuit
Leakage current as follows:
No. of units vs. leakage current:
30mA for 12 nos. (IUs)
100mA for 40 nos. (IUs)
200mA for 81 nos. (IUs)
300mA for 122 nos. (IUs)
Note:
MCA for total connected units (IU) less
than 15A for 20A breaker capacity
MCA means, minimum circuit ampere
Circuit number -1
Breaker capa city: _______ (A)
Nos. of Connected units: ______ (IU)
Circuit number -2
Breaker capa city: ______ (A)
Nos. of connected units: _______ (IU)
Circuit number -3
Breaker capa city: _______ (A)
Nos. of Connected
units: _______ (IU)
Power line wire size (mm
2
)
Wire size 2.5mm
2
(for 20A breaker)
________ (mm
2
)
Power line wiring
Example for one circuit
Complied
Not complied
* Note: Regulation of wire size and circuit breaker differs from each locality, please refers in accordance with local rule

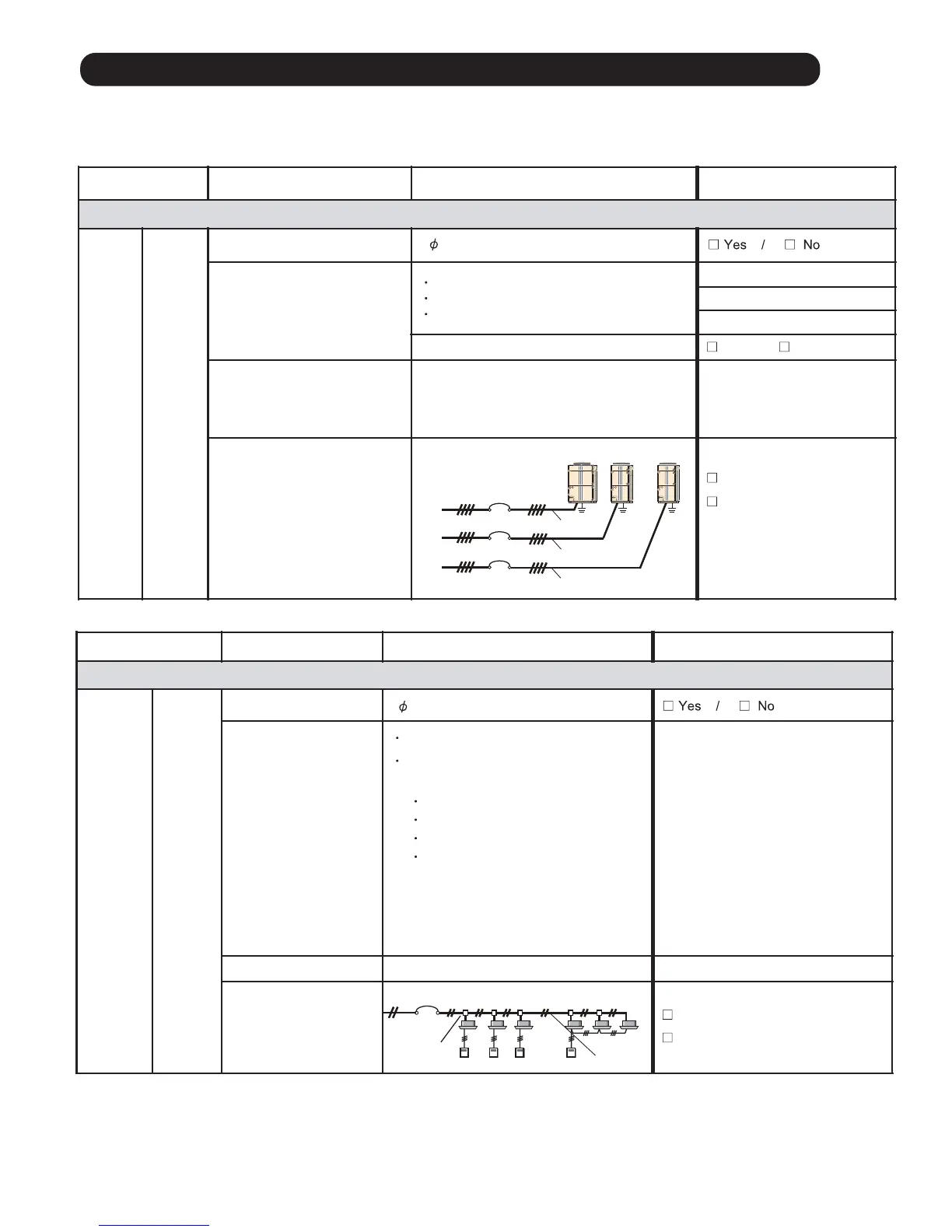

1-2-1 Power source Inspection sheet
Outdoor units
AJY072 AJY072AJY126
Sub Breaker
Sub Breaker
Sub Breaker
40A
20A
20A
Power cable
10mm
2
Power cable
4mm
2
Power cable
4mm
2
Sub Breaker
Terminal board
20A
Power cable
2.5mm
2
Indoor
units
