Fujitsu AUXG09KVLA User Manual

¢
Model: AUXG12KVLA (3-way air outlet)
Measuring conditions
Fan speed Operation mode Ceiling mode
HIGH FAN STANDARD

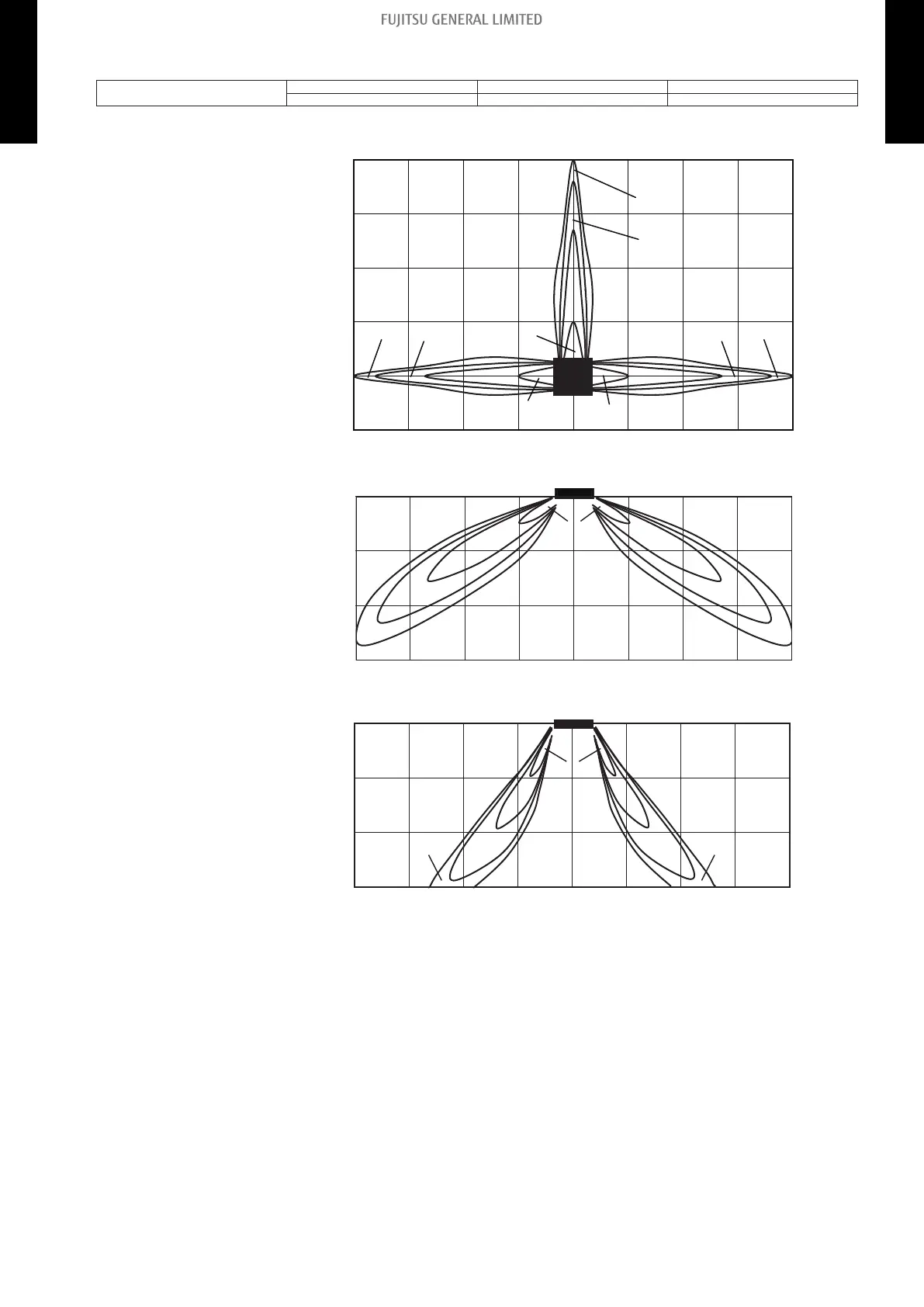

Top view
Vertical airflow direction louver: Upward
4
3
2
1
0
Unit: m/s(m)
(m)
4 3 2 1 0 1 2 3 4
2
0.5 0.5
1 1
2
0.25
2
1
0.5
0.25 0.25
Side view
Vertical airflow direction louver: Upward
3
2
1
0
Unit: m/s(m)
(m)
4 3 2 1 0 1 2 3 4
0.25 0.25
0.5 0.5
1 1
2
Side view
Vertical airflow direction louver: Downward
3
2
1
0
Unit: m/s(m)
(m)
4 3 2 1 0 1 2 3 4
0.25 0.25
0.5 0.5
2
1 1
- 16 -
5-1. Air velocity distributions 5. Fan performance
CASSETTE TYPE AUXG09-22KVLA CASSETTE TYPE AUXG09-22KVLA
