Fujitsu AUXG09KVLA User Manual

¢
Model: AOYG22KATA
 Cooling
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-25
NC-20
NC-15
NC-30
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
 Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-25
NC-20
NC-15
NC-30
9-2. Sound level check point
1 m
MicrophoneMicrophone
Rear
Airflow
Rear view
Side view
NOTE:
Detailed shape of the actual outdoor unit might be slightly different from the one illustrated
above.
- 75 -

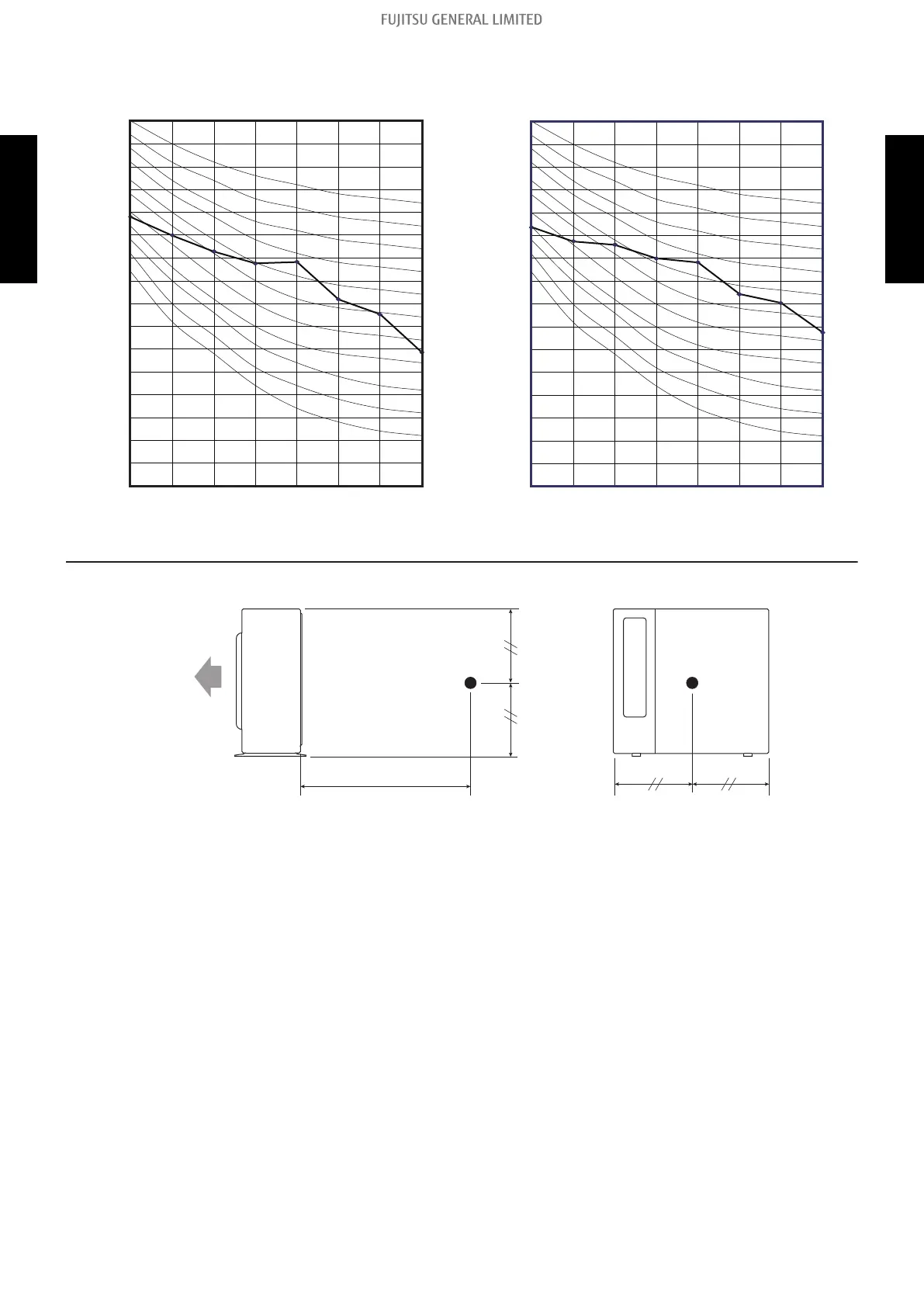

9-1. Noise level curve 9. Operation noise (sound pressure)
OUTDOOR UNIT AOYG09-22KATA OUTDOOR UNIT AOYG09-22KATA
