6 - English Installing/removing the
processor
Procedure
The processor socket is c overed with a protective c ap to protect the spring
contacts In the event of a warranty case, the mainboard can only be taken back
by Fujitsu Technology Solutions with the protective cap secured!
a
b
► Remove the heat sink.
► Press down the lever a nd unhook it.
► Fold up the frame.
► Remove the protective cap and keep it.

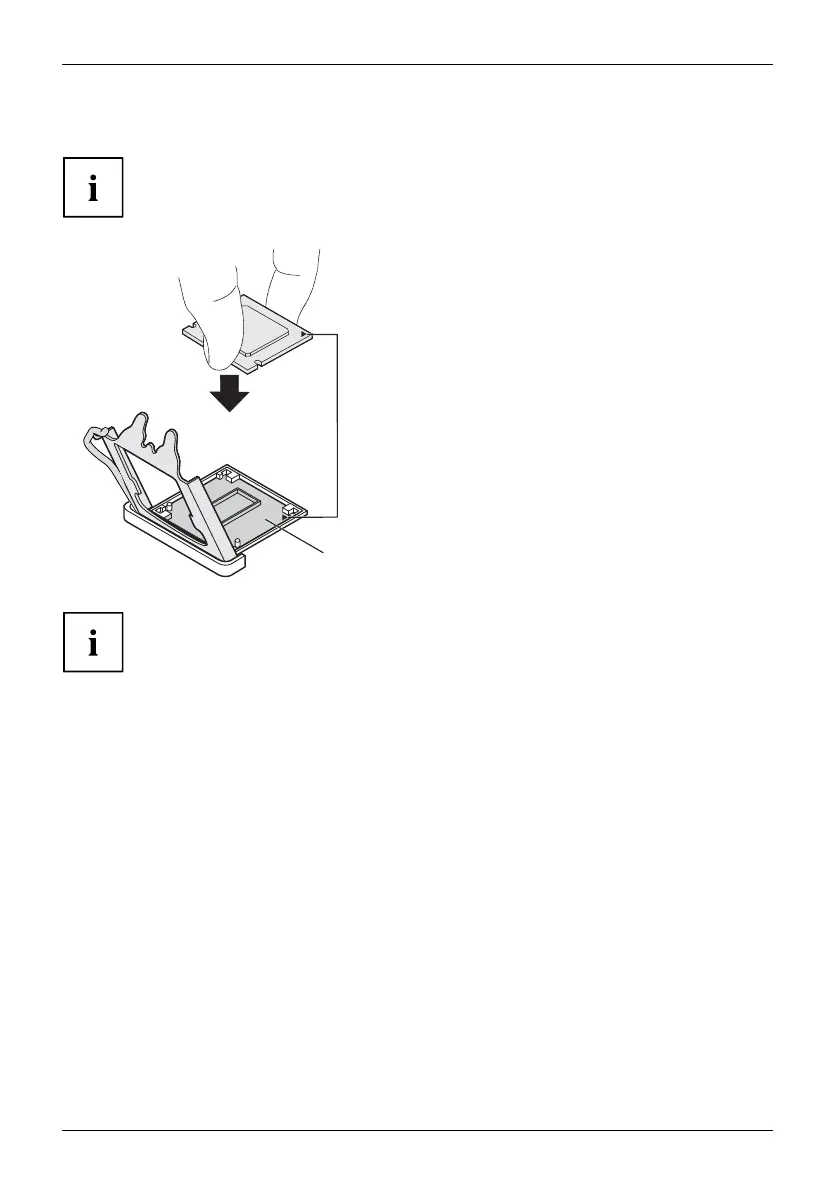

► Hold the processor between you r thumb
and index finge r and insert it into the socket
(b) so that the marking of the processor is
aligned with the marking on the socket (a).
► Press the lever downward until it is
hooked in again.
Please note that, depending on the heat sink used, different heat sink
mounts are required on the mainboard.
► Depending on the configuration variant, you must p ull a protective foil off the heat sink
or coat the heat sink with heat conducting paste before fitting it.
► Secure the heat sink - depending on t he model - with four screws or push it into the mounts.
22 Fujitsu
